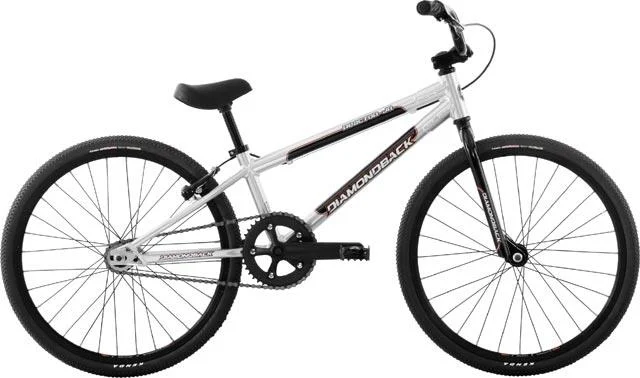

2008 Diamondback Reactor Jr.
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $325.00
- Sizes
- 18.75" top tube
- Colors
- Silver Metallic
- Archive ID
- 24070
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | 7005 aluminum |
|---|
| Fork | Diamondback |
|---|
| Fork Material | Chromoly, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | BMX Mix |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | 165mm forged aluminum 3-piece, 40 teeth |
|---|
| Bottom Bracket | Euro sealed-bearing |
|---|
| Rear Cogs | 1-speed, 15 teeth |
|---|
| Chain | KMC, 1/2 x 3/32" |
|---|
| Pedals | Alloy body/cage |
|---|
Brakes
| Brakes | Tektro mini-linear brakes, Tektro levers |
|---|
Cockpit & Contact Points
| Headset | 1" threadless FSA |
|---|
| Handlebar | 6061 aluminum riser |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Jr. BMX Race |
|---|
| Saddle | DB Puny Seat |
|---|
| Seatpost | Aluminum integrated, 22.2mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Sealed bearing alloy 3/8" axle, Rear: Aluminum cassette |
|---|
| Rims | Sun ICI-1, 28-hole |
|---|
| Spokes | 14ga. (2.0mm) straight gauge |
|---|
| Front Tire | 20 x 1 3/8" Kenda Small Block Eight |
|---|
| Wheel Size | 20" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
