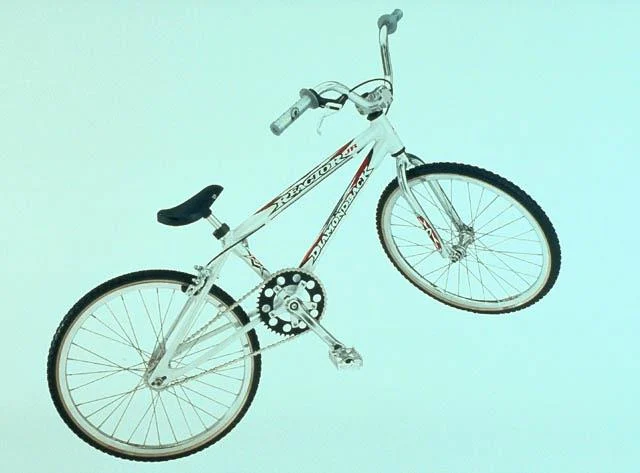

2004 Diamondback Reactor Jr
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $320.00
- Sizes
- 20"
- Colors
- Super Nickel
- Archive ID
- 31722
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum |
| Fork | RMX Junior |
| Fork Material | CRMO, single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | N/A |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Forged alloy, 42 teeth |
| Bottom Bracket | Sealed, tapered spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z610, 1/2 x 3/32" |
| Pedals | Aluminum platform |
Brakes
| Brakes | Tektro alloy rear brakes, Tektro rear levers |
|---|
Cockpit & Contact Points
| Headset | 1" FSA |
|---|---|
| Handlebar | Jr. Aluminum |
| Handlebar Extensions | N/A |
| Stem | RMX Jr. |
| Saddle | UniStyle, padded |
| Seatpost | Intergrated, 22.2mm diameter |
Wheels & Tires
| Hubs | Sealed mechanism, low flange |
|---|---|
| Rims | Alex R390, 24-hole/28-hole |
| Front Tire | 20 x 1 3/8" Tioga Comp III |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
