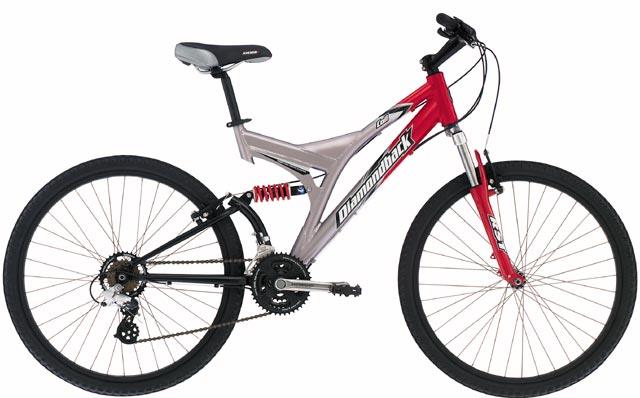

2003 Diamondback Coil
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $329.99
- Sizes
- 16", 18", 20"
- Colors
- Rattleblack Red
- Archive ID
- 39437
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum |
| Fork | RST Gila TL, 89mm travel |
| Fork Material | Aluminum, single crown |
| Rear Shock | X-Fusion Coil Over w/rebound adj, 100mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Acera EF29 |
| Front Derailleur | Shimano FD-C051, dual-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano RD-M340 |
| Crankset | Shimano FC-C051, 22/32/42 teeth |
| Bottom Bracket | Sealed cartridge, 111mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 13 - 34 teeth |
| Chain | 1/2 x 3/32" |
| Pedals | Resin |
Brakes
| Brakes | Aluminum linear-pull brakes, Shimano Acera levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Tien Hsin ZST |
|---|---|
| Handlebar | Aluminum, 1" rise |
| Handlebar Extensions | Not included |
| Stem | Aluminum |
| Saddle | Avenir ATB SS |
| Seatpost | Aluminum micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Aluminum |
|---|---|
| Rims | Aluminum, 32-hole |
| Spokes | Stainless steel |
| Front Tire | 26 x 2.10" Kenda ATB |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
