Velopedia Bicycle Archive

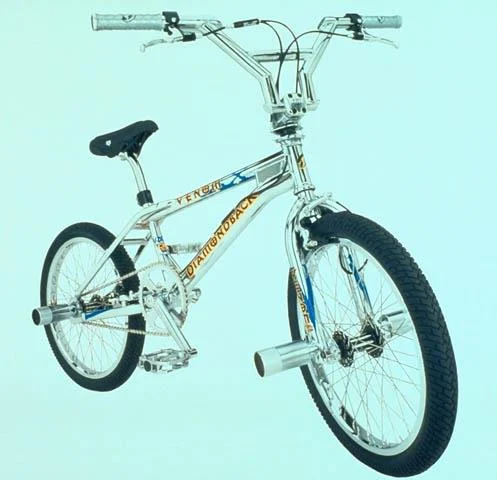

1999 Diamondback Venom XX
Freestyle/jumping bicycle from the Velopedia specification archive.
- Original MSRP
- $479.99
- Sizes
- Pro
- Colors
- Chrome-Plated
- Weight
- 36.5
- Archive ID
- 85622
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Chromoly |
|---|
| Fork | Diamondback |
|---|
| Fork Material | 4130 chromoly, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | N/A |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | 3-piece chromoly, 44 teeth |
|---|
| Bottom Bracket | Precision sealed |
|---|
| BB Shell Width | 68mm Threadless |
|---|
| Rear Cogs | 1-speed, 16 teeth |
|---|
| Chain | KMC 410, 1/2 x 1/8" |
|---|
| Pedals | Alloy platform |
|---|
Brakes
| Brakes | Dia-Compe 990 brakes, Dia-Compe Tech 99 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset w/SST Oryg detangler |
|---|
| Handlebar | Freestyle |
|---|
| Handlebar Extensions | N/A |
|---|
| Stem | Forged alloy |
|---|
| Saddle | Padded seat freestyle |
|---|
| Seatpost | Chromoly, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Alloy high flange |
|---|
| Rims | Alex CP double wall, 48-hole |
|---|
| Spokes | Shuhn Lih stainless steel, 2.0mm straight gauge |
|---|
| Spoke Nipples | Brass nipples |
|---|
| Front Tire | 20 x 1.95" freestyle |
|---|
| Wheel Size | 20" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
