Velopedia Bicycle Archive

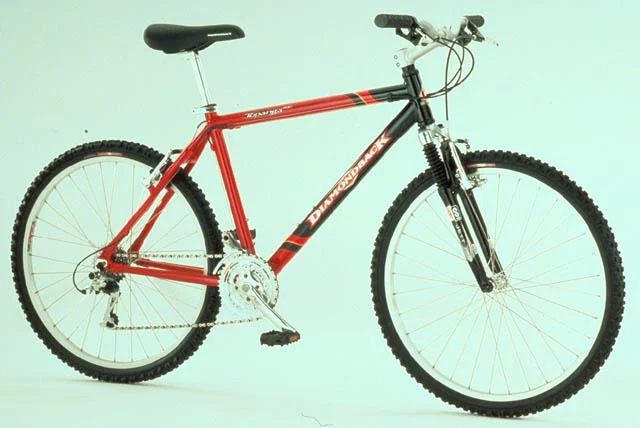

1999 Diamondback Topanga SE
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $499.99
- Sizes
- 14", 16", 18", 20", 22"
- Colors
- Cayman Blue, Rio Red/Onyx
- Weight
- 27.5
- Archive ID
- 86751
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum w/replaceable derailleur hanger |
| Fork | Rock Shox Jett C, 1.8" travel |
| Fork Material | Aluminum/magnesium, triple-clamp crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Alivio |
|---|---|
| Shifters | Shimano Alivio RapidFire SL |
| Front Derailleur | Shimano AceraX top-swing, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano AceraX, 22/32/42 teeth |
| Bottom Bracket | Shimano BB-LP27, 110mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | Shimano CN-IG51, 1/2 x 3/32" |
| Pedals | Wellgo LU-983D |
Brakes
| Brakes | Lee Chi ProMax linear-pull brakes, Lee Chi ProMax levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset STS |
|---|---|
| Handlebar | Lee Chi |
| Handlebar Extensions | N/A |
| Stem | JD aluminum |
| Saddle | Diamondback Sport |
| Seatpost | Aluminum micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Shimano AceraX, Rear: Shimano Alivio |
|---|---|
| Rims | Alex VP-20F, 32-hole |
| Spokes | Shuhn Lih stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | Front: 26 x 1.95" Kenda K-877, Rear: 26 x 1.95" Kenda K-887 |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
