Velopedia Bicycle Archive

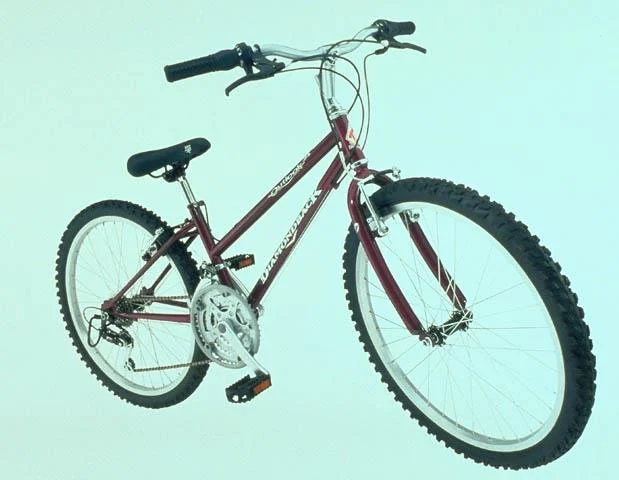

1999 Diamondback Outlook 24"
Juvenile mountain bike, non-suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $199.99
- Sizes
- Boys 11", boys 13.5", girls 11", girls 13.5"
- Colors
- Cayman Blue, Onyx (boys only), Wildberry (girls only)
- Weight
- 27.5
- Archive ID
- 83759
Current market
Checking current listings…Frameset
| Frame Construction | Welded |
|---|---|
| Frame Material | Hi-tensile steel |
| Fork | Diamondback |
| Fork Material | Hi-tensile steel, oversize, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Tourney TY-30 |
|---|---|
| Shifters | Grip Shift MRX-170 |
| Front Derailleur | Shimano Tourney TY-30, bottom-pull/clamp-on 28.6mm |
| Rear Derailleur | Shimano Tourney TY-30 |
| Crankset | Tracer MY-32, 28/38/48 teeth |
| Bottom Bracket | YST, 122.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 13 - 28 teeth |
| Chain | KMC Z-51, 1/2 x 3/32" |
| Pedals | Wellgo resin |
Brakes
| Brakes | Lee Chi ProMax linear-pull brakes, Lee Chi ProMax levers |
|---|
Cockpit & Contact Points
| Headset | 1" YST steel |
|---|---|
| Handlebar | Lee Chi |
| Handlebar Extensions | N/A |
| Stem | Lee Chi |
| Saddle | Diamondback MTB |
| Seatpost | Lee Chi, 26.0mm diameter |
Wheels & Tires
| Hubs | JY nutted |
|---|---|
| Rims | Kin Lin RT-6n, 36-hole |
| Spokes | Shuhn Lih steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 24 x 1.95" Kenda K-831 |
| Wheel Size | 24" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
