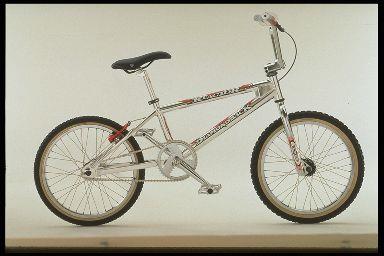

1998 Diamondback Reactor Team
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $600.00
- Sizes
- Pro XL
- Colors
- Ball-burnished
- Archive ID
- 70421
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | 7005 aluminum |
|---|
| Fork | Diamondback |
|---|
| Fork Material | Chromoly, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | N/A |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | Diamondback, 44 teeth |
|---|
| Bottom Bracket | Diamondback sealed bearing |
|---|
| BB Shell Width | American 24tpi |
|---|
| Rear Cogs | 1-speed, 16 teeth |
|---|
| Chain | Taya 400, 1/2 x 1/8" |
|---|
| Pedals | Platform, aluminum |
|---|
Brakes
| Brakes | Shimano DX BMX V-brake brakes, Shimano DX BMX levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset Kontak ST-2 |
|---|
| Handlebar | Diamondback chromoly |
|---|
| Handlebar Extensions | N/A |
|---|
| Stem | Diamondback aluminum |
|---|
| Saddle | Diamondback padded |
|---|
| Seatpost | 27.0mm diameter |
|---|
Wheels & Tires
| Hubs | Diamondback Slasher |
|---|
| Rims | Alex aluminum, 36-hole |
|---|
| Spokes | Chung Nan stainless steel, 2.0mm straight gauge |
|---|
| Spoke Nipples | Brass nipples |
|---|
| Front Tire | Front: 20 x 2.125" Tioga Comp III, Rear: 20 x 1.75" Tioga Comp III |
|---|
| Wheel Size | 20" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
