Uses front tire 700C×35; rear size isn’t listed.
Velopedia Bicycle Archive

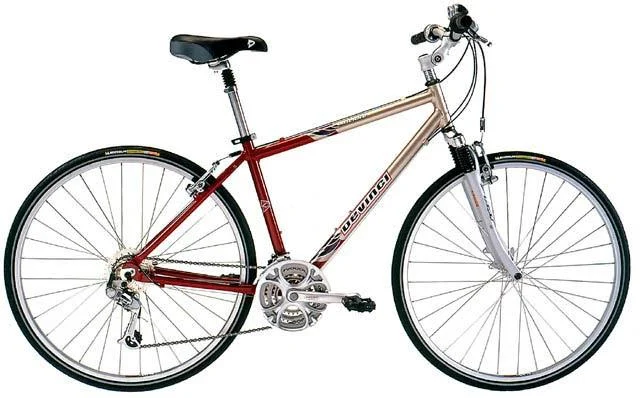

2004 Devinci Milano
Original specifications: Shimano Alivio · 8-speed · mechanical rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #92044- Model year
- 2004
- Category
- City & Commuter
- Sizes
- L, M, S, womens medium, womens small, XS
- In this record
- 26 specifications · archived image
Model history 4 other years
Browse other years
Compare side by side
Identification clues
2004 archived details
- Frame
- Aluminum
- Original equipment
- Hybrid Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · Hybrid Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour CR880 |
| Fork Material | Aluminum, single crown |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | Shimano Acera EF35 |
| Front Derailleur | Shimano Nexave T401 |
| Rear Derailleur | Shimano Alivio |
| Crankset | TruVativ Five-D, 30/42/52 teeth |
| Bottom Bracket | TruVativ cartridge, 118.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | Shimano CN-IG31, 1/2 x 3/32" |
| Pedals | Wellgo aluminum |
Brakes
| Brakes | ProMax SX-V85 linear-pull brakes, Shimano EF-35 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Tien Hsin TH-23 Integrated |
|---|---|
| Handlebar | Kalloy aluminum riser |
| Stem | Kalloy aluminum |
| Saddle | Selle Italia XO TransAm |
| Seatpost | Suspension |
Wheels & Tires
| Hubs | Shimano HB-RM40 |
|---|---|
| Rims | Alex DA-16, 32-hole |
| Spokes | DT stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 35c Michelin Transworld |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
1/2 x 3/32"
Shimano EF-35 levers
More parts (5)Fewer parts
32-hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Michelin Transworld
- Drivetrain
- 8-speed
- Bottom bracket / shell
- TruVativ cartridge, 118.5mm spindle · 68mm English
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: SR Suntour CR880 · Aluminum, single crown
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour CR880
Drivetrain
Check drivetrain wear →Archived: Group: Hybrid Mix · Shifters: Shimano Acera EF35 · Front derailleur: Shimano Nexave T401 · Rear derailleur: Shimano Alivio · Crankset: TruVativ Five-D, 30/42/52 teeth · Bottom bracket: TruVativ cartridge, 118.5mm spindle · Rear cogs: 8-speed, 11 - 30 teeth · Chain: Shimano CN-IG31, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: ProMax SX-V85 linear-pull brakes, Shimano EF-35 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Alex DA-16, 32-hole · Hubs: Shimano HB-RM40 · Front tire: 700 x 35c Michelin Transworld
Controls and contact points
Archived: Headset: 1 1/8" threadless Tien Hsin TH-23 Integrated · Handlebar: Kalloy aluminum riser · Stem: Kalloy aluminum · Seatpost: Suspension · Saddle: Selle Italia XO TransAm · Pedals: Wellgo aluminum
