Velopedia Bicycle Archive
2026 Commencal Meta HT V3 Signature Pure White
Original manufacturer specifications including geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $3,500.00
- Sizes
- S, M, L, XL
- Colors
- Pure WhiteShiny finish
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001417
Frameset
| Frame Construction | META HT V3: 29''/27'' on S & 29''/29'' on M / L / XLAlloy 6061, triple butted tubes, T4, T6. |
|---|---|
| Frame Material | Aluminum |
| Fork | FOX 36 Factory, 150 mm travel29", Grip X2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset |
Drivetrain
| Shifters | SRAM Eagle 9012s |
|---|---|
| Rear Derailleur | SRAM Eagle 9012s |
| Crankset | SRAM Eagle 70, 170 mm crank armsChainring: SRAM Eagle 70, 32t, steel |
| Bottom Bracket | SRAM DUB BSAWidth 68 mm, wide |
| Cassette | SRAM Eagle 7012s, 10-52t, Sram HG |
| Chain | SRAM GX T-type12s |
| Pedals | No |
Brakes
| Brakes | SRAM DB8, 4 pistonsRotors: SRAM G2 200 mm, 6-bolts |
|---|
Cockpit & Contact Points
| Headset | ACROS ZS56/ZS56Alloy cups, sealed bearings |
|---|---|
| Handlebar | RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Stem | RIDE ALPHA 40 mm40 mm extension, 31.8 mm |
| Saddle | FIZIK Terra Aidon X5145 mm width, S-alloy rails |
| Seatpost | KS Rage-I31.6 mm, travel: 150 mm on S, 170 mm on M, 190 mm on L/XL |
Wheels & Tires
| Hubs | DT SWISS 370Rear: 32h, sealed bearings, 12 x 148 mm, SRAM HG - Front: 28h, sealed bearings, 15 x 110 mm |
|---|---|
| Rims | DT SWISS EX511Rear: 27.5'', 32h, 30 mm inner width on S or 29'', 32h, 30 mm inner width on M / L / XL - Front: 29'', 28h, 30 mm inner width on S / M / L / XL |
| Front Tire | Rear: MAXXIS DHRII - Front: MAXXIS AssegaiRear: S: 27.5 x 2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ - M / L / XL: 29 x 2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ |
| Rear Tire | Rear: MAXXIS DHRII - Front: MAXXIS AssegaiRear: S: 27.5 x 2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ - M / L / XL: 29 x 2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 380 mm | 420 mm | 440 mm | 460 mm |
| Effective top tube | 558 mm | 603 mm | 624 mm | 650 mm |
| Head tube | 115 mm | 120 mm | 125 mm | 130 mm |
| Head-tube angle | 65.8° | 64.5° | 64.5° | 64.5° |
| Seat-tube angle | 76.8° | 75.5° | 75.5° | 75.5° |
| Chainstay / rear center | 425 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1150 mm | 1196 mm | 1218 mm | 1246 mm |
| Bottom-bracket drop | 54.4 mm | 50 mm | 50 mm | 50 mm |
| Reach | 410 mm | 435 mm | 455 mm | 480 mm |
| Stack | 638 mm | 649 mm | 653 mm | 658 mm |
| Fork length / axle-to-crown | 561 mm | 561 mm | 561 mm | 561 mm |
Geometry source: Commencal first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its stack of 638 mm sits toward the taller end. The chainstay of 425 mm sits toward the shorter rear-center end. Its reach of 410 mm sits toward the shorter end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.M geometry
Archive context: Its stack of 649 mm sits toward the taller end. Its reach of 435 mm sits toward the shorter end. The chainstay of 430 mm sits toward the shorter rear-center end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.L geometry
Archive context: Its stack of 653 mm sits toward the taller end. The chainstay of 430 mm sits toward the shorter rear-center end. Its reach of 455 mm sits toward the shorter end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Archive context: Its stack of 658 mm sits toward the taller end. Its reach of 480 mm sits toward the shorter end. The chainstay of 430 mm sits toward the shorter rear-center end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Parts & serviceability
Find replacement parts
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Commencal Meta HT V3 Signature Pure White · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: META HT V3: 29''/27'' on S & 29''/29'' on M / L / XLAlloy 6061, triple butted tubes, T4, T6. · Fork: FOX 36 Factory, 150 mm travel29", Grip X2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset
Suspension
Evaluate the suspension →Archived: Fork: FOX 36 Factory, 150 mm travel29", Grip X2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Eagle 9012s · Rear derailleur: SRAM Eagle 9012s · Crankset: SRAM Eagle 70, 170 mm crank armsChainring: SRAM Eagle 70, 32t, steel · Bottom bracket: SRAM DUB BSAWidth 68 mm, wide · Cassette: SRAM Eagle 7012s, 10-52t, Sram HG · Chain: SRAM GX T-type12s
Brakes
Inspect the brakes →Archived: Brakes: SRAM DB8, 4 pistonsRotors: SRAM G2 200 mm, 6-bolts
Wheels and tires
Check wheels and tires →Archived: Rims: DT SWISS EX511Rear: 27.5'', 32h, 30 mm inner width on S or 29'', 32h, 30 mm inner width on M / L / XL - Front: 29'', 28h, 30 mm inner width on S / M / L / XL · Hubs: DT SWISS 370Rear: 32h, sealed bearings, 12 x 148 mm, SRAM HG - Front: 28h, sealed bearings, 15 x 110 mm · Front tire: Rear: MAXXIS DHRII - Front: MAXXIS AssegaiRear: S: 27.5 x 2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ - M / L / XL: 29 x 2.50 WT MINION DHR II 3C MaxxTerra, New EXO+ · Rear tire: Rear: MAXXIS DHRII - Front: MAXXIS AssegaiRear…
Controls and contact points
Archived: Headset: ACROS ZS56/ZS56Alloy cups, sealed bearings · Stem: RIDE ALPHA 40 mm40 mm extension, 31.8 mm · Seatpost: KS Rage-I31.6 mm, travel: 150 mm on S, 170 mm on M, 190 mm on L/XL · Saddle: FIZIK Terra Aidon X5145 mm width, S-alloy rails · Pedals: No
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

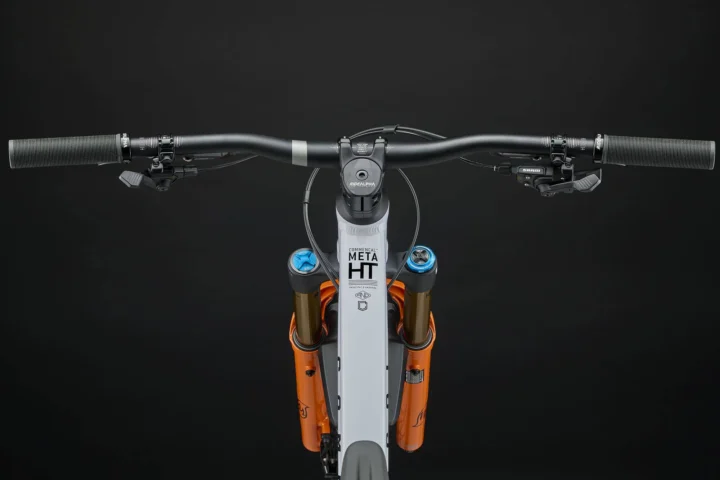

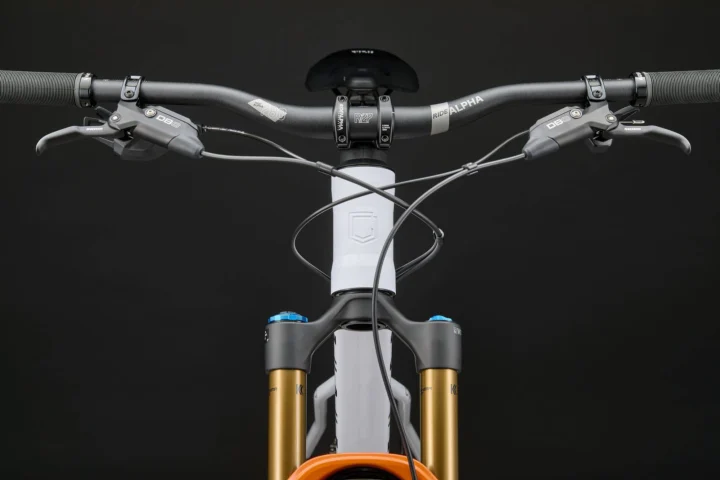

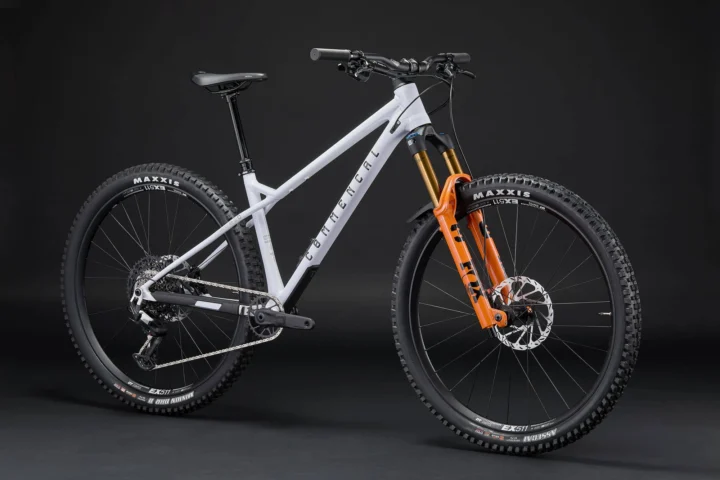

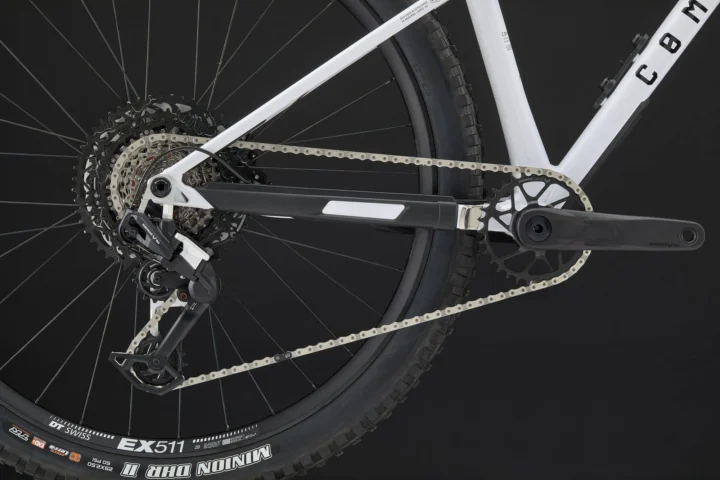

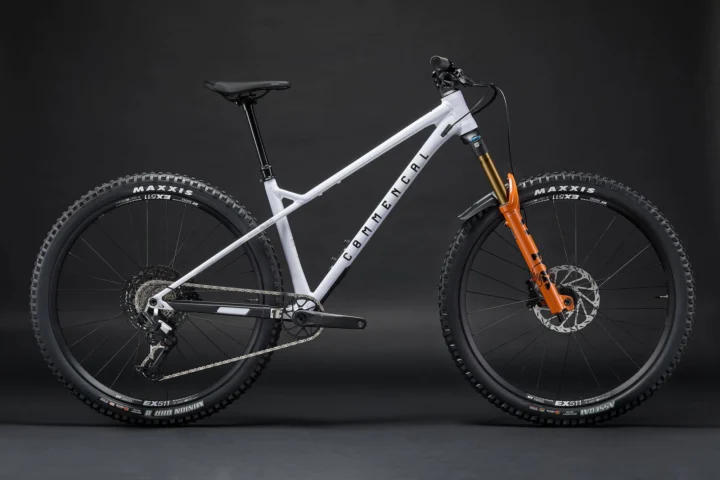

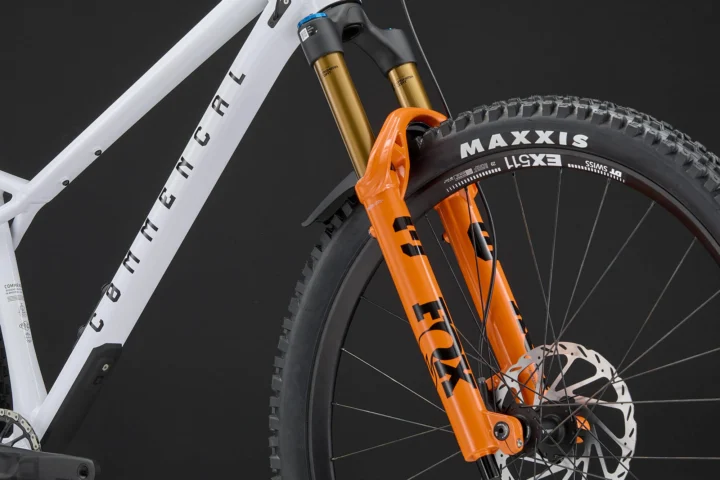

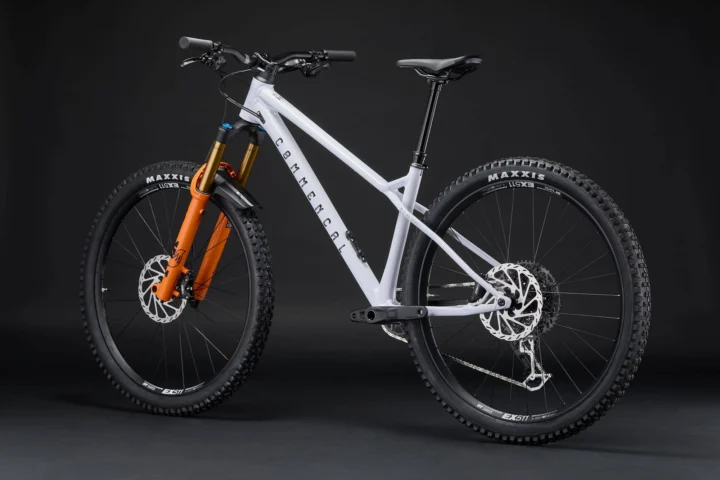

Gallery
Current market
Snapshot not yet availableMove, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
