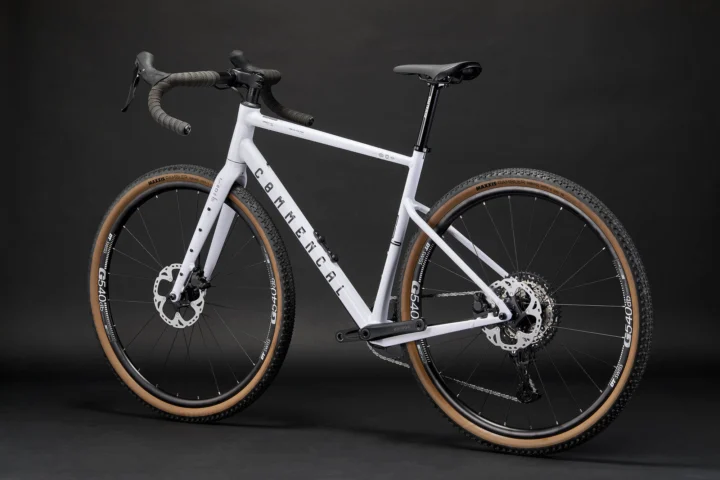

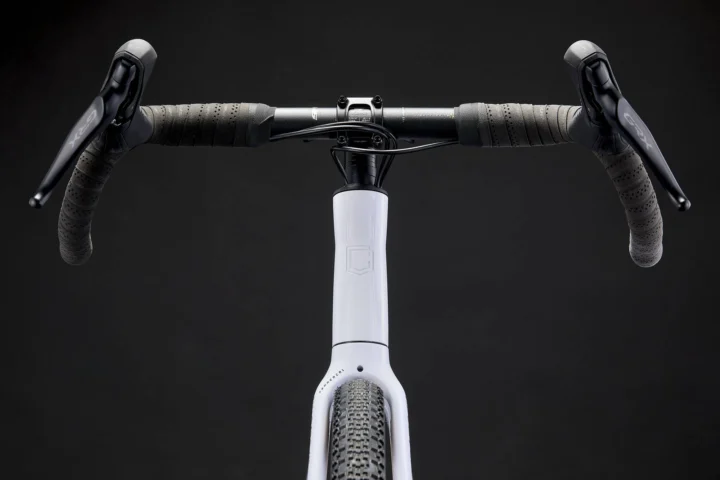

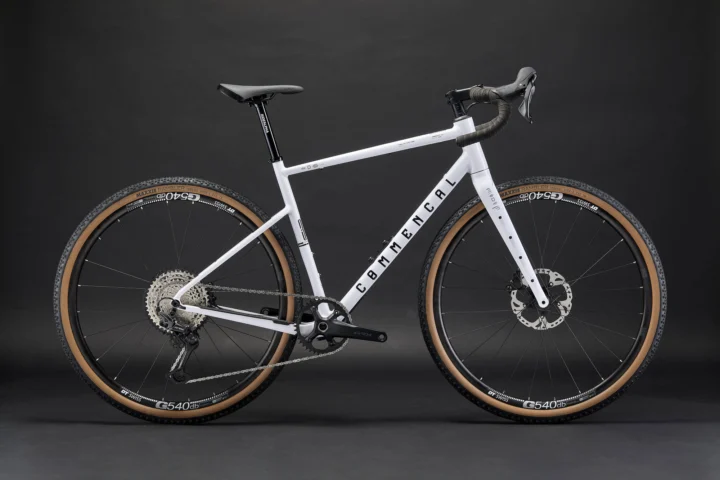

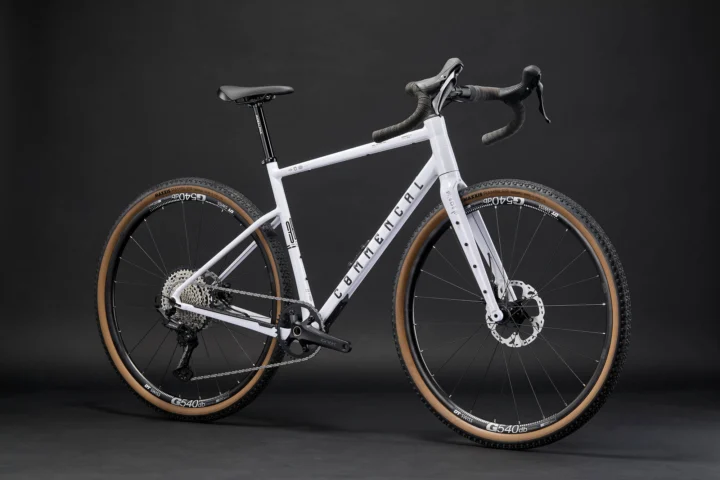

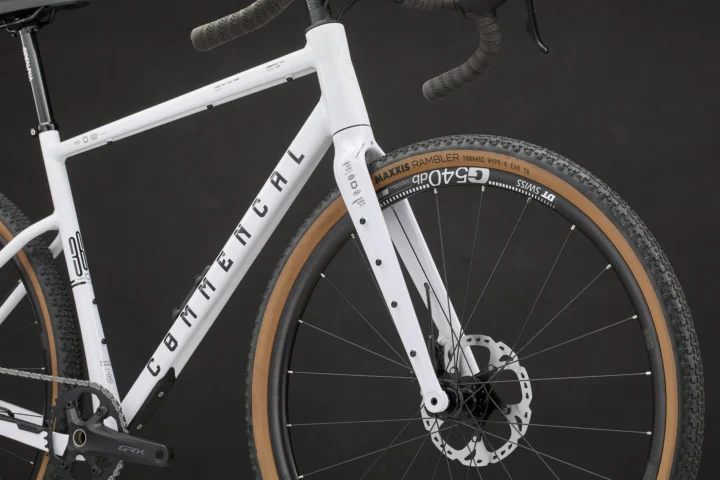

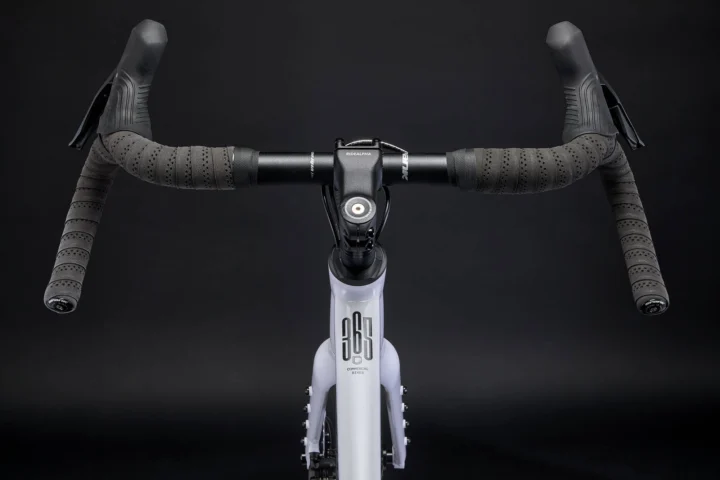

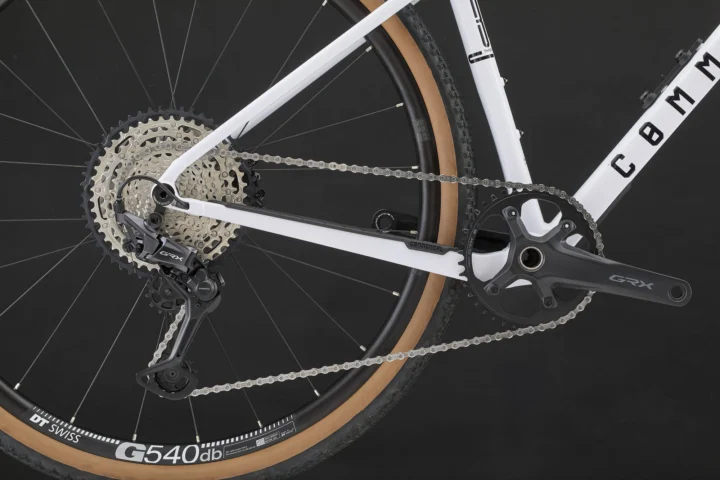

2026 Commencal 365 Ride GRX 12 Pure White
Original manufacturer specifications including geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,400.00
- Sizes
- XS, S, M, L, XL
- Colors
- Pure White, Shiny Finish
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001412
Frameset
| Frame Construction | 365; 650b, Alloy 6069, triple butted tubes, T4, T6 on XS; 700c, Alloy 6069, triple butted tubes, T4, T6 on S, M, L, XL |
|---|---|
| Frame Material | Aluminum |
| Fork | 365; Internal brake hose routing, Alloy 6066 |
| Fork Material | Aluminum |
Drivetrain
| Shifters | Shimano GRX RX610; 12S |
|---|---|
| Rear Derailleur | Shimano GRX RX822; 12S |
| Crankset | SHIMANO GRX RX610, 165 mm on XS/S, 170 mm on M, 172.5 mm on L/XL; Chainring: SHIMANO GRX RX610, 40T |
| Bottom Bracket | SHIMANO BB-RS500; Pressfit |
| Cassette | Shimano SLX; 12S, 10-51T |
| Chain | Shimano Deore M6100; 12S |
| Pedals | No |
Brakes
| Brakes | SHIMANO GRX RX610, Flat Mount; Rotors: SHIMANO SMRT86 180 mm, 180 mm, 6-bolt |
|---|
Cockpit & Contact Points
| Headset | ACROS IS52/IS52; Integrated cable routing |
|---|---|
| Handlebar | SPANK Flare 25 Vibrocore Drop Bar; 31.8 mm, 420 mm width, 65 mm reach, 110 mm drop, 25° flare on XS, S- 31.8 mm, 460 mm width, 65 mm reach, 110 mm drop, 25° flare on M - 31.8 mm, 480 mm width, 65 mm reach, 110 mm drop, 25° flare on L, XL |
| Stem | RIDE ALPHA Gravel 70; 70 mm extension, 31.8 mm |
| Saddle | FIZIK Terra Alpaca X5; 145 mm width, S-alloy rails |
| Seatpost | RIDE ALPHA; 27.2 mm, 350 mm length |
Wheels & Tires
| Hubs | Rear: FORMULA RX-360M - Front: FORMULA RX-812; Rear: 24h, sealed bearings, 12 x 142 mm, Microspline 12s - Front: 24h, sealed bearings, 12 x 100 mm |
|---|---|
| Rims | DT SWISS G540; 650b, 24h, 24 mm inner width, tubeless ready on XS; 700C, 24h, 24 mm inner width, tubeless ready on S / M / L / XL |
| Front Tire | MAXXIS Rambler; 650 x 47b, HYPR-X, EXO, Tubeless Ready on XS - 700 x 45c, HYPR-X, EXO, Tubeless Ready on S / M / L / XL |
| Rear Tire | MAXXIS Rambler; 650 x 47b, HYPR-X, EXO, Tubeless Ready on XS - 700 x 45c, HYPR-X, EXO, Tubeless Ready on S / M / L / XL |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Effective top tube | 522.3 mm | 547 mm | 570.3 mm | 595.5 mm | 625 mm |
| Head tube | 135 mm | 145 mm | 155 mm | 170 mm | 185 mm |
| Head-tube angle | 70.5° | 70.8° | 71° | 71.2° | 71.4° |
| Chainstay / rear center | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Bottom-bracket drop | 65 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Reach | 360 mm | 380 mm | 400 mm | 420 mm | 445 mm |
| Stack | 564 mm | 580 mm | 590 mm | 605 mm | 620 mm |
| Fork length / axle-to-crown | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
Geometry source: Commencal first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 65 mm sits toward the shallower-drop end. Its reach of 360 mm sits toward the shorter end.
Compared with 42 distinct gravel & cyclocross geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its stack of 580 mm sits toward the taller end. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical. The chainstay of 425 mm sits somewhat shorter than typical.
Compared with 101 distinct gravel & cyclocross geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its reach of 400 mm sits somewhat longer than typical. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical. The chainstay of 425 mm sits somewhat shorter than typical.
Compared with 117 distinct gravel & cyclocross geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 420 mm sits toward the longer end. The chainstay of 425 mm sits somewhat shorter than typical. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical.
Compared with 86 distinct gravel & cyclocross geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its reach of 445 mm sits toward the longer end. The chainstay of 425 mm sits somewhat shorter than typical. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical.
Compared with 91 distinct gravel & cyclocross geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
Shimano Deore M6100; 12S
Interpreted as Shimano Deore · 12-speed Exact archived model
Shimano SLX; 12S, 10-51T
Interpreted as Shimano SLX · 12-speed Component family — verify exact version
SHIMANO BB-RS500; Pressfit
Exact archived model
More qualified parts (4)
FIZIK Terra Alpaca X5; 145 mm width, S-alloy rails
Named archived component — verify exact version
Shimano GRX RX822; 12S
Interpreted as Shimano GRX · 12-speed Component family — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano GRX RX610; 12S
Interpreted as Shimano GRX · 12-speed Component family — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Commencal 365 Ride GRX 12 Pure White · Gravel · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: 365; 650b, Alloy 6069, triple butted tubes, T4, T6 on XS; 700c, Alloy 6069, triple butted tubes, T4, T6 on S, M, L, XL · Fork: 365; Internal brake hose routing, Alloy 6066 · Aluminum
Drivetrain
Check drivetrain wear →Archived: Shifters: SHIMANO GRX RX610; 12s · Rear derailleur: SHIMANO GRX RX822; 12s · Crankset: SHIMANO GRX RX610, 165 mm on XS/S, 170 mm on M, 172.5 mm on L/XL; Chainring: SHIMANO GRX RX610, 40T · Bottom bracket: SHIMANO BB-RS500; Pressfit · Cassette: SHIMANO SLX; 12s, 10-51t · Chain: SHIMANO DEORE M6100; 12s
Brakes
Inspect the brakes →Archived: Brakes: SHIMANO GRX RX610, Flat Mount; Rotors: SHIMANO SMRT86 180 mm, 180 mm, 6-bolt
Wheels and tires
Check wheels and tires →Archived: Rims: DT SWISS G540; 650b, 24h, 24 mm inner width, tubeless ready on XS; 700C, 24h, 24 mm inner width, tubeless ready on S / M / L / XL · Hubs: Rear: FORMULA RX-360M - Front: FORMULA RX-812; Rear: 24h, sealed bearings, 12 x 142 mm, Microspline 12s - Front: 24h, sealed bearings, 12 x 100 mm · Front tire: MAXXIS Rambler; 650 x 47b, HYPR-X, EXO, Tubeless Ready on XS - 700 x 45c, HYPR-X, EXO, Tubeless Ready on S / M / L / XL · Rear tire: MAXXIS Rambler; 650 x 47b, HYPR-X, EXO, Tubeless Ready on XS - 700 x 45c, HYPR…
Controls and contact points
Archived: Headset: ACROS IS52/IS52; Integrated cable routing · Stem: RIDE ALPHA Gravel 70; 70 mm extension, 31.8 mm · Seatpost: RIDE ALPHA; 27.2 mm, 350 mm length · Saddle: FIZIK Terra Alpaca X5; 145 mm width, S-alloy rails · Pedals: No
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
