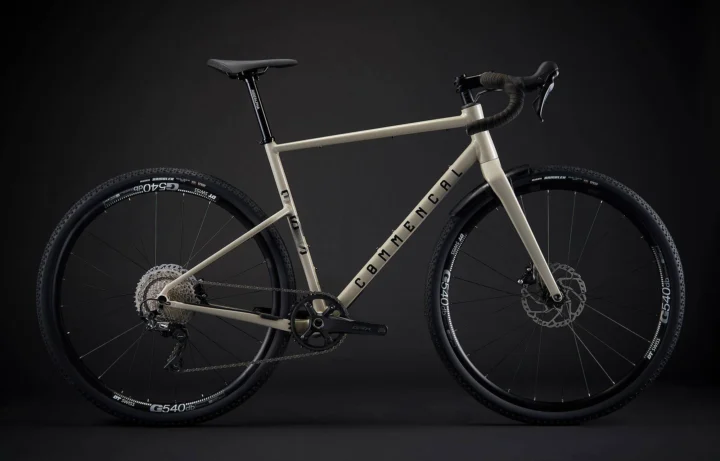

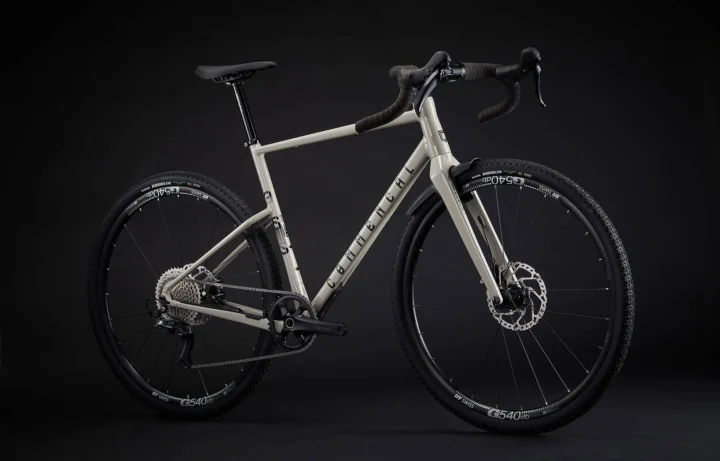

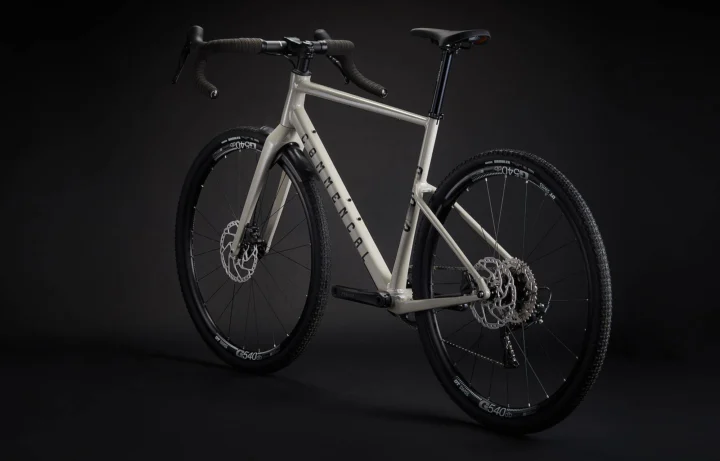

2026 Commencal 365 Ride
Original manufacturer specifications including geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,000.00
- Sizes
- XS, S, M, L, XL
- Colors
- ChalkShiny Finish
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 7 archived images · original MSRP · preserved geometry
- Archive ID
- 900001447
Frameset
| Frame Construction | 365650b, Alloy 6069, triple butted tubes, T4, T6 on XS700c, Alloy 6069, triple butted tubes, T4, T6 on S, M, L, XL |
|---|---|
| Frame Material | Aluminum |
| Fork | 365Internal brake hose routing, Alloy 6069 |
| Fork Material | Aluminum |

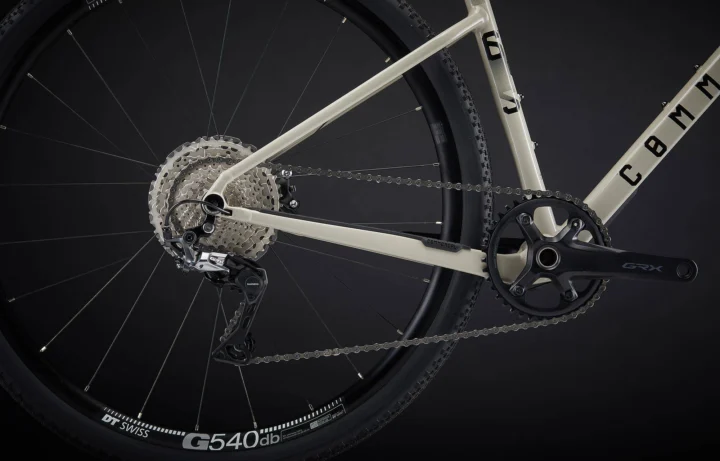

Drivetrain
| Shifters | Shimano GRX RX60011S |
|---|---|
| Rear Derailleur | Shimano GRX RX81211S |
| Crankset | SHIMANO GRX RX600, 170 mm crank arms on XS/S, 172.5 mm on M/L, 175 mm on XLChainring: SHIMANO GRX RX600, 40t |
| Bottom Bracket | SHIMANO BB-RS500Pressfit |
| Cassette | SHIMANO Deore M510011s, 11-42t |
| Chain | Shimano 10511S |
| Pedals | No |
Brakes
| Brakes | SHIMANO GRX RX400, Flat Mount, resin padsRotors: SHIMANO SM-RT66 180 mm, 6-bolt |
|---|
Cockpit & Contact Points
| Headset | ACROS IS52 / IS52Integrated cable routing |
|---|---|
| Handlebar | SPANK Flare 25 Drop Bar31.8 mm, 440 mm width, 65 mm reach, 110 mm drop, 25° flare on XS, S31.8 mm, 460 mm width, 65 mm reach, 110 mm drop, 25° flare on M31.8 mm, 480 mm width, 65 mm reach, 110 mm drop, 25° flare on L, XL |
| Stem | RIDE ALPHA Gravel 7070 mm extension, 31.8 mm |
| Saddle | FIZIK Terra Alpaca X5145 mm width, S-alloy rails |
| Seatpost | RIDE ALPHA27.2 mm, 350 mm length |
Wheels & Tires
| Hubs | Rear: FORMULA RX-300 - Front: FORMULA RX-812Rear: 24h, sealed bearings, 12 x 142 mm, Shimano Hyperglide - Front: 24h, sealed bearings, 12 x 100 mm |
|---|---|
| Rims | DT SWISS G540; 650b, 24h, 24 mm inner width, tubeless ready on XS; 700C, 24h, 24 mm inner width, tubeless ready on S / M / L / XL |
| Front Tire | Rear: MAXXIS Rambler - Front: MAXXIS RamblerRear & Front: 650x47b, EXO, Tubeless Ready on XS - 700x45c, EXO, Tubeless Ready on S / M / L / XL |
| Rear Tire | Rear: MAXXIS Rambler - Front: MAXXIS RamblerRear & Front: 650x47b, EXO, Tubeless Ready on XS - 700x45c, EXO, Tubeless Ready on S / M / L / XL |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Effective top tube | 522.3 mm | 547 mm | 570.3 mm | 595.5 mm | 625 mm |
| Head tube | 135 mm | 145 mm | 155 mm | 170 mm | 185 mm |
| Head-tube angle | 70.5° | 70.8° | 71° | 71.2° | 71.4° |
| Chainstay / rear center | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Bottom-bracket drop | 65 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Reach | 360 mm | 380 mm | 400 mm | 420 mm | 445 mm |
| Stack | 564 mm | 580 mm | 590 mm | 605 mm | 620 mm |
| Fork length / axle-to-crown | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
Geometry source: Commencal first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: The chainstay of 420 mm sits toward the shorter rear-center end. Its bottom-bracket drop of 65 mm sits toward the shallower-drop end. Its reach of 360 mm sits toward the shorter end.
Compared with 42 distinct gravel & cyclocross geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its stack of 580 mm sits toward the taller end. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical. The chainstay of 425 mm sits somewhat shorter than typical.
Compared with 101 distinct gravel & cyclocross geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its reach of 400 mm sits somewhat longer than typical. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical. The chainstay of 425 mm sits somewhat shorter than typical.
Compared with 117 distinct gravel & cyclocross geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 420 mm sits toward the longer end. The chainstay of 425 mm sits somewhat shorter than typical. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical.
Compared with 86 distinct gravel & cyclocross geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its reach of 445 mm sits toward the longer end. The chainstay of 425 mm sits somewhat shorter than typical. Its bottom-bracket drop of 70 mm sits somewhat shallower than typical.
Compared with 91 distinct gravel & cyclocross geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
SHIMANO BB-RS500Pressfit
Exact archived model
FIZIK Terra Alpaca X5145 mm width, S-alloy rails
Named archived component — verify exact version
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Commencal 365 Ride · Gravel · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: 365650b, Alloy 6069, triple butted tubes, T4, T6 on XS700c, Alloy 6069, triple butted tubes, T4, T6 on S, M, L, XL · Fork: 365Internal brake hose routing, Alloy 6069 · Aluminum
Drivetrain
Check drivetrain wear →Archived: Shifters: SHIMANO GRX RX60011s · Rear derailleur: SHIMANO GRX RX81211s · Crankset: SHIMANO GRX RX600, 170 mm crank arms on XS/S, 172.5 mm on M/L, 175 mm on XLChainring: SHIMANO GRX RX600, 40t · Bottom bracket: SHIMANO BB-RS500Pressfit · Cassette: SHIMANO Deore M510011s, 11-42t · Chain: SHIMANO 10511s
Brakes
Inspect the brakes →Archived: Brakes: SHIMANO GRX RX400, Flat Mount, resin padsRotors: SHIMANO SM-RT66 180 mm, 6-bolt
Wheels and tires
Check wheels and tires →Archived: Rims: DT SWISS G540; 650b, 24h, 24 mm inner width, tubeless ready on XS; 700C, 24h, 24 mm inner width, tubeless ready on S / M / L / XL · Hubs: Rear: FORMULA RX-300 - Front: FORMULA RX-812Rear: 24h, sealed bearings, 12 x 142 mm, Shimano Hyperglide - Front: 24h, sealed bearings, 12 x 100 mm · Front tire: Rear: MAXXIS Rambler - Front: MAXXIS RamblerRear & Front: 650x47b, EXO, Tubeless Ready on XS - 700x45c, EXO, Tubeless Ready on S / M / L / XL · Rear tire: Rear: MAXXIS Rambler - Front: MAXXIS RamblerRear & Front…
Controls and contact points
Archived: Headset: ACROS IS52 / IS52Integrated cable routing · Stem: RIDE ALPHA Gravel 7070 mm extension, 31.8 mm · Seatpost: RIDE ALPHA27.2 mm, 350 mm length · Saddle: FIZIK Terra Alpaca X5145 mm width, S-alloy rails · Pedals: No
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
