7.6–33.9 mph at 90 rpm, estimated from the published rear tire size 700×29c · 29-622 ETRTO.
Velopedia Bicycle Archive

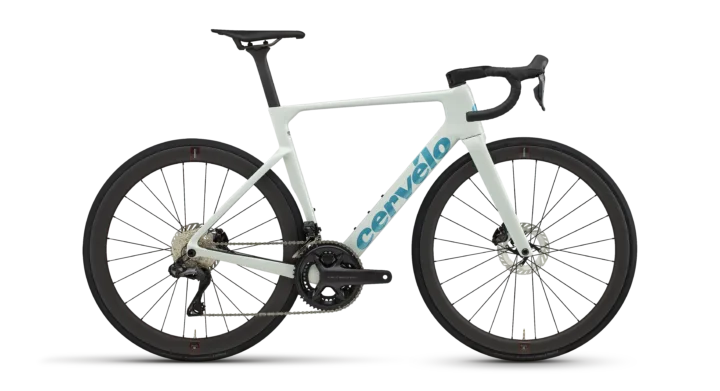

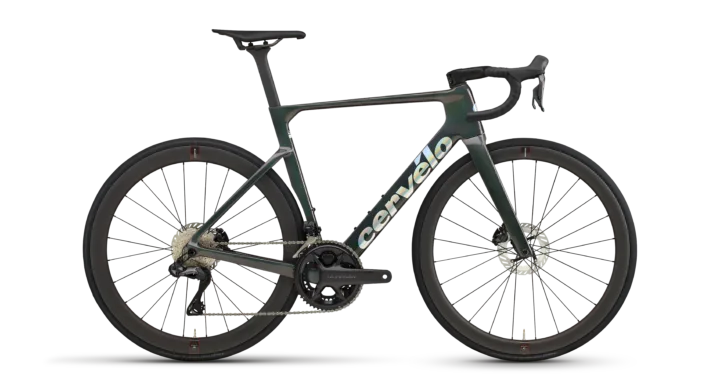

2026 Cervelo Soloist Ultegra Di2
Original specifications: 7.17 kgs published weight · geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
At a glance
- Model year
- 2026
- Category
- Road
- Original MSRP
- $8,250.00
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Black Magic, Cloud Break
- Weight
- 7.17 kgs
- Geometry
- 6 manufacturer sizes
- In this record
- 17 specifications · 2 archived images · original MSRP · geometry
- Archive ID
- 900000027
Current retail availability
This exact model is available
Backcountry currently lists a 2026 Cervelo Soloist Ultegra Di2 matching this Archive record. Available sizes, colors and prices can change.
$5,880.00 (was $7,350.00) · 20% off
Original build17 specifications
Frameset
| Fork | Cervélo All-Carbon, Tapered Soloist Fork |
|---|---|
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano Ultegra, R8170 |
|---|---|
| Front Derailleur | Shimano Ultegra, R8150 |
| Rear Derailleur | Shimano Ultegra, R8150 |
| Crankset | Shimano Ultegra, R8100, 52/36T |
| Bottom Bracket | FSA, T47 BBright for 24mm spindle |
| Cassette | Shimano Ultegra, R8100, 11-34T, 12-Speed |
| Chain | Shimano M8100 |
Brakes
| Brakes | Brake controls: Shimano Ultegra, R8170; Rotors: Shimano CL800 Centerlock |
|---|
Cockpit & Contact Points
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
|---|---|
| Handlebar | Cervélo HB18 Carbon |
| Saddle | Fizik Arione R3 |
| Seatpost | Cervélo SP27 Carbon |
Wheels & Tires
| Wheels | Front: Reserve 42TA, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 49TA, DT Swiss 350, 12x142mm, HG freehub 24H, centerlock, tubeless compatible |
|---|---|
| Front Tire | Vittoria Corsa N.EXT TLR G2.0 700x29c |
| Rear Tire | Vittoria Corsa N.EXT TLR G2.0 700x29c |
Geometry
Frame measurements by size.
Published frame view
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 14 measurements
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Top tube | 506 mm | 526 mm | 545 mm | 565 mm | 581 mm | 595 mm |
| Head tube | 89.6 mm | 109.3 mm | 132 mm | 156 mm | 182.8 mm | 203.7 mm |
| Head-tube angle | 71° | 72° | 73° | 73° | 73° | 73° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 976.8 mm | 977.6 mm | 978 mm | 992.8 mm | 1010.3 mm | 1024.5 mm |
| Bottom-bracket drop | 77 mm | 77 mm | 74 mm | 74 mm | 72 mm | 72 mm |
| Reach | 368.7 mm | 376.5 mm | 383.3 mm | 391.1 mm | 400.3 mm | 408.3 mm |
| Stack | 496.1 mm | 520.2 mm | 544.6 mm | 567.5 mm | 590.7 mm | 610.7 mm |
| Standover height | 707.6 mm | 747.1 mm | 773.8 mm | 811.6 mm | 820.7 mm | 839 mm |
| Fork offset / rake | 58 mm | 52 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Front center | 579.1 mm | 579.9 mm | 579.5 mm | 594.2 mm | 610.8 mm | 624.8 mm |
| Trail | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
Gearing
Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.
Parts & serviceability
Find replacement parts
More parts (6)
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Cervelo Soloist Ultegra Di2 · Road · Published sizes: 48, 51, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Fork: Cervélo All-Carbon, Tapered Soloist Fork · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Ultegra, R8170 · Front derailleur: Shimano Ultegra, R8150 · Rear derailleur: Shimano Ultegra, R8150 · Crankset: Shimano Ultegra, R8100, 52/36T · Bottom bracket: FSA, T47 BBright for 24mm spindle · Cassette: Shimano Ultegra, R8100, 11-34T, 12-Speed · Chain: Shimano M8100
Brakes
Inspect the brakes →Archived: Brakes: Brake controls: Shimano Ultegra, R8170; Rotors: Shimano CL800 Centerlock
Wheels and tires
Check wheels and tires →Archived: Wheels: Front: Reserve 42TA, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 49TA, DT Swiss 350, 12x142mm, HG freehub 24H, centerlock, tubeless compatible · Front tire: Vittoria Corsa N.EXT TLR G2.0 700x29c · Rear tire: Vittoria Corsa N.EXT TLR G2.0 700x29c
Controls and contact points
Archived: Headset: FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° · Handlebar: Cervélo HB18 Carbon · Seatpost: Cervélo SP27 Carbon · Saddle: Fizik Arione R3
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
