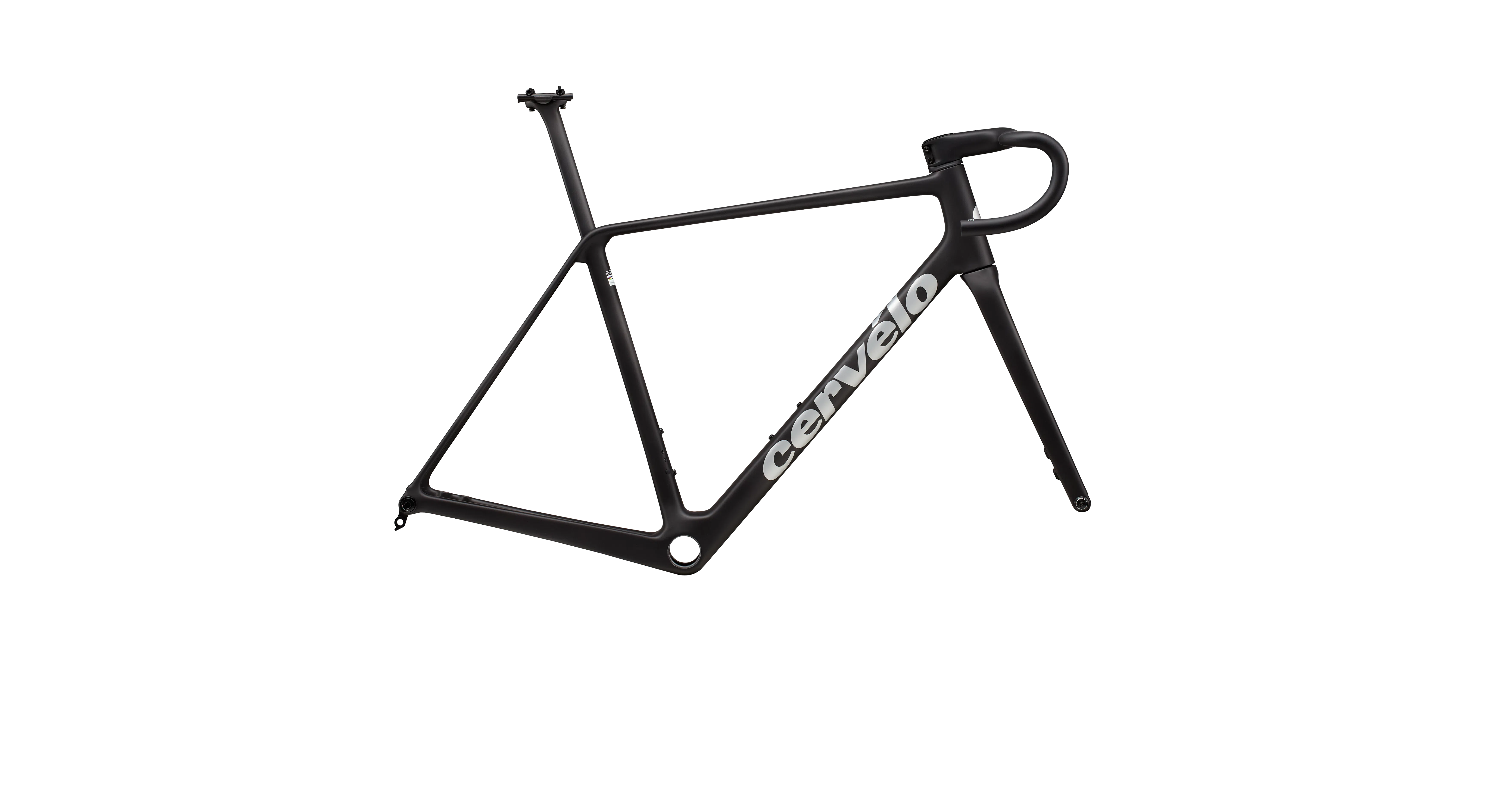

2026 Cervelo R5 Frameset
Original manufacturer specifications including 1.54 kgs published weight, geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $6,500.00
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Five Black/Bronze, Five Black/Silver
- Weight
- 1.54 kgs
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 7 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900000017
Frameset
| Frame Construction | Cervélo R5 frame |
|---|---|
| Fork | Cervélo All-Carbon, Tapered R5 Fork |
| Fork Material | Carbon Fiber |
Cockpit & Contact Points
| Headset | FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
|---|---|
| Handlebar | Cervélo HB18 Carbon |
| Seatpost | Cervélo SP33 Carbon |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Top tube | 506 mm | 526 mm | 545 mm | 565 mm | 581 mm | 595 mm |
| Head tube | 89.6 mm | 109.3 mm | 132 mm | 156 mm | 182.8 mm | 203.7 mm |
| Head-tube angle | 71° | 72° | 73° | 73° | 73° | 73° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 976.8 mm | 977.6 mm | 978 mm | 992.8 mm | 1010.3 mm | 1024.5 mm |
| Bottom-bracket drop | 76.5 mm | 76.5 mm | 74 mm | 74 mm | 71.5 mm | 71.5 mm |
| Reach | 368.7 mm | 376.5 mm | 383.3 mm | 391.1 mm | 400.3 mm | 408.3 mm |
| Stack | 496.1 mm | 520.2 mm | 544.6 mm | 567.5 mm | 590.7 mm | 610.7 mm |
| Standover height | 699.7 mm | 731 mm | 757.4 mm | 779.1 mm | 803.4 mm | 822.2 mm |
| Fork offset / rake | 57.5 mm | 51.5 mm | 45.5 mm | 45.5 mm | 45.5 mm | 45.5 mm |
| Front center | 579.1 mm | 579.9 mm | 579.5 mm | 594.2 mm | 610.8 mm | 624.8 mm |
| Trail | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
48 geometry
Archive context: Its reach of 368.7 mm sits toward the shorter end. Its trail of 57.3 mm sits toward the lower-trail end. Its stack of 496.1 mm sits toward the lower end.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.51 geometry
Archive context: Its trail of 57.3 mm sits toward the lower-trail end. Its bottom-bracket drop of 76.5 mm sits toward the deeper-drop end. Its wheelbase of 977.6 mm sits somewhat shorter than typical.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.54 geometry
Archive context: Its wheelbase of 978 mm sits toward the shorter end. Its trail of 57.3 mm sits toward the lower-trail end. The head angle of 73° sits toward the steeper end.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.56 geometry
Archive context: The seat angle of 73° sits toward the more relaxed end. Its wheelbase of 992.8 mm sits toward the shorter end. Its bottom-bracket drop of 74 mm sits somewhat deeper than typical.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.58 geometry
Archive context: The chainstay of 410 mm sits somewhat shorter than typical. The seat angle of 73° sits somewhat more relaxed than typical. Its wheelbase of 1010.3 mm sits somewhat shorter than typical.
Compared with 63 distinct road geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.61 geometry
Archive context: Its stack of 610.7 mm sits somewhat lower than typical. The chainstay of 410 mm sits somewhat shorter than typical. The seat angle of 73° sits somewhat more relaxed than typical.
Compared with 39 distinct road geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the complete frame and fork in bright light for cracks, dents, distortion, corrosion, impact marks, suspicious paint differences or signs of repair. Check the head tube, bottom-bracket area, dropouts, joints and clamped surfaces especially closely.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Cervelo R5 Frameset · Road · Published sizes: 48, 51, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Cervélo R5 frame · Fork: Cervélo All-Carbon, Tapered R5 Fork · Carbon Fiber
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
