7.0–34.5 mph at 90 rpm, estimated from the published rear tire size 700×30c · 30-622 ETRTO.
Velopedia Bicycle Archive

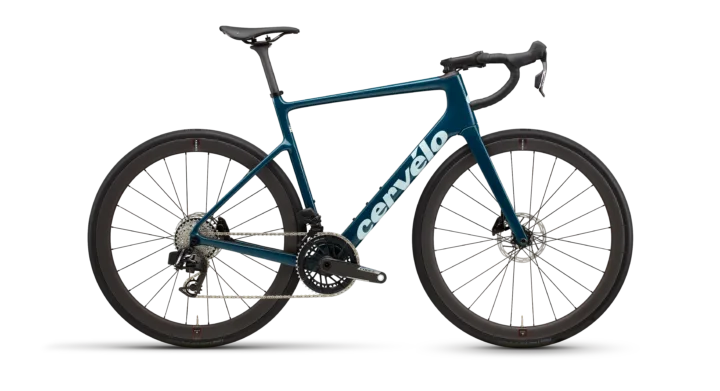

2026 Cervelo Caledonia Force AXS
Original specifications: 7.68 kgs published weight · geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
At a glance
- Model year
- 2026
- Category
- Road
- Original MSRP
- $6,500.00
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Mocha, Nightshift
- Weight
- 7.68 kgs
- Geometry
- 6 manufacturer sizes
- In this record
- 19 specifications · 2 archived images · original MSRP · geometry
- Archive ID
- 900000088
Original build19 specifications
Frameset
| Frame Construction | Cervélo Caledonia frame |
|---|---|
| Fork | Cervélo All-Carbon, Tapered Caledonia Fork |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | SRAM Force AXS E1 |
|---|---|
| Front Derailleur | SRAM Force AXS E1 |
| Rear Derailleur | SRAM Force AXS E1 |
| Crankset | SRAM Force AXS E1, 48/35T, DUB |
| Bottom Bracket | SRAM DUB, T47 BBright |
| Cassette | SRAM Force E1, 10-36T, 12-Speed |
| Chain | SRAM Force E1 |
Brakes
| Brakes | Brake controls: SRAM Force AXS E1; Rotors: SRAM Paceline Centerlock |
|---|
Cockpit & Contact Points
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
|---|---|
| Handlebar | Cervélo HB23 alloy 400mm |
| Stem | Cervélo ST36 Alloy |
| Saddle | Prologo Nago R4 PAS Steel |
| Seatpost | Cervélo SP19 Carbon 27.2 |
Wheels & Tires
| Wheels | Front: Reserve 40, Reserve hub, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 44, Reserve hub, 4 Pawl, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
|---|---|
| Front Tire | Vittoria Corsa N.EXT TLR G2.0 700x30c |
| Rear Tire | Vittoria Corsa N.EXT TLR G2.0 700x30c |
Geometry
Frame measurements by size.
Published frame view
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 14 measurements
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Top tube | 502 mm | 522 mm | 543 mm | 565 mm | 581 mm | 598 mm |
| Head tube | 89.5 mm | 109.9 mm | 136 mm | 162.3 mm | 191.2 mm | 217.5 mm |
| Head-tube angle | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Chainstay / rear center | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 982.2 mm | 984.5 mm | 995.2 mm | 1012.3 mm | 1030.7 mm | 1047.8 mm |
| Bottom-bracket drop | 76.5 mm | 76.5 mm | 74 mm | 74 mm | 71.5 mm | 71.5 mm |
| Reach | 360 mm | 369 mm | 378 mm | 387 mm | 396 mm | 405 mm |
| Stack | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm | 630 mm |
| Standover height | 701 mm | 741 mm | 773 mm | 796 mm | 823 mm | 847 mm |
| Fork offset / rake | 59 mm | 53 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Front center | 579.4 mm | 581.7 mm | 591.5 mm | 608.5 mm | 626 mm | 643 mm |
| Trail | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C |
Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
Gearing
Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.
Parts & serviceability
Find replacement parts

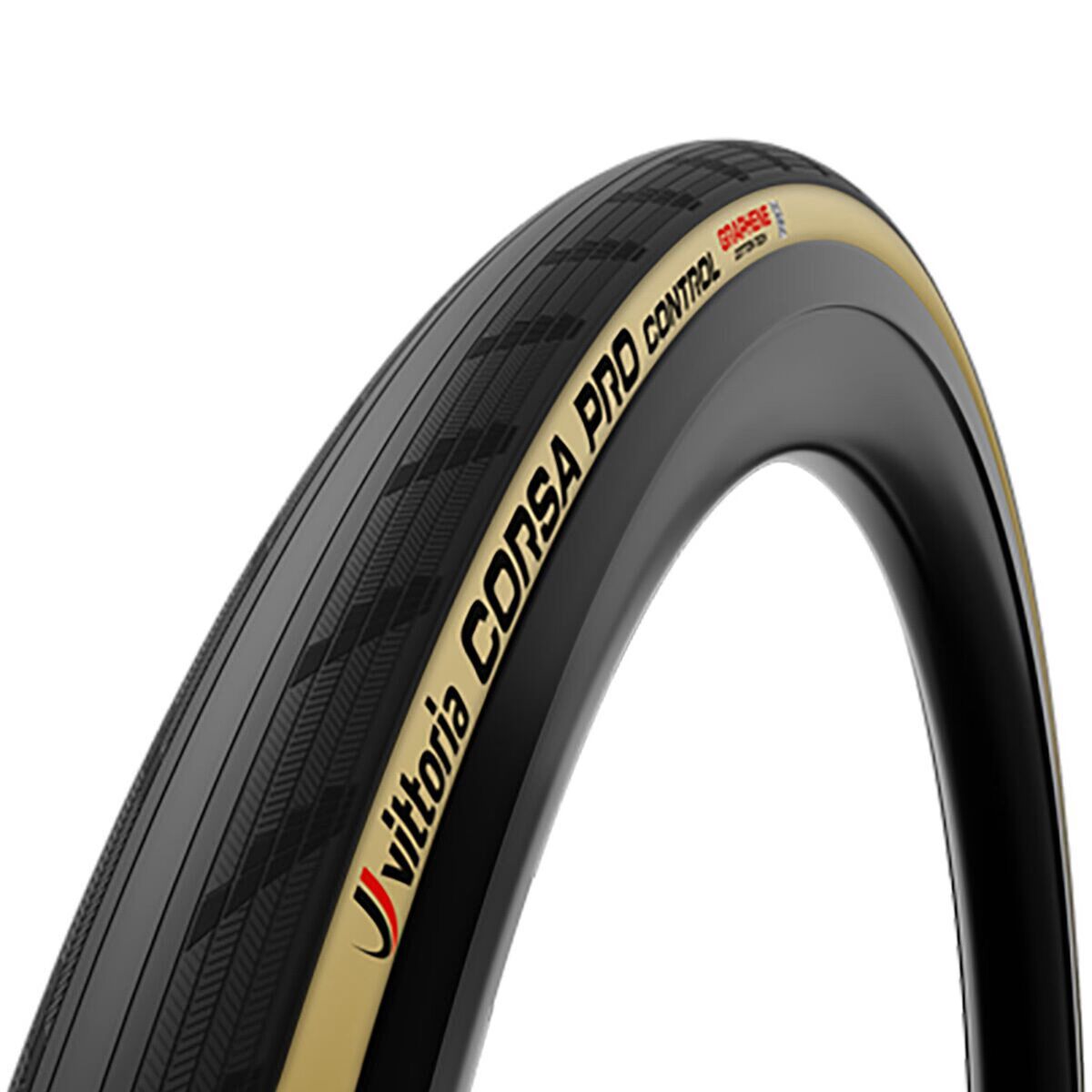

Vittoria Corsa Pro Control G2.0 Tubeless Tire Gumwall/Black, 700x30
700x30
Replacement option · verify fit

Challenge Strada Bianca Pro Tubeless Tire Tan, 700x30
700x30
Replacement option · verify fit
More parts (6)
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Cervelo Caledonia Force AXS · Road · Published sizes: 48, 51, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Cervélo Caledonia frame · Fork: Cervélo All-Carbon, Tapered Caledonia Fork · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Force AXS E1 · Front derailleur: SRAM Force AXS E1 · Rear derailleur: SRAM Force AXS E1 · Crankset: SRAM Force AXS E1, 48/35T, DUB · Bottom bracket: SRAM DUB, T47 BBright · Cassette: SRAM Force E1, 10-36T, 12-Speed · Chain: SRAM Force E1
Brakes
Inspect the brakes →Archived: Brakes: Brake controls: SRAM Force AXS E1; Rotors: SRAM Paceline Centerlock
Wheels and tires
Check wheels and tires →Archived: Wheels: Front: Reserve 40, Reserve hub, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 44, Reserve hub, 4 Pawl, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible · Front tire: Vittoria Corsa N.EXT TLR G2.0 700x30c · Rear tire: Vittoria Corsa N.EXT TLR G2.0 700x30c
Controls and contact points
Archived: Headset: FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° · Handlebar: Cervélo HB23 alloy 400mm · Stem: Cervélo ST36 Alloy · Seatpost: Cervélo SP19 Carbon 27.2 · Saddle: Prologo Nago R4 PAS Steel
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
