2026 Cannondale SuperSix EVO LAB71 SL

Original specifications: 700c wheels · geometry for 2 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000870
Model year
2026
Category
Road
Original MSRP
$13,499.00
Sizes
48, 50, 52, 54, 56, 58, 61
Colors
Raw
Geometry
2 manufacturer sizes
In this record
23 specifications · archived image · original MSRP · geometry
Campaign
Original buildCarbon fiber · 700c

Manufacturer catalog

Published sizes and colors

7 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

48505254565861

Published colors

Raw

Frameset

Frame ConstructionLAB71 SuperSix EVO, Gen 5, Ultralight Series 0 Carbon, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
Frame MaterialCarbon fiber
ForkLAB71 SuperSix EVO, Gen 5, Ultralight Series 0 Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Fork MaterialCarbon fiber

Drivetrain

ShiftersSRAM RED AXS, 2x12-speed
Front DerailleurSRAM RED AXS
Rear DerailleurSRAM RED AXS, 12-speed
CranksetSRAM RED AXS Power Meter, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
Bottom BracketCeramicSpeed BB Alpha for BSA DUB
Rear CogsSRAM RED XG-1290, 10-30, 12-speed
ChainSRAM RED, 12-speed

Brakes

BrakesBrakes SRAM RED AXS hydraulic disc, Paceline X 160/160mm rotors Brake Levers SRAM RED AXS hydraulic disc

Cockpit & Contact Points

HeadsetIntegrated, 1-1/8" - 1-1/4"
HandlebarCannondale SystemBar Road SL, ultralight, full carbon integrated bar/stem: 90x380mm (44-52cm), 100x380mm (54-56cm), 110x380mm (58cm), 110x400mm (61cm)
StemCannondale SystemBar Road SL, ultralight, full carbon integrated bar/stem
SaddleFizik Vento Antares 00, carbon shell and rails, 140mm
SeatpostCannondale C1 Aero 40 Carbon V2, Ti Hardware, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)

Wheels & Tires

HubsDT Swiss 180 DICUT, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
RimsDT Swiss ARC 1100 DICUT DB 38, carbon, 20mm inner width, 38mm depth
SpokesDT Swiss Carbon Spoke
Front TireVittoria Corsa Pro, 700x28c Tube Type, TPU tube optimized
Rear TireVittoria Corsa Pro, 700x28c Tube Type, TPU tube optimized
Wheel Size700c

Geometry

2 sizes · 17 measurements

Frame measurements by size.

All geometry measurements2 sizes · 17 measurements
Measurement4448
Seat tube400 mm429 mm
Effective top tube510 mm522 mm
Top tube492 mm503 mm
Head tube89 mm101 mm
Head-tube angle70.9°71.2°
Seat-tube angle74.5°74°
Chainstay / rear center410 mm410 mm
Wheelbase980 mm985 mm
Bottom-bracket drop74 mm74 mm
Bottom-bracket height269 mm269 mm
Reach373 mm376 mm
Stack495 mm508 mm
Standover height694 mm717 mm
Fork offset / rake55 mm55 mm
Front center582 mm586 mm
Trail60 mm58 mm
Wheel size700c700c

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes48/35T · 10–30T · 12-speed
Lowest1.17:1 Highest4.80:1 Total range411%
Estimated speed At 90 RPM Lowest gear8.3 mph Highest gear34.3 mph

Rear tire: 700C×28.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

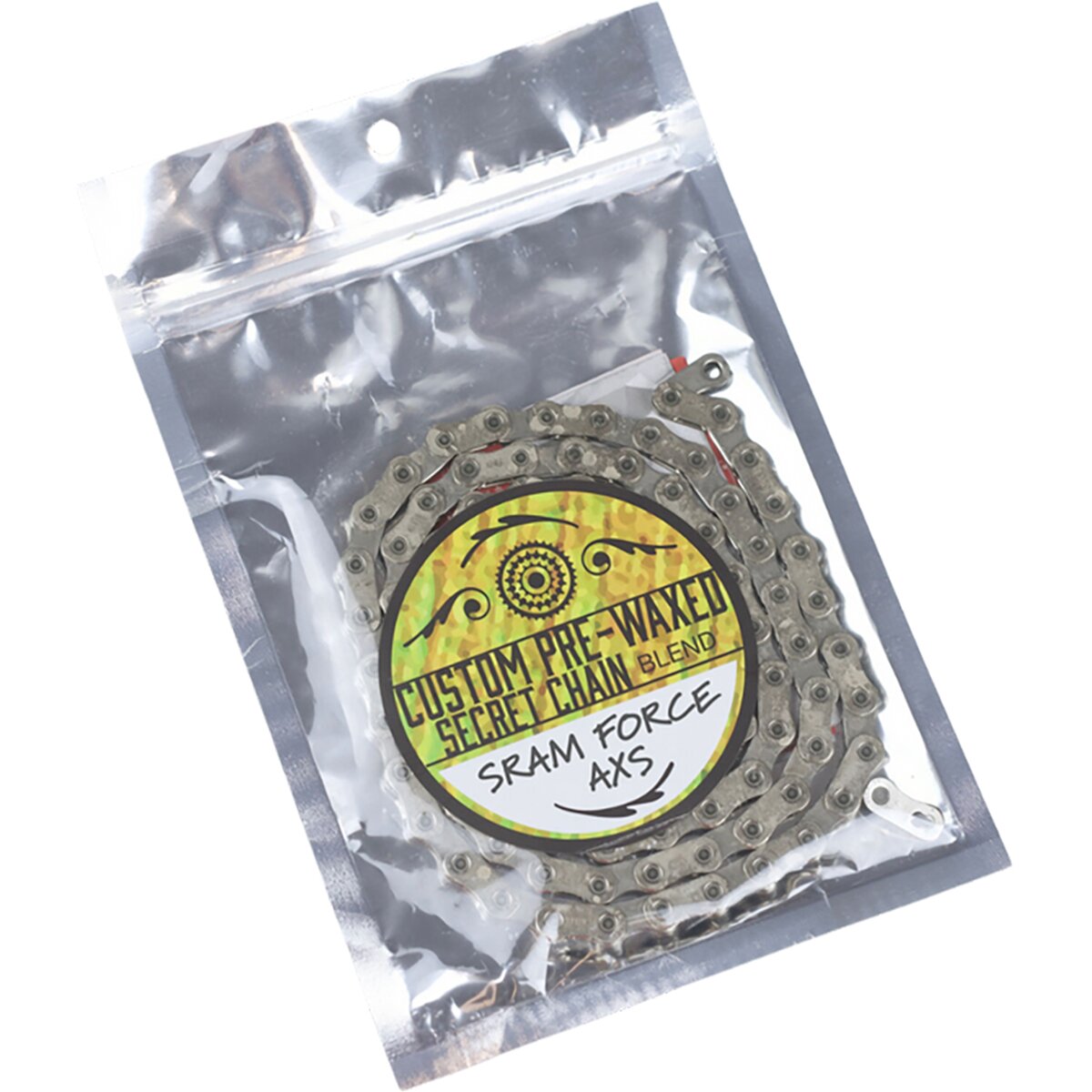

Chain · Original
SRAM RED

12-speed

Retailer offers
Cassette / rear cogs · Original
SRAM RED XG-1290

10-30, 12-speed

Retailer offers

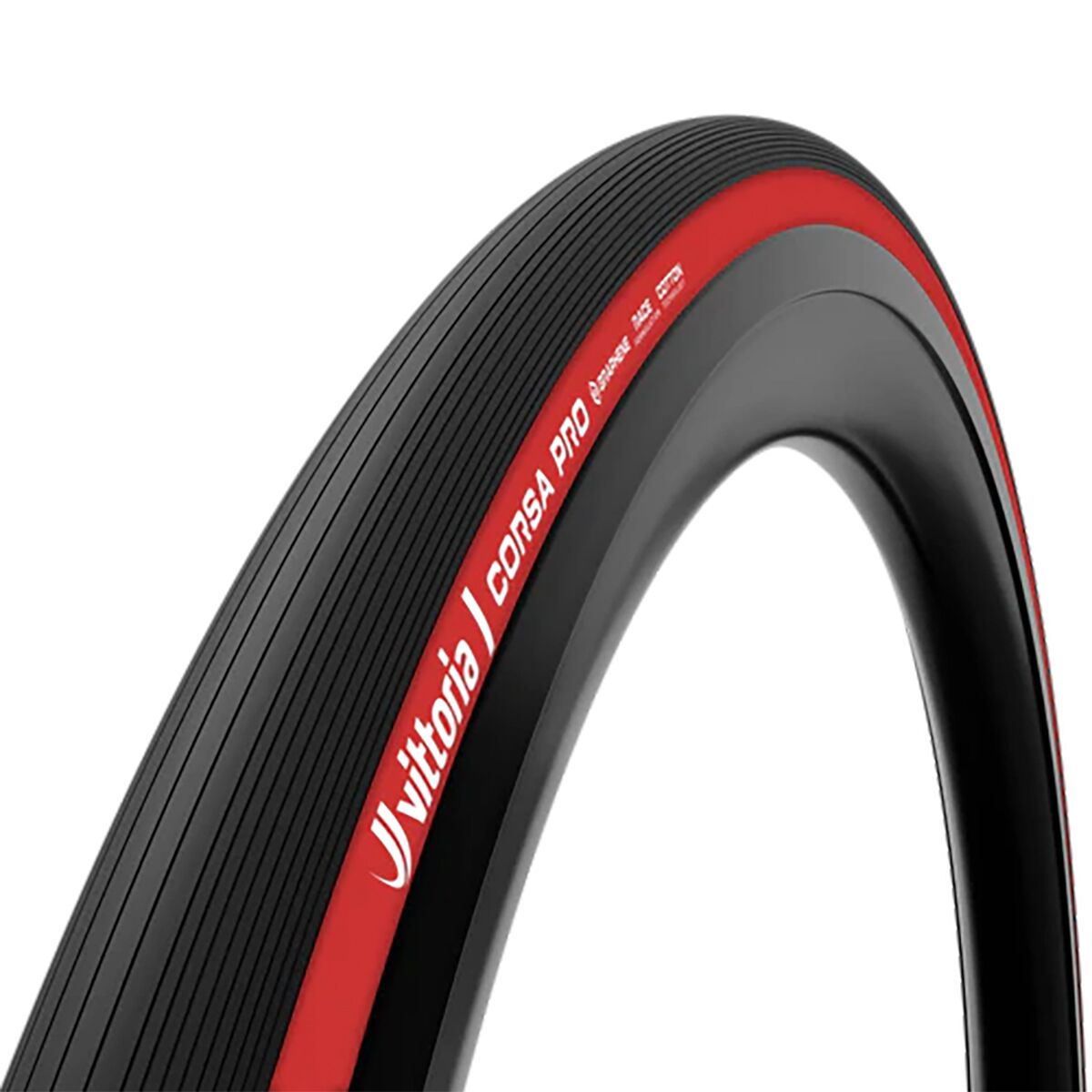

Front tire · Original
Vittoria Corsa Pro

700x28c Tube Type, TPU tube optimized

Retailer offers
Other replacement options (1)
More parts (7)Fewer parts

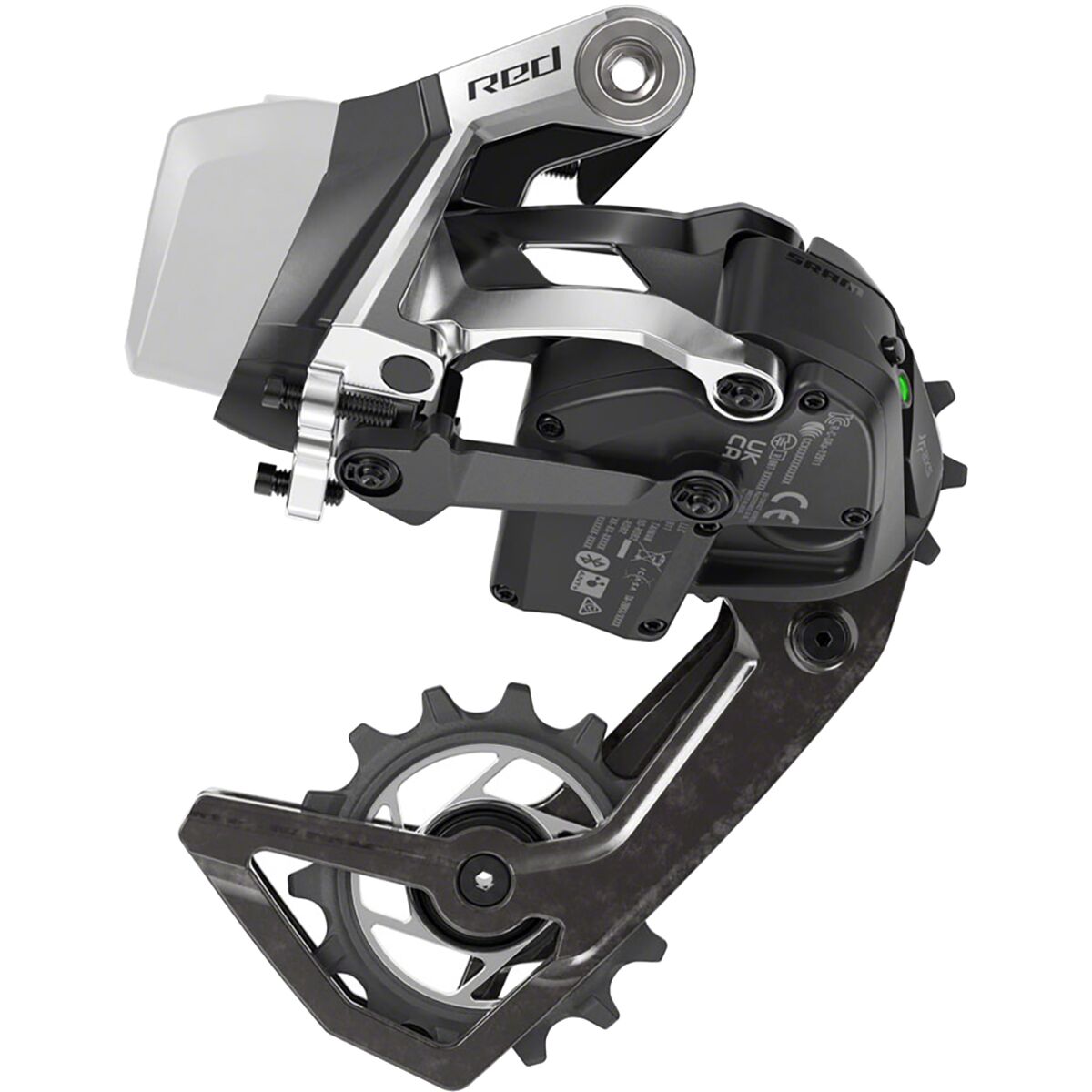

Rear derailleur · Original
SRAM RED AXS

12-speed

Retailer offers
Saddle · Original
Fizik Vento Antares 00

carbon shell and rails, 140mm

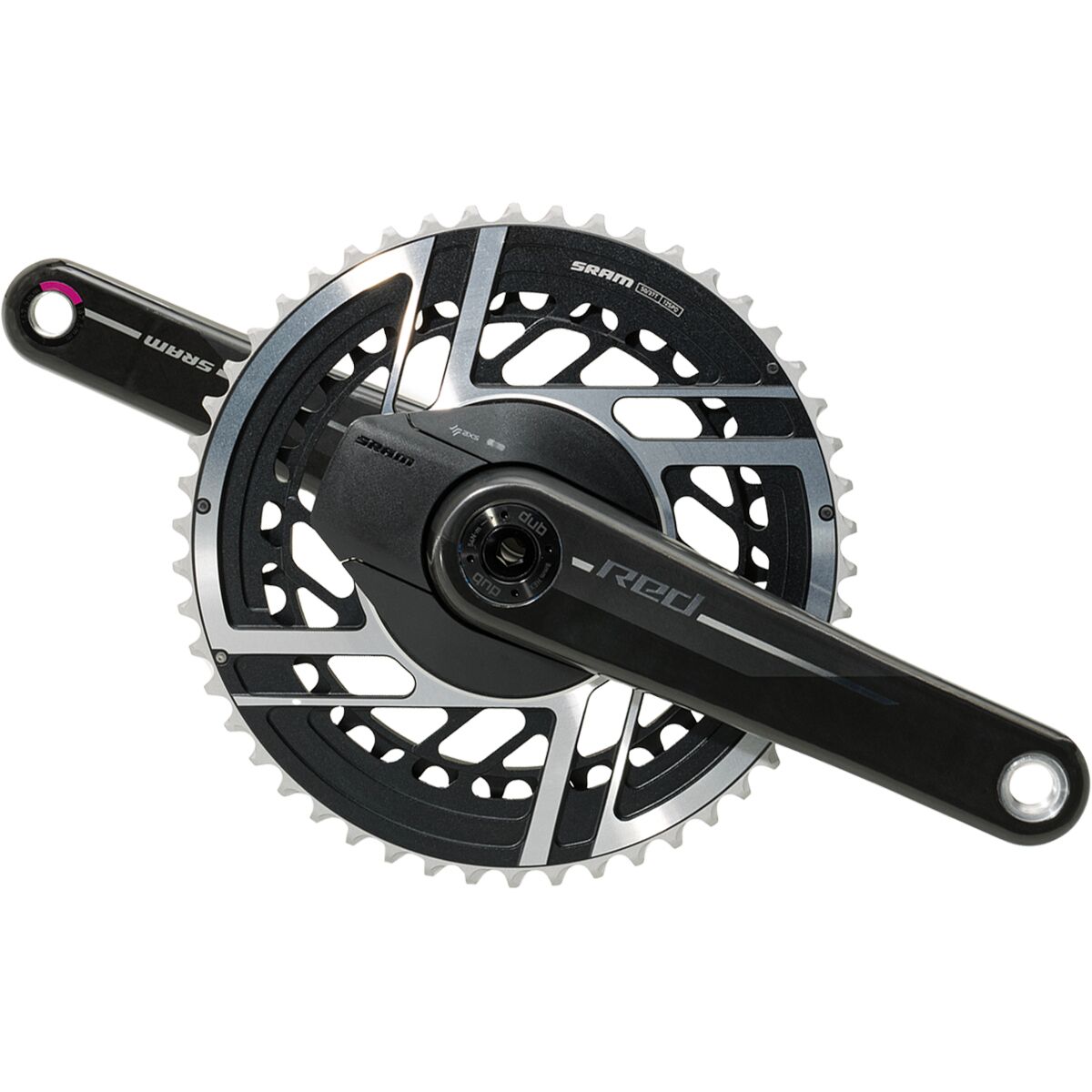

Crankset · Original
SRAM RED AXS Power Meter

48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)

Front derailleur · Original
SRAM RED AXS
Shifters · Original
SRAM RED AXS

2x12-speed

Rims · Original
DT Swiss ARC 1100 DICUT DB 38

carbon, 20mm inner width, 38mm depth

Hubs · Original
DT Swiss 180 DICUT

SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Vittoria Corsa Pro, 700x28c Tube Type, TPU tube optimized
Rear tire
Vittoria Corsa Pro, 700x28c Tube Type, TPU tube optimized
Drivetrain
12-speed
Bottom bracket / shell
CeramicSpeed BB Alpha for BSA DUB
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: LAB71 SuperSix EVO, Gen 5, Ultralight Series 0 Carbon, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH · Fork: LAB71 SuperSix EVO, Gen 5, Ultralight Series 0 Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) · Carbon fiber

Archived: Shifters: SRAM RED AXS, 2x12-speed · Front derailleur: SRAM RED AXS · Rear derailleur: SRAM RED AXS, 12-speed · Crankset: SRAM RED AXS Power Meter, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm) · Bottom bracket: CeramicSpeed BB Alpha for BSA DUB · Rear cogs: SRAM RED XG-1290, 10-30, 12-speed · Chain: SRAM RED, 12-speed

Archived: Brakes: Brakes SRAM RED AXS hydraulic disc, Paceline X 160/160mm rotors Brake Levers SRAM RED AXS hydraulic disc

Archived: Wheel size: 700c · Rims: DT Swiss ARC 1100 DICUT DB 38, carbon, 20mm inner width, 38mm depth · Hubs: DT Swiss 180 DICUT, SINC ceramic bearings, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36 · Front tire: Vittoria Corsa Pro, 700x28c Tube Type, TPU tube optimized · Rear tire: Vittoria Corsa Pro, 700x28c Tube Type, TPU tube optimized

Controls and contact points

Archived: Headset: Integrated, 1-1/8" - 1-1/4" · Handlebar: Cannondale SystemBar Road SL, ultralight, full carbon integrated bar/stem: 90x380mm (44-52cm), 100x380mm (54-56cm), 110x380mm (58cm), 110x400mm (61cm) · Stem: Cannondale SystemBar Road SL, ultralight, full carbon integrated bar/stem · Seatpost: Cannondale C1 Aero 40 Carbon V2, Ti Hardware, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm) · Saddle: Fizik Vento Antares 00, carbon shell and rails, 140mm
