Velopedia Bicycle Archive
Hybrid bicycle from the Velopedia specification archive.
Recently checked market
1 close matchMove, scroll, tap or type to start the protected update.
Velopedia analysis
The 418% cassette range describes the available gearing more clearly than the component-group name alone. Hydraulic disc brakes shift routine service toward pad and rotor condition, fluid leaks and use of the correct bleed fluid. The rims and tires are tubeless-ready, but that label does not confirm the bike is currently set up without tubes; tape, valves, sealant and tire condition still matter.
Used-bike inspection
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

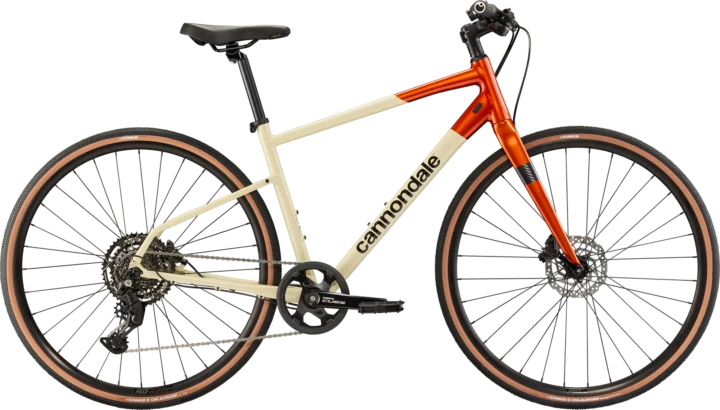

Archived: 2026 Cannondale Quick 2 · Hybrid · Published sizes: XS; XL; MD; SM; LG
Archived: Frame: Quick, SmartForm C3 Alloy, tapered head tube, Straightshot hidden cable routing, post mount disc, rack/fender/Si kickstand mounts · Fork: Quick, full carbon, 12x100mm thru-axle, 1-1/4" to 1-1/8" tapered steerer, flat mount disc, fender mounts · Carbon fiber
Archived: Shifters: Shimano CUES U4000, RapidFire, 9-speed · Rear derailleur: Shimano CUES U4000, 9-speed · Crankset: Shimano CUES 4000, 40T · Bottom bracket: Shimano UN101, square taper · Rear cogs: Shimano CUES, LinkGlide, 11-46, 9-speed · Chain: KMC XGlide
Archived: Brakes: Brakes Shimano MT200 hydraulic disc, 160/160mm RT10 centerlock rotors Brake Levers Shimano MT-201 hydraulic disc
Archived: Wheel size: 700c · Rims: Cannondale RD 2.1 Disc, double wall w/eyelet, 32h, tubeless-ready · Hubs: (F) Shimano TC500, 12x100mm E-thru, centerlock, (R) Shimano QC400 QR, 135x9mm, centerlock · Front tire: Schwalbe G-One Allround, 700x35c, tubeless ready · Rear tire: Schwalbe G-One Allround, 700x35c, tubeless ready
Archived: Headset: FSA Sealed Bearing, integrated, 1-1/4"-1-1/8" · Handlebar: Cannondale 3 Riser, 6061 Alloy, 18mm rise, 8° back, 4° up, 680mm · Stem: Cannondale 3 Intellimount, Alloy, 31.8mm, with Universal Phone Clamp and SP-Connect SPC+ mount · Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm (XS-LG), 400mm (XL-2XL) · Saddle: Selle Royal Vaia Moderate
Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
| Frame Construction | Quick, SmartForm C3 Alloy, tapered head tube, Straightshot hidden cable routing, post mount disc, rack/fender/Si kickstand mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | Quick, full carbon, 12x100mm thru-axle, 1-1/4" to 1-1/8" tapered steerer, flat mount disc, fender mounts |
| Fork Material | Carbon fiber |
| Shifters | Shimano CUES U4000, RapidFire, 9-speed |
|---|---|
| Rear Derailleur | Shimano CUES U4000, 9-speed |
| Crankset | Shimano CUES 4000, 40T |
| Bottom Bracket | Shimano UN101, square taper |
| Rear Cogs | Shimano CUES, LinkGlide, 11-46, 9-speed |
| Chain | KMC XGlide |
| Brakes | Brakes Shimano MT200 hydraulic disc, 160/160mm RT10 centerlock rotors Brake Levers Shimano MT-201 hydraulic disc |
|---|
| Headset | FSA Sealed Bearing, integrated, 1-1/4"-1-1/8" |
|---|---|
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 18mm rise, 8° back, 4° up, 680mm |
| Stem | Cannondale 3 Intellimount, Alloy, 31.8mm, with Universal Phone Clamp and SP-Connect SPC+ mount |
| Saddle | Selle Royal Vaia Moderate |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2x350mm (XS-LG), 400mm (XL-2XL) |
| Hubs | (F) Shimano TC500, 12x100mm E-thru, centerlock, (R) Shimano QC400 QR, 135x9mm, centerlock |
|---|---|
| Rims | Cannondale RD 2.1 Disc, double wall w/eyelet, 32h, tubeless-ready |
| Spokes | Stainless Steel, 14g |
| Front Tire | Schwalbe G-One Allround, 700x35c, tubeless ready |
| Rear Tire | Schwalbe G-One Allround, 700x35c, tubeless ready |
| Wheel Size | 700c |
Size-specific frame data
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube | 350 mm | 400 mm | 450 mm | 500 mm | 550 mm | 600 mm |
| Effective top tube | 552 mm | 567 mm | 583 mm | 598 mm | 613 mm | 628 mm |
| Top tube | 530 mm | 543 mm | 558 mm | 574 mm | 591 mm | 610 mm |
| Head tube | 112 mm | 133 mm | 158 mm | 184 mm | 209 mm | 234 mm |
| Head-tube angle | 70° | 71° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1046 mm | 1053 mm | 1069 mm | 1086 mm | 1102 mm | 1118 mm |
| Bottom-bracket drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Bottom-bracket height | 286 mm | 286 mm | 286 mm | 286 mm | 286 mm | 286 mm |
| Reach | 390 mm | 398 mm | 406 mm | 414 mm | 422 mm | 430 mm |
| Stack | 530 mm | 554 mm | 578 mm | 602 mm | 626 mm | 650 mm |
| Standover height | 663 mm | 706 mm | 743 mm | 782 mm | 821 mm | 855 mm |
| Fork offset / rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Front center | 620 mm | 627 mm | 643 mm | 660 mm | 676 mm | 692 mm |
| Trail | 70 mm | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Fork length / axle-to-crown | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Geometry source: Exact published geometry image match ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
