2019 Cannondale SystemSix Hi-MOD Dura-Ace Di2

Archived: 2019 Cannondale SystemSix Hi-MOD Dura-Ace Di2 · Road · Published sizes: 47, 51, 54, 56, 58, 60, 62

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: ALL-NEW SystemSix, BallisTec Hi-MOD Carbon, Di2 ready, SAVE, BB30a, flat mount, Speed Release thru-axle · Fork: ALL-NEW SystemSix, BallisTec Hi-MOD Carbon, Speed Release thru-axle · Carbon

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

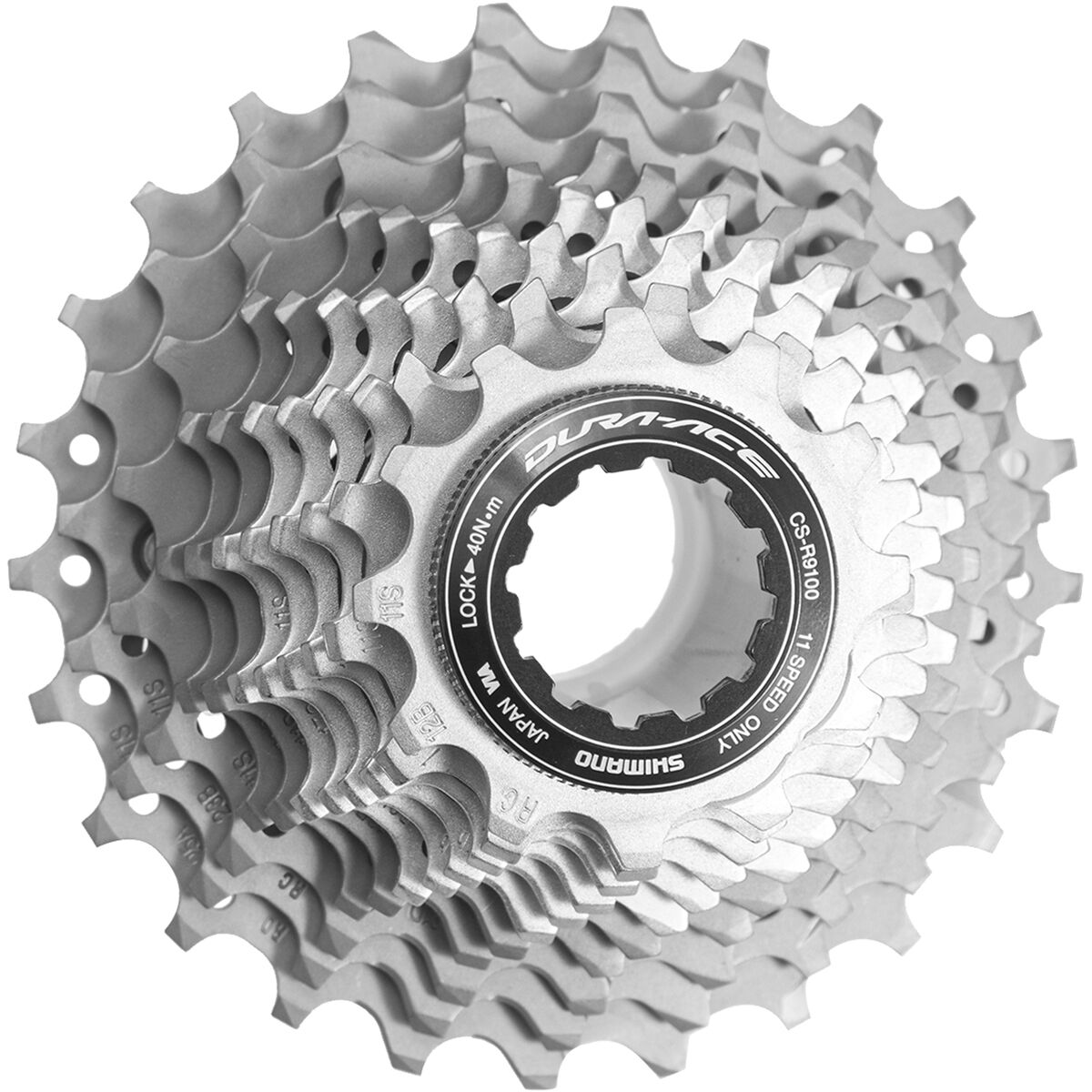

Archived: Shifters: Shimano Dura-Ace Di2 hydro disc, 2x11 · Front derailleur: Shimano Dura-Ace Di2, braze on · Rear derailleur: Shimano Dura-Ace Di2 · Crankset: Cannondale HollowGram SiSL2, BB30a w/ Power2Max NG Eco Power Meter and Vision rings, 52/36 · Bottom bracket: Cannondale Alloy PressFit30 · Rear cogs: Shimano Dura-Ace, 11-30, 11-speed · Chain: Shimano Dura-Ace, 11-speed

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano Dura-Ace hydro disc, 160/140mm RT900 rotors

• Inspect pads, rotors, calipers and the complete cable or hose path. Both levers should feel consistent and both calipers should release without persistent rubbing.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

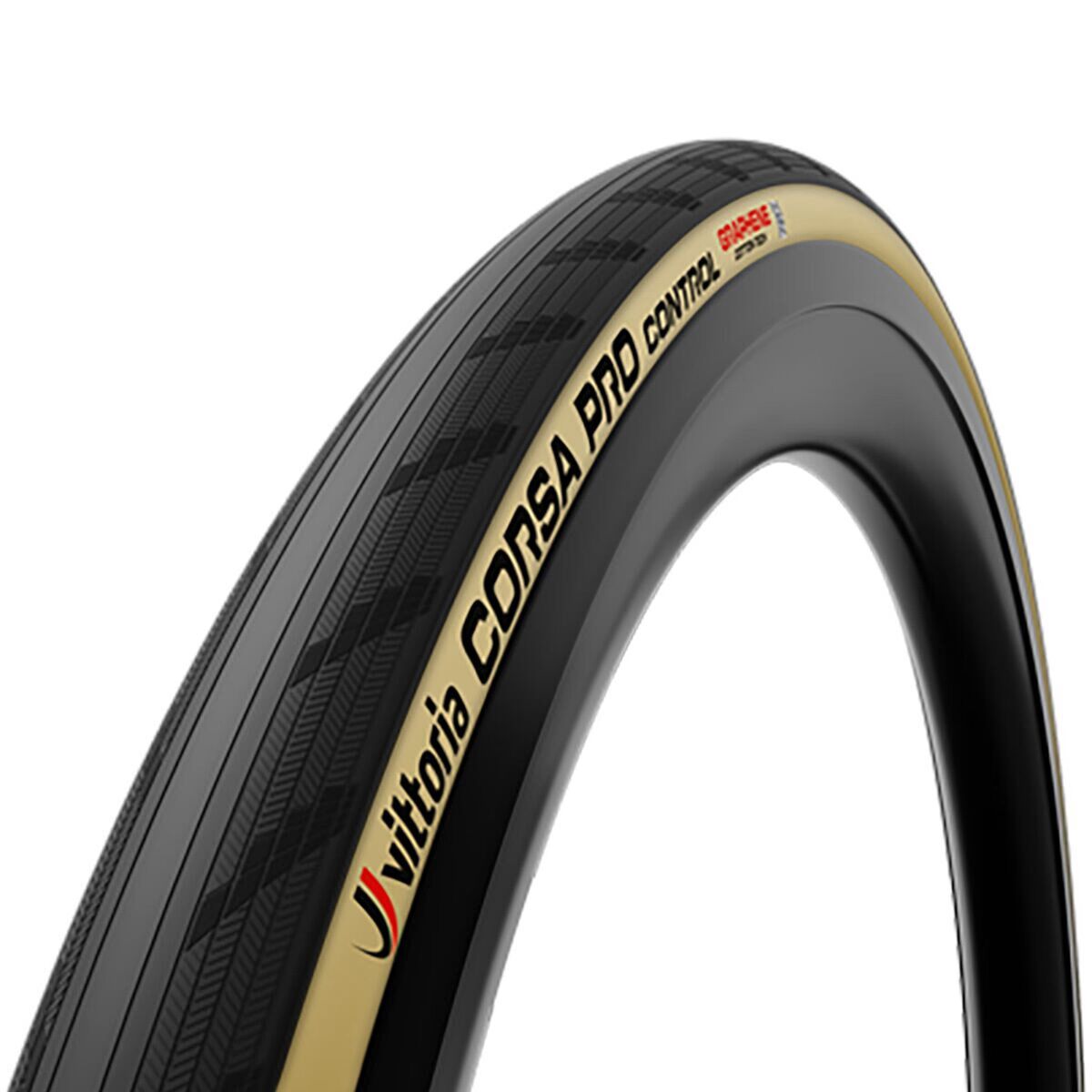

Archived: Wheel size: 700c · Rims: HollowGram KNØT64 Rim, Carbon, 20h front, 24h rear, 64mm deep, 21mm ID, tubeless ready · Hubs: HollowGram KNØT, sealed bearing 12x100 front, 12x142 rear centerlock w/ DT Swiss internals · Front tire: Vittoria Rubino Pro Speed, 700 x 26mm (23c) · Rear tire: Vittoria Rubino Pro Speed, 700 x 26mm (23c)

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: Tapered, 1-1/8” upper, 1-1/4” lower bearing · Handlebar: Cannondale KNØT SystemBar, carbon, 8° pitch adjust · Stem: Cannondale KNØT SystemBar, alloy w/ cable cover · Seatpost: Cannondale KNØT Carbon, 330mm · Saddle: Prologo Dimension NACK · Pedals: Not Included

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
