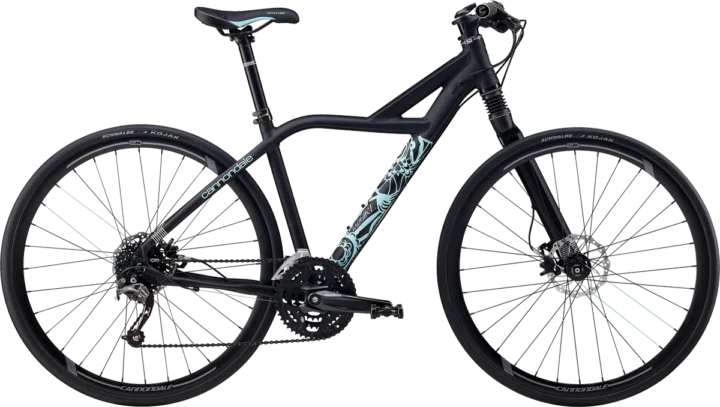

2012 Cannondale Bad Girl 1

Archived: Frame: Optimized 6061 Alloy · Fork: HeadShok Solo DL50 50mm

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: HeadShok Solo DL50 50mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano Deore · Front derailleur: Shimano Deore · Rear derailleur: Shimano SLX · Crankset: Shimano M431 48/36/26t · Bottom bracket: Tange Cartridge · Cassette: Sunrace CSM969 9spd 11-32 · Chain: KMC Z99

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Magura MT2 160mm

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Hubs: Cannondale Lefty SL Shimano M525 Deore · Front tire: Schwalbe Kojak 700x28c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: Cannondale HeadShok Si · Handlebar: Cannondale Si Urban · Stem: Cannondale Si Urban · Seatpost: Cannondale C2 · Saddle: Cannondale Bad Girl · Pedals: Cannondale Urban 6point3 alloy

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
