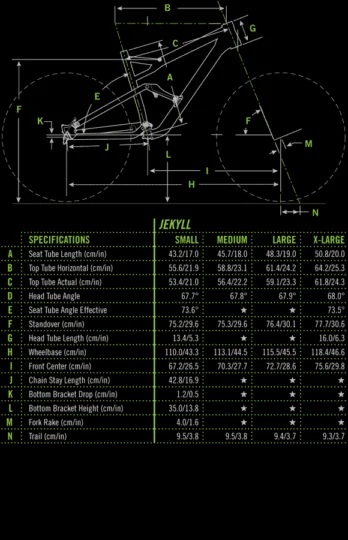

2011 Cannondale Jekyll Carbon 1

Archived: Frame: Bonded/monocoque · Fork: Fox 32 Talas FIT RLC w/15QR Thru Axle, 150mm travel · Single

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.

Archived: Fork: Fox 32 Talas FIT RLC w/15QR Thru Axle, 150mm travel · Rear shock: Fox DYAD RT2, 90 - 150mm adjustable travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Group: Mountain Mix · Shifters: Shimano XT · Front derailleur: Shimano XT · Rear derailleur: Shimano XTR · Crankset: FSA SL-K, 24/32/44 teeth · Bottom bracket: FSA BB30 · Cassette: Shimano XT · Rear cogs: 10-speed, 11 - 36 teeth · Chain: Shimano HG74

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Avid Elixir CR carbon brakes, Avid Elixir CR Carbon levers

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 26" wheels · Rims: SunRingle BlackFlag Pro · Hubs: SunRingle BlackFlag Pro · Front tire: 26 x 2.4" Schwalbe Nobby Nic PaceStar

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/2" integrated Tange Seiki · Handlebar: FSA SL-K riser · Stem: Cannondale C2 · Seatpost: RockShox Reverb, 31.6mm diameter · Saddle: Fi'zi:k Gobi Mg · Pedals: Not included

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.
