Lowest0.75:1
Highest3.82:1
Total range509%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

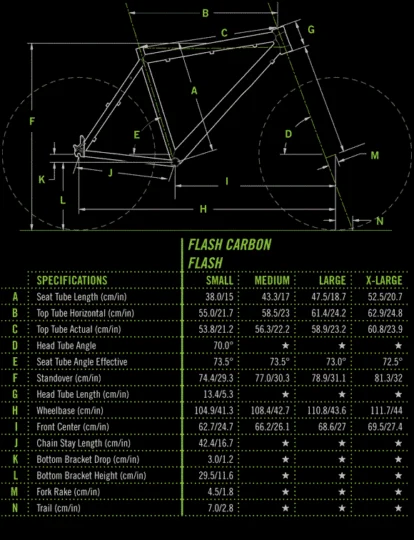

2011 Cannondale Flash Carbon 4
Original specifications: SRAM X9 · 10-speed · mechanical rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #22364- Model year
- 2011
- Category
- Mountain
- Sizes
- S, M, L, XL
- Colors
- Race Red w/Magnesium White accents (gloss)
- In this record
- 26 specifications · 2 archived images
Original buildCarbon · Mountain Mix · 26" wheels
Frameset
| Frame Construction | Bonded/monocoque |
|---|---|
| Frame Material | Carbon |
| Fork | Lefty Speed w/PBR, 100mm travel |
| Fork Material | Single |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X.7 |
| Front Derailleur | SRAM X.7 |
| Rear Derailleur | SRAM X.9 crb |
| Crankset | SRAM S1400, 27/42 teeth |
| Bottom Bracket | Sram BB30 |
| Cassette | Shimano |
| Rear Cogs | 10-speed, 11 - 36 teeth |
| Chain | KMC X10SL |
| Pedals | Not included |
Brakes
| Brakes | Avid Elixir R |
|---|
Cockpit & Contact Points
| Headset | HeadShok |
|---|---|
| Handlebar | Cannondale C2 |
| Handlebar Extensions | Not included |
| Stem | Cannondale C2 |
| Saddle | Prologo X10 STN |
| Seatpost | Cannondale C1 HeadShok, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Lefty SL, Rear: SRAM X.9 |
|---|---|
| Rims | Mavic XM317, 32-hole |
| Spokes | DT Swiss Competition |
| Front Tire | 26 x 2.1" Schwalbe Rocket Ron Performace |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Cannondale C1 HeadShok
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
26 x 2.1" Schwalbe Rocket Ron Performace
Schwalbe Rocket Ron Performace on eBaySponsored links
More parts (7)Fewer parts
Sram BB30
Prologo X10 STN
SRAM S1400
27/42 teeth
SRAM X.7
SRAM X.9 crb
SRAM X.7
Mavic XM317
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.1" Schwalbe Rocket Ron Performace
- Drivetrain
- 10-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- Sram BB30
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Bonded/monocoque · Fork: Lefty Speed w/PBR, 100mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Lefty Speed w/PBR, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: SRAM X.7 · Front derailleur: SRAM X.7 · Rear derailleur: SRAM X.9 crb · Crankset: SRAM S1400, 27/42 teeth · Bottom bracket: Sram BB30 · Cassette: Shimano · Rear cogs: 10-speed, 11 - 36 teeth · Chain: KMC X10SL
Brakes
Inspect the brakes →Archived: Brakes: Avid Elixir R
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Mavic XM317, 32-hole · Hubs: Front: Lefty SL, Rear: SRAM X.9 · Front tire: 26 x 2.1" Schwalbe Rocket Ron Performace
Controls and contact points
Archived: Headset: HeadShok · Handlebar: Cannondale C2 · Stem: Cannondale C2 · Seatpost: Cannondale C1 HeadShok, 31.6mm diameter · Saddle: Prologo X10 STN · Pedals: Not included
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
