Lowest1.50:1
Highest4.82:1
Total range321%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

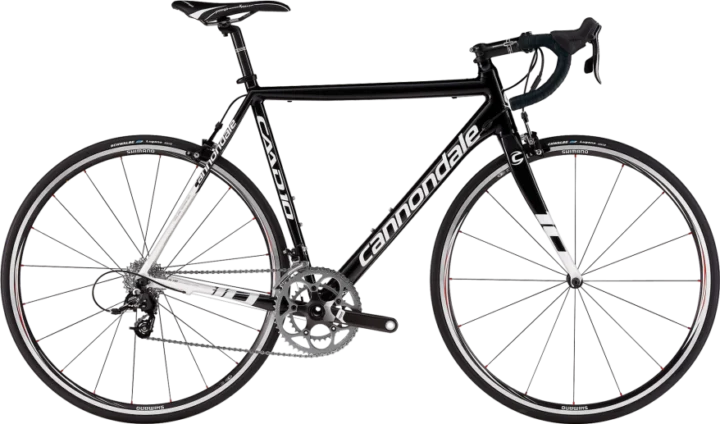

2011 Cannondale CAAD10 4 Rival
Original specifications: SRAM Rival drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #22391- Model year
- 2011
- Category
- Road
- Sizes
- 48cm, 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 63cm
- Colors
- Jet Black w/Magnesium White (gloss), Magnesium White w/Indigo Blue (gloss)
- In this record
- 26 specifications · 4 archived images
Model history 3 other years
Browse other years
Compare side by side
Identification clues
2011 archived details
- Published colors
- Jet Black w/Magnesium White (gloss), Magnesium White w/Indigo Blue (gloss)
- Frame
- Carbon
- Original equipment
- SRAM Rival
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon · SRAM Rival · 700c wheels
Frameset
| Frame Construction | Bonded/monocoque |
|---|---|
| Frame Material | Carbon |
| Fork | CAAD10 |
| Fork Material | Carbon, aero crown |
Drivetrain
| Component Group | SRAM Rival |
|---|---|
| Shifters | SRAM Rival |
| Front Derailleur | SRAM Rival, braze-on |
| Rear Derailleur | SRAM Rival |
| Crankset | SRAM Force BB30, 39/53 teeth |
| Bottom Bracket | Sram BB30 |
| Cassette | SRAM PG-1070 |
| Rear Cogs | 10-speed, 11 - 26 teeth |
| Chain | KMC DX10SC |
| Pedals | Not included |
Brakes
| Brakes | SRAM Dual Pivot brakes, SRAM Rival levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" - 1 1/4" tapered CAAD10 |
|---|---|
| Handlebar | Cannondale C3 Compact |
| Handlebar Extensions | Not included |
| Stem | Cannondale C3 |
| Saddle | Prologo Kappa Pas |
| Seatpost | Cannondale C2, 31.6mm diameter |
Wheels & Tires
| Hubs | Shimano RS10 |
|---|---|
| Rims | Shimano RS10 |
| Spokes | Shimano RS10 |
| Front Tire | 700 x 23c Schwalbe Lugano |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Schwalbe Lugano
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Schwalbe Lugano on eBaySponsored links
Cannondale C2
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
More parts (8)Fewer parts
Sram BB30
Prologo Kappa Pas
SRAM Force BB30
39/53 teeth
SRAM Rival
braze-on
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
SRAM Rival
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
SRAM Rival
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano RS10
Shimano RS10
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Schwalbe Lugano
- Drivetrain
- 10-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- Sram BB30
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Bonded/monocoque · Fork: CAAD10 · Carbon, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: SRAM Rival · Shifters: SRAM Rival · Front derailleur: SRAM Rival, braze-on · Rear derailleur: SRAM Rival · Crankset: SRAM Force BB30, 39/53 teeth · Bottom bracket: Sram BB30 · Cassette: SRAM PG-1070 · Rear cogs: 10-speed, 11 - 26 teeth · Chain: KMC DX10SC
Brakes
Inspect the brakes →Archived: Brakes: SRAM Dual Pivot brakes, SRAM Rival levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Shimano RS10 · Hubs: Shimano RS10 · Front tire: 700 x 23c Schwalbe Lugano
Controls and contact points
Archived: Headset: 1 1/8" - 1 1/4" tapered CAAD10 · Handlebar: Cannondale C3 Compact · Stem: Cannondale C3 · Seatpost: Cannondale C2, 31.6mm diameter · Saddle: Prologo Kappa Pas · Pedals: Not included
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery4 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
