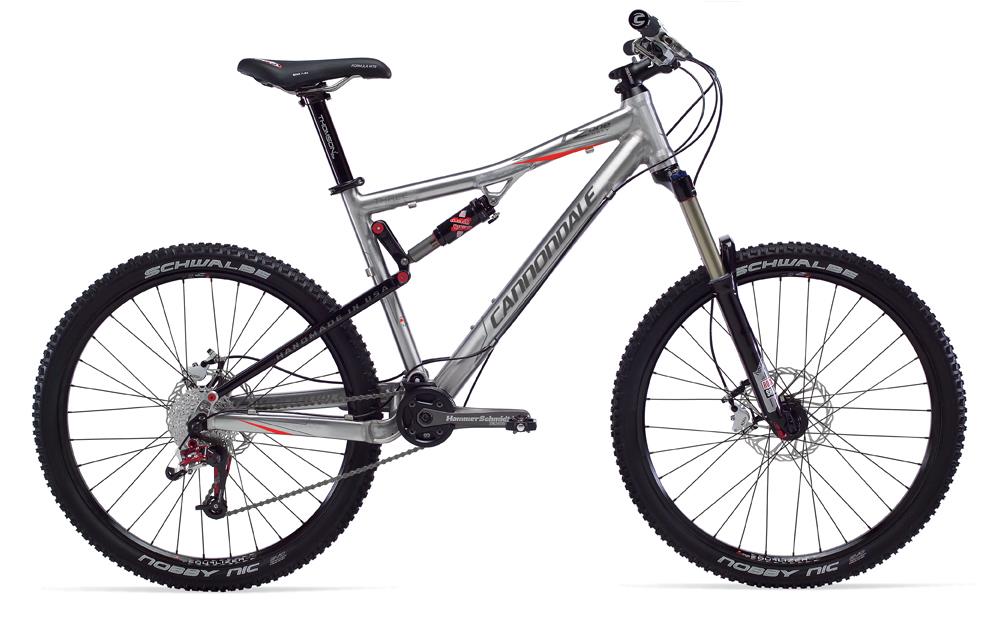

2010 Cannondale RZ One Forty 3Z
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $3,949.00
- Sizes
- S, M, L, X
- Colors
- Galvenized
- Archive ID
- 20613
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | RZ One Forty |
| Fork | RockShox Revelation Team Air U-Turn, 140mm travel |
| Fork Material | Aluminum, single crown |
| Rear Shock | RockShox Monarch 4.2, 140mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X-9 Trigger |
| Front Derailleur | TruVativ Hammerschmidt, Internal Transmission Crank |
| Rear Derailleur | SRAM X-9 |
| Crankset | Truvativ Hammerschmidt AM, 38/24 teeth |
| Bottom Bracket | TruVativ Hammerschmidt |
| Cassette | SRAM PG-970 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | KMC X9 CP 9-speed |
| Pedals | Crank Brothers Candy |
Brakes
| Brakes | Avid Elixer R w/180mm rotor brakes, Avid Elixer R levers |
|---|
Cockpit & Contact Points
| Headset | 1.5" Integrated Tange Custom |
|---|---|
| Handlebar | TruVativ Hussefelt |
| Handlebar Extensions | Not included |
| Stem | Truvativ AKA 1.5 |
| Saddle | SDG formula MTR |
| Seatpost | Cannondale C3, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Formula DC91 Thru-20, Rear: Sun Dirty Flea |
|---|---|
| Rims | Sun EQ27, 32-hole |
| Spokes | DT Swiss Competition |
| Front Tire | 26 x 2.25" Schwalbe Nobby Nic |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
