Lowest0.65:1
Highest4.00:1
Total range618%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 29×2.25; rear size isn’t listed.
Velopedia Bicycle Archive

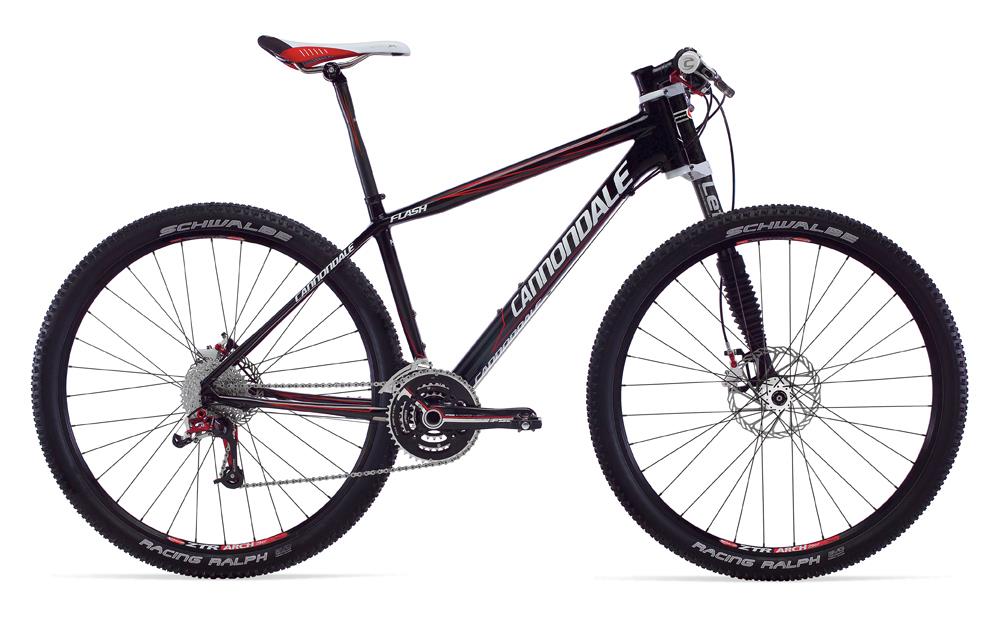

2010 Cannondale Flash Carbon 29'er 1
Original specifications: Mountain Mix drivetrain · 29" wheels.
Planning to sell? Draft your listing
At a glance
Archive #20653- Model year
- 2010
- Category
- Mountain
- Original MSRP
- $4,799.00
- Sizes
- M, L, X
- Colors
- Race Red
- In this record
- 26 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Race Red
- Frame
- New Flash Carbon 29
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildNew Flash Carbon 29 · Mountain Mix · 29" wheels
Frameset
| Frame Construction | Carbon |
|---|---|
| Frame Material | New Flash Carbon 29 |
| Fork | Cannondale Lefty 29'er Carbon SL w/DLR, 80mm travel |
| Fork Material | Carbon, dual crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X-0 trigger |
| Front Derailleur | Shimano XT |
| Rear Derailleur | SRAM X-0 |
| Crankset | FSA K-Force Light, 44/32/22 teeth |
| Bottom Bracket | FSA BB30 |
| Cassette | SRAM PG-990 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | KMC X9 SL 9-speed |
| Pedals | Crank Brothers Egg Beater |
Brakes
| Brakes | Avid Elixer CR Carbon w/180mm rotor front/Avid Elixer CR Carbon w/160mm rotor rear brakes, Avid Elixer CR Carbon levers |
|---|
Cockpit & Contact Points
| Headset | HeadShok |
|---|---|
| Handlebar | TruVativ Stylo World Cup flat |
| Handlebar Extensions | Not included |
| Stem | Cannondale |
| Saddle | Fizik Gobi XM |
| Seatpost | Cannondale Custom SL, 27.2mm diameter |
Wheels & Tires
| Hubs | Cannondale Lefty SL |
|---|---|
| Rims | Stans ZTR Arch 29, 32-hole |
| Spokes | DT Swiss Aerospeed |
| Front Tire | 29 x 2.25" Schwalbe Racing Ralph EVO |
| Wheel Size | 29" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
29 x 2.25" Schwalbe Racing Ralph EVO
Retailer offers
Vittoria Barzo G2.0 4C XC Trail 29in Tire Anthracite/Black, XC-Trail/TNT, 29x2.25
Replacement option
Schwalbe Racing Ralph Evolution on eBaySponsored links
Cannondale Custom SL
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (5)Fewer parts
FSA BB30
Fizik Gobi XM
FSA K-Force Light
44/32/22 teeth
Shimano XT
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 29 x 2.25" Schwalbe Racing Ralph EVO
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- FSA BB30
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon · Fork: Cannondale Lefty 29'er Carbon SL w/DLR, 80mm travel · Carbon, dual crown
Suspension
Evaluate the suspension →Archived: Fork: Cannondale Lefty 29'er Carbon SL w/DLR, 80mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: SRAM X-0 trigger · Front derailleur: Shimano XT · Rear derailleur: SRAM X-0 · Crankset: FSA K-Force Light, 44/32/22 teeth · Bottom bracket: FSA BB30 · Cassette: SRAM PG-990 · Rear cogs: 9-speed, 11 - 34 teeth · Chain: KMC X9 SL 9-speed
Brakes
Inspect the brakes →Archived: Brakes: Avid Elixer CR Carbon w/180mm rotor front/Avid Elixer CR Carbon w/160mm rotor rear brakes, Avid Elixer CR Carbon levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" wheels · Rims: Stans ZTR Arch 29, 32-hole · Hubs: Cannondale Lefty SL · Front tire: 29 x 2.25" Schwalbe Racing Ralph EVO
Controls and contact points
Archived: Headset: HeadShok · Handlebar: TruVativ Stylo World Cup flat · Stem: Cannondale · Seatpost: Cannondale Custom SL, 27.2mm diameter · Saddle: Fizik Gobi XM · Pedals: Crank Brothers Egg Beater
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
