Lowest0.69:1
Highest3.82:1
Total range555%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

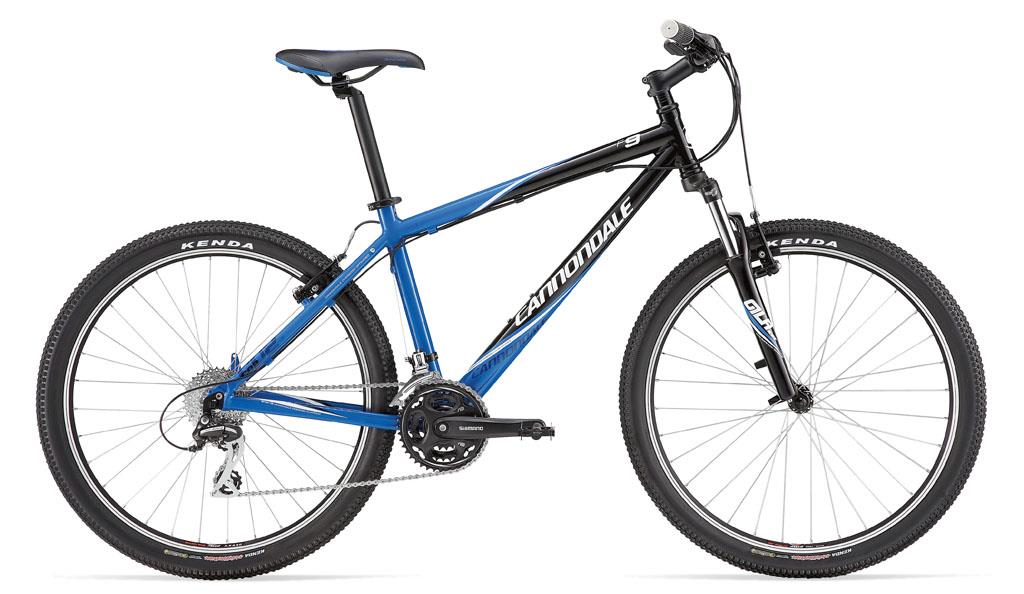

2010 Cannondale F9
Original specifications: Shimano Acera · 8-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #21790- Model year
- 2010
- Category
- Mountain
- Original MSRP
- $469.00
- Sizes
- S, M, L, X, J
- Colors
- Nu Team Blue, Red Race
- In this record
- 26 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Nu Team Blue, Red Race
- Frame
- CO2, 6061 butted
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCO2, 6061 butted · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | CO2, 6061 butted |
| Fork | RST Gila T, 80mm |
| Fork Material | Single |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano ST-EF50 |
| Front Derailleur | Shimano M311 |
| Rear Derailleur | Shimano Acera |
| Crankset | Shimano M311, 42/32/22 teeth |
| Bottom Bracket | Tange cartridge |
| Cassette | Sunrace M56 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC 8-Speed |
| Pedals | Platform Resin with Steel Cage |
Brakes
| Brakes | Tektro 836 V-Brake brakes, Shimano ST-EF50 levers |
|---|
Cockpit & Contact Points
| Headset | Tange ER2 Slim Stack |
|---|---|
| Handlebar | Cannondale C4 |
| Handlebar Extensions | Not included |
| Stem | Cannondale C4 |
| Saddle | Cannondale C3 Ergonomic Form |
| Seatpost | Cannondale C4, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Formula DC-20 Bolt-on, Rear: Formula DC-22 |
|---|---|
| Rims | Maddux EC 5.0 Double wall, 28-hole/32-hole |
| Spokes | Stainless, 15ga. (1.8mm) |
| Front Tire | 26 x 2.1" Kenda Small Block 8 |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Cannondale C4
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
KMC 8-Speed
Replacement search: 8-speed bicycle chain Before ordering: Check chain width and length.
More parts (4)Fewer parts
Tektro 836 V-Brake brakes
Shimano ST-EF50 levers
Shimano M311
42/32/22 teeth
Shimano Acera
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.1" Kenda Small Block 8
- Drivetrain
- 8-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- Tange cartridge
Equipment inspection checks 12 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RST Gila T, 80mm · Single
Suspension
Evaluate the suspension →Archived: Fork: RST Gila T, 80mm
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano ST-EF50 · Front derailleur: Shimano M311 · Rear derailleur: Shimano Acera · Crankset: Shimano M311, 42/32/22 teeth · Bottom bracket: Tange cartridge · Cassette: Sunrace M56 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC 8-Speed
Brakes
Inspect the brakes →Archived: Brakes: Tektro 836 V-Brake brakes, Shimano ST-EF50 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Maddux EC 5.0 Double wall, 28-hole/32-hole · Hubs: Front: Formula DC-20 Bolt-on, Rear: Formula DC-22 · Front tire: 26 x 2.1" Kenda Small Block 8
Controls and contact points
Archived: Headset: Tange ER2 Slim Stack · Handlebar: Cannondale C4 · Stem: Cannondale C4 · Seatpost: Cannondale C4, 31.6mm diameter · Saddle: Cannondale C3 Ergonomic Form · Pedals: Platform Resin with Steel Cage
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
