Lowest0.69:1
Highest4.00:1
Total range582%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

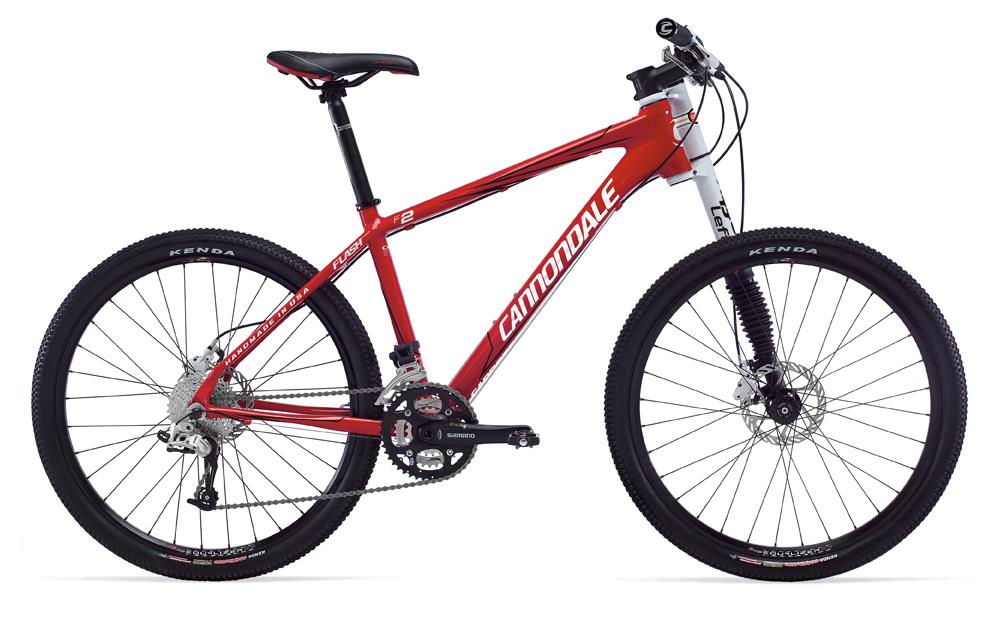

2010 Cannondale F2
Original specifications: Mountain Mix drivetrain · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #20645- Model year
- 2010
- Category
- Mountain
- Original MSRP
- $2,149.00
- Sizes
- S, M, L, X
- Colors
- Race Red
- In this record
- 26 specifications · archived image · original MSRP
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Race Red
- Frame
- Flash Hydro Formed Double Butted 6061 Alloy
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildFlash Hydro Formed Double Butted 6061 Alloy · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Flash Hydro Formed Double Butted 6061 Alloy |
| Fork | Cannondale Lefty Speed w/DLR, 110mm travel |
| Fork Material | Dual |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X-7 |
| Front Derailleur | SRAM X-7 |
| Rear Derailleur | SRAM X-7 |
| Crankset | Shimano FC-M521, 44/32/22 teeth |
| Bottom Bracket | Shimano BB-ES25 |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC X9 9-speed |
| Pedals | Crank Brothers Candy |
Brakes
| Brakes | Avid Elixer 5 w/160mm rotor brakes, Avid Elixer 5 Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | Cannondale HeadShok Si |
|---|---|
| Handlebar | Cannondale C3 |
| Handlebar Extensions | Not included |
| Stem | Cannondale HeadShok |
| Saddle | Cannondale C3 Ergonomic Form |
| Seatpost | Cannondale C3, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Cannondale Lefty SL, Rear: Shimano FH-M525 disc |
|---|---|
| Rims | Sun EQ25, 32-hole |
| Spokes | DT Swiss Competition |
| Front Tire | 26 x 2.1" Kenda Small Block 8 |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
SRAM PG-950
Retailer offers
SRAM PG-950 Cassette 9 Speed, 11-32T
Model match
SRAM PG-950 on eBaySponsored links
Cannondale C3
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
More parts (3)Fewer parts
Shimano BB-ES25
Shimano FC-M521
44/32/22 teeth
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.1" Kenda Small Block 8
- Drivetrain
- 9-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- Shimano BB-ES25
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Cannondale Lefty Speed w/DLR, 110mm travel · Dual
Suspension
Evaluate the suspension →Archived: Fork: Cannondale Lefty Speed w/DLR, 110mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: SRAM X-7 · Front derailleur: SRAM X-7 · Rear derailleur: SRAM X-7 · Crankset: Shimano FC-M521, 44/32/22 teeth · Bottom bracket: Shimano BB-ES25 · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 11 - 32 teeth · Chain: KMC X9 9-speed
Brakes
Inspect the brakes →Archived: Brakes: Avid Elixer 5 w/160mm rotor brakes, Avid Elixer 5 Hydraulic levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Sun EQ25, 32-hole · Hubs: Front: Cannondale Lefty SL, Rear: Shimano FH-M525 disc · Front tire: 26 x 2.1" Kenda Small Block 8
Controls and contact points
Archived: Headset: Cannondale HeadShok Si · Handlebar: Cannondale C3 · Stem: Cannondale HeadShok · Seatpost: Cannondale C3, 31.6mm diameter · Saddle: Cannondale C3 Ergonomic Form · Pedals: Crank Brothers Candy
