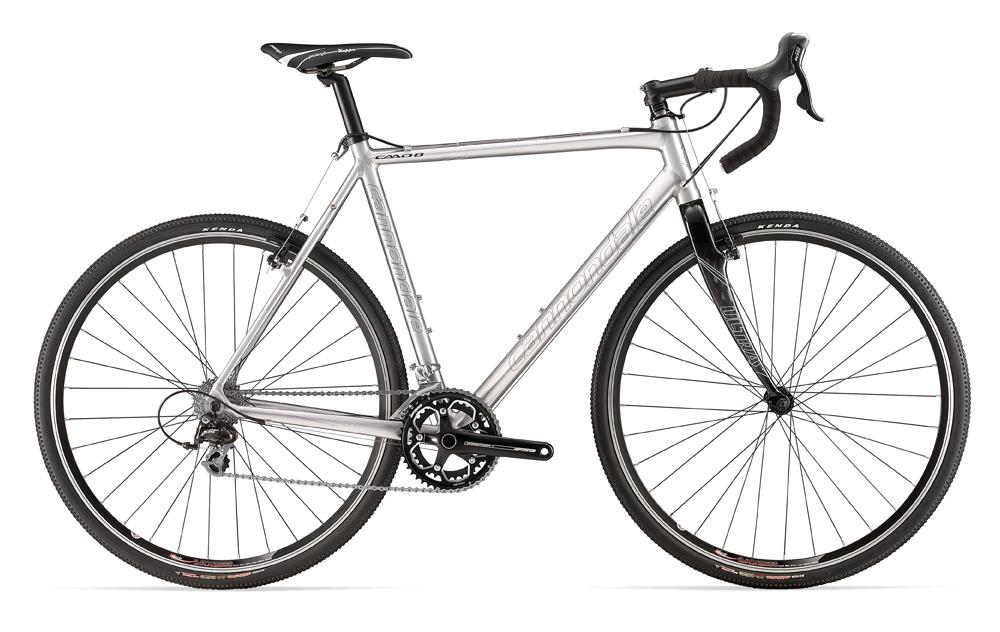

2010 Cannondale Cyclocross 5 Compact
Cyclocross bicycle from the Velopedia specification archive.
- Original MSRP
- $1,389.00
- Sizes
- 44cm, 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Brushed Aluminum
- Archive ID
- 20592
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | CAAD8 Cyclocross Double Butted 6061 Alloy |
| Fork | Cannondale Ultra X Cyclocorss |
| Fork Material | Carbon, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano 105 Mix |
|---|---|
| Shifters | Shimano 105 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Crankset | FSA Gossamer Cyclocross Compact, 46/36 teeth |
| Bottom Bracket | FSA Mega EXO |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 12 - 25 teeth |
| Chain | KMC X10 w/Missing Link |
| Pedals | N/A |
Brakes
| Brakes | Tektro CR720 brakes, Shimano 105 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Tange |
|---|---|
| Handlebar | Control Tech |
| Handlebar Extensions | Not included |
| Stem | Cannondale C3 |
| Saddle | Prologo Kappa |
| Seatpost | Cannondale C3 2-bolt, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Formula RB-51, Rear: Formula RB-52 |
|---|---|
| Rims | Maddux DRX 6000, 32-hole |
| Spokes | Stainless, 15g |
| Front Tire | 700 x 35c Kenda Small Block 8 |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
