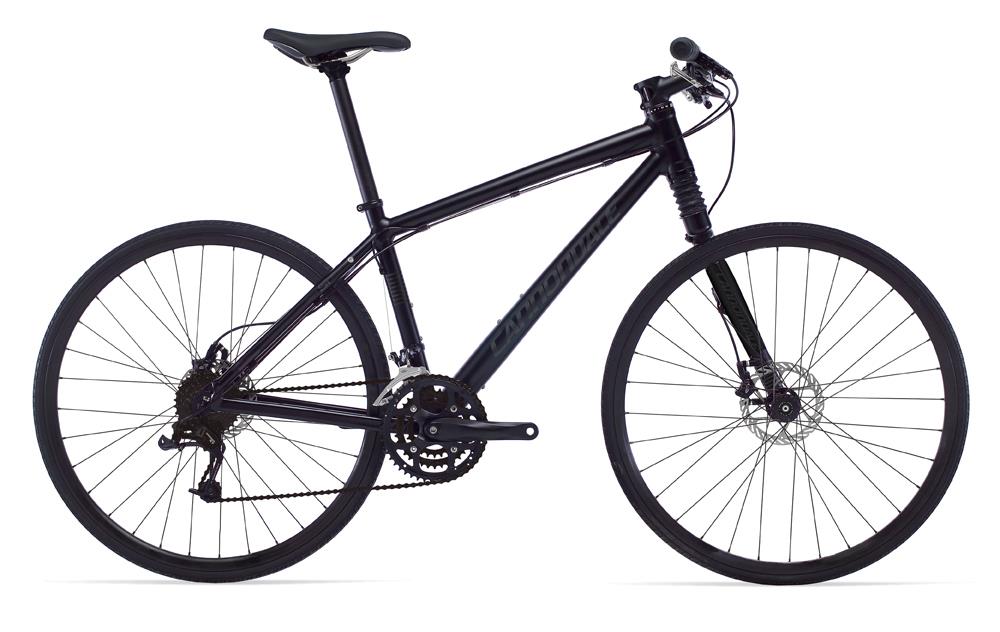

2010 Cannondale Bad Boy Solo

Archived: Frame: TIG-welded · Fork: Cannondale Fatty Solo DL 50 Urban w/lock out, 50mm travel · Aluminum, unicrown crown

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: Cannondale Fatty Solo DL 50 Urban w/lock out, 50mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: Mountain Mix · Shifters: SRAM X.7 Trigger · Front derailleur: SRAM X.7 · Rear derailleur: SRAM X.7 · Crankset: FSA Bad Boy, 26/36/48 teeth · Bottom bracket: Tange Sealed Cartridge · Cassette: Sunrace Bad Boy · Rear cogs: 9-speed, 11 - 32 teeth · Chain: KMC Bad Boy Nano Black

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Avid Juicy 3 brakes, Avid Juicy 3 levers

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 700c wheels · Rims: Front: Jalco SR300 Disc, Rear: Jalco SR 300 Disc · Hubs: Front: Cannondale Lefty SL, Rear: Formula DC22 · Front tire: Front: 700 x 28c Schwable Kojak, Rear: 700 x 28c Schwalbe Kojack

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: HeadShok Si · Handlebar: Cannondale C3 Riser · Stem: Cannondale XC3 · Seatpost: Cannondale C3 · Saddle: Cannondale Bad Boy Custom · Pedals: Wellgo alloy

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
