Lowest1.44:1
Highest4.18:1
Total range290%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×35; rear size isn’t listed.
Velopedia Bicycle Archive

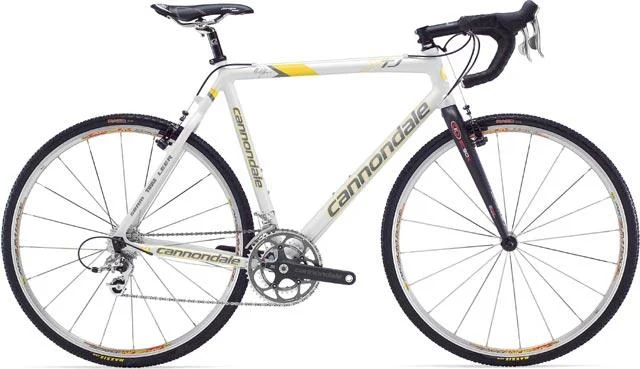

2008 Cannondale Cyclocross 4
Original specifications: SRAM Rival drivetrain · 700c wheels · 19.4 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #12627- Model year
- 2008
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,699.99
- Sizes
- 47cm, 50cm, 52cm, 54cm, 56cm, 58cm, 60cm
- Colors
- White Pearl, Jet Black w/HI-Bright Front
- Weight
- 19.4 lb
- In this record
- 25 specifications · archived image · original MSRP
Original buildCAAD9 Optimo · SRAM Rival · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | CAAD9 Optimo |
| Fork | Easton EC90X Carbon |
| Fork Material | Carbon fiber/carbon steerer, aero crown |
Drivetrain
| Component Group | SRAM Rival |
|---|---|
| Shifters | SRAM Rival |
| Front Derailleur | SRAM Rival |
| Rear Derailleur | SRAM Rival |
| Crankset | Cannondale Carbon BB30, Compact, 36/46 teeth |
| Bottom Bracket | Cannondale BB30 |
| BB Shell Width | 68mm |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 11 - 25 teeth |
| Chain | KMC X10 |
Brakes
| Brakes | Cannondale C1 Carbon brakes, SRAM Rival levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" alloy w/ integrated hanger |
|---|---|
| Handlebar | ControlTech Compact |
| Stem | Cannondale C4 |
| Saddle | Selle San Marco Ponza Lux |
| Seatpost | Cannondale C2 Carbon-wrapped, 27.2mm diameter |
Wheels & Tires
| Hubs | Mavic Aksium Race |
|---|---|
| Rims | Mavic Aksium Race |
| Spokes | Mavic |
| Front Tire | 700 x 35c Maxxis Raze |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 35c Maxxis Raze
Retailer offers
Vittoria Randonneur Reflect Tire Black, 700x35
700x35c
Replacement option
Other replacement options (1)
Challenge Strada Pro Tubeless Tire Black, 700x35
700x35c
Replacement option
Maxxis Raze on eBaySponsored links
Cannondale C2 Carbon-wrapped
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (5)Fewer parts
SRAM Rival
SRAM Rival
SRAM Rival
Mavic Aksium Race
Mavic Aksium Race
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Maxxis Raze
- Drivetrain
- 10-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Cannondale BB30 · 68mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Easton EC90X Carbon · Carbon fiber/carbon steerer, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: SRAM Rival · Shifters: SRAM Rival · Front derailleur: SRAM Rival · Rear derailleur: SRAM Rival · Crankset: Cannondale Carbon BB30, Compact, 36/46 teeth · Bottom bracket: Cannondale BB30 · Cassette: Shimano 105 · Rear cogs: 10-speed, 11 - 25 teeth · Chain: KMC X10
Brakes
Inspect the brakes →Archived: Brakes: Cannondale C1 Carbon brakes, SRAM Rival levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic Aksium Race · Hubs: Mavic Aksium Race · Front tire: 700 x 35c Maxxis Raze
Controls and contact points
Archived: Headset: 1 1/8" alloy w/ integrated hanger · Handlebar: ControlTech Compact · Stem: Cannondale C4 · Seatpost: Cannondale C2 Carbon-wrapped, 27.2mm diameter · Saddle: Selle San Marco Ponza Lux
