Lowest1.00:1
Highest2.91:1
Total range291%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.25; rear size isn’t listed.
Velopedia Bicycle Archive

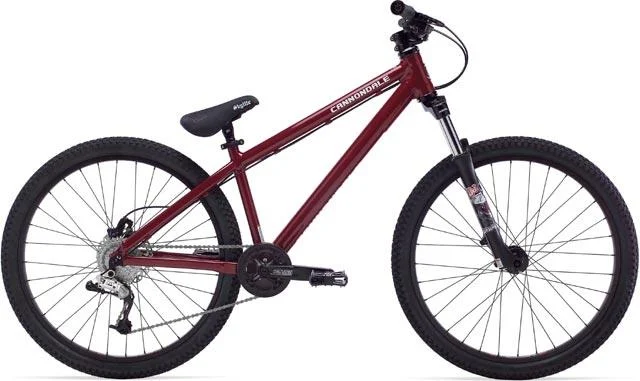

2008 Cannondale Chase 1
Original specifications: SRAM X5 · 8-speed · mechanical rear derailleur · 26" wheels · 33.9 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #24353- Model year
- 2008
- Category
- Mountain
- Original MSRP
- $1,199.99
- Sizes
- S, M
- Colors
- Velvet Red
- Weight
- 33.9 lb
- In this record
- 24 specifications · archived image · original MSRP
Model history 4 other years
Browse other years
Compare side by side
Identification clues
2008 archived details
- Published colors
- Velvet Red
- Frame
- Aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | Marzocchi Dirt Jumper 2, 80mm travel |
| Fork Material | Alloy, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM SX.4 Trigger |
| Rear Derailleur | SRAM X.5 |
| Crankset | Truvativ Ruktion w/Cannondale Grind Guard, 32 teeth |
| Bottom Bracket | Truvativ Howitzer |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | SRAM 8 speed |
| Pedals | Cannondale Grind EX Platform |
Brakes
| Brakes | Avid Juicy 3 Hydraulic w/185mm Rotor front/Avid Juicy 3 Hydraulic w/160mm Rotor rear brakes, Avid Juicy 3, hydraulic disc levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Cannondale Converter, 20mm press |
|---|---|
| Handlebar | FSA FR-330BOS, 31.8mm |
| Stem | Cannondale Freeride |
| Saddle | SDG I-Beam I-Fly |
| Seatpost | SDG I-Beam, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Thru-20, Rear: Shimano FH-M475 disc |
|---|---|
| Rims | Sun Rims Ditch Witch, 32-hole |
| Spokes | Mach 1 |
| Front Tire | 26 x 2.25" Kenda K-Rad |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
SRAM 8 speed
Replacement search: 8-speed bicycle chain Before ordering: Check chain width and length.
SDG I-Beam I-Fly
More parts (4)Fewer parts
SRAM X.5
SRAM SX.4 Trigger
FSA FR-330BOS
31.8mm
SDG I-Beam
27.2mm diameter
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.25" Kenda K-Rad
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Truvativ Howitzer · 68mm English
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi Dirt Jumper 2, 80mm travel · Alloy, single crown
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Dirt Jumper 2, 80mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: SRAM SX.4 Trigger · Rear derailleur: SRAM X.5 · Crankset: Truvativ Ruktion w/Cannondale Grind Guard, 32 teeth · Bottom bracket: Truvativ Howitzer · Rear cogs: 8-speed, 11 - 32 teeth · Chain: SRAM 8 speed
Brakes
Inspect the brakes →Archived: Brakes: Avid Juicy 3 Hydraulic w/185mm Rotor front/Avid Juicy 3 Hydraulic w/160mm Rotor rear brakes, Avid Juicy 3, hydraulic disc levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Sun Rims Ditch Witch, 32-hole · Hubs: Front: Thru-20, Rear: Shimano FH-M475 disc · Front tire: 26 x 2.25" Kenda K-Rad
Controls and contact points
Archived: Headset: 1 1/8" threadless Cannondale Converter, 20mm press · Handlebar: FSA FR-330BOS, 31.8mm · Stem: Cannondale Freeride · Seatpost: SDG I-Beam, 27.2mm diameter · Saddle: SDG I-Beam I-Fly · Pedals: Cannondale Grind EX Platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
