Lowest0.65:1
Highest4.00:1
Total range618%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

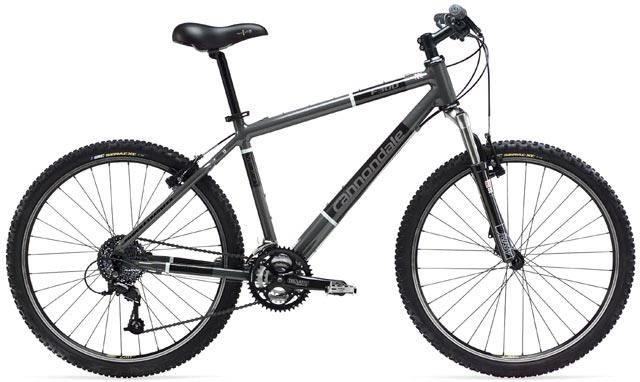

2004 Cannondale F300
Original specifications: Shimano Deore · 8-speed · mechanical rear derailleur · 26" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #30971- Model year
- 2004
- Category
- Mountain
- Original MSRP
- $529.99
- Sizes
- XS, S, M, L, XL
- Colors
- Gray, Yellow
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2004 archived details
- Published colors
- Gray, Yellow
- Frame
- 6061 T6 aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 T6 aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum |
| Fork | Rock Shox Judy TT |
| Fork Material | Aluminum/magnesium, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Alivio RapidFire Plus |
| Front Derailleur | Shimano Alivio |
| Rear Derailleur | Shimano Deore |
| Crankset | TruVativ IsoFlow, 22/32/44 teeth |
| Bottom Bracket | Shimano taper |
| Rear Cogs | 8-speed, 11 - 34 teeth |
| Chain | 1/2 x 3/32" |
| Pedals | Wellgo LU-955A w/clips & straps |
Brakes
| Brakes | Cannondale Expert brakes, Shimano Alivio RapidFire Plus levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Converter |
|---|---|
| Handlebar | Cannondale Fire |
| Handlebar Extensions | Not included |
| Stem | Cannondale 3-D Forged |
| Saddle | Selle Royale Gel |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Cannondale Earth |
|---|---|
| Rims | Cannondale Earth, 32-hole |
| Spokes | DT stainless steel, 15ga. (1.8mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.10" IRC Serac XC |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 591.8 mm |
| Head-tube angle | 70° |
| Seat-tube angle | 73.5° |
| Chainstay / rear center | 424.2 mm |
| Wheelbase | 1077 mm |
| Fork offset / rake | 45.7 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
1/2 x 3/32"
Replacement search: 8-speed bicycle chain Before ordering: Check chain width and length.
26 x 2.10" IRC Serac XC
Wellgo LU-955A w/clips & straps
More parts (4)Fewer parts
Shimano Alivio
Shimano Deore
Shimano Alivio RapidFire Plus
1 1/8" threadless FSA Converter
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" IRC Serac XC
- Drivetrain
- 8-speed
- Bottom bracket / shell
- Shimano taper
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Rock Shox Judy TT · Aluminum/magnesium, single crown
Suspension
Evaluate the suspension →Archived: Fork: Rock Shox Judy TT
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Alivio RapidFire Plus · Front derailleur: Shimano Alivio · Rear derailleur: Shimano Deore · Crankset: TruVativ IsoFlow, 22/32/44 teeth · Bottom bracket: Shimano taper · Rear cogs: 8-speed, 11 - 34 teeth · Chain: 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Cannondale Expert brakes, Shimano Alivio RapidFire Plus levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Cannondale Earth, 32-hole · Hubs: Cannondale Earth · Front tire: 26 x 2.10" IRC Serac XC
Controls and contact points
Archived: Headset: 1 1/8" threadless FSA Converter · Handlebar: Cannondale Fire · Stem: Cannondale 3-D Forged · Seatpost: Aluminum micro-adjust · Saddle: Selle Royale Gel · Pedals: Wellgo LU-955A w/clips & straps
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
