Velopedia Bicycle Archive

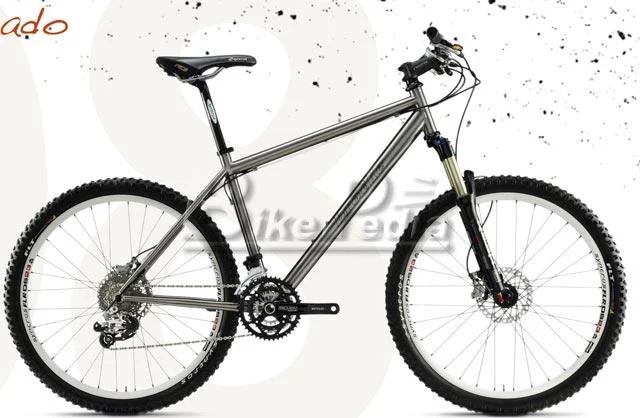

2010 Brodie Cruzado
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $3,999.00
- Sizes
- 16", 17", 18", 19."
- Colors
- Brushed Titanium
- Archive ID
- 21470
Image not yet recovered
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 3Al/2.5V titanium |
| Fork | RockShox Reba SL, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | SRAM Mix |
|---|---|
| Shifters | SRAM X.9 |
| Front Derailleur | SRAM X.9 |
| Rear Derailleur | SRAM X.0 |
| Crankset | Truvativ Stylo 3.3 GXP, 22/32/44 teeth |
| Bottom Bracket | TruVativ |
| Cassette | SRAM PG-990 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Pedals | Not included |
Brakes
| Brakes | Avid Juicy 7 W/ 6" Rotor brakes, Avid Juicy 7 hydraulic levers |
|---|
Cockpit & Contact Points
| Handlebar | Syncros Gain |
|---|---|
| Handlebar Extensions | Not included |
| Stem | Syncros FLS Factory |
| Saddle | Ritchey Pro Streem V2 |
| Seatpost | Syncros Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Industry 9 AM |
|---|---|
| Rims | Stans ZTR Arch |
| Spokes | Industry 9 alloy, straight pull |
| Front Tire | 26 x 2.30" Syncros FLT |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
