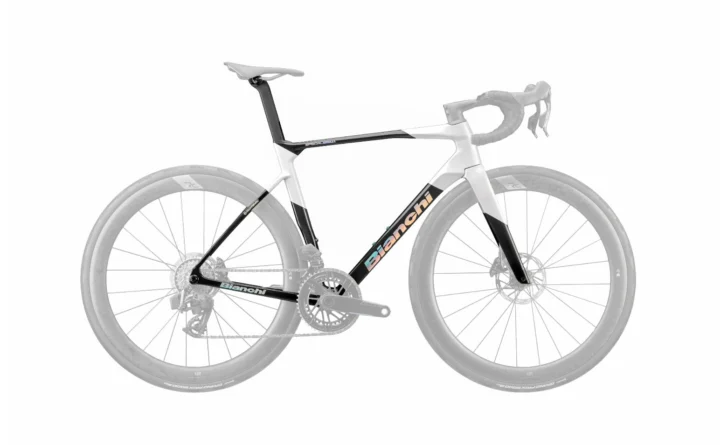

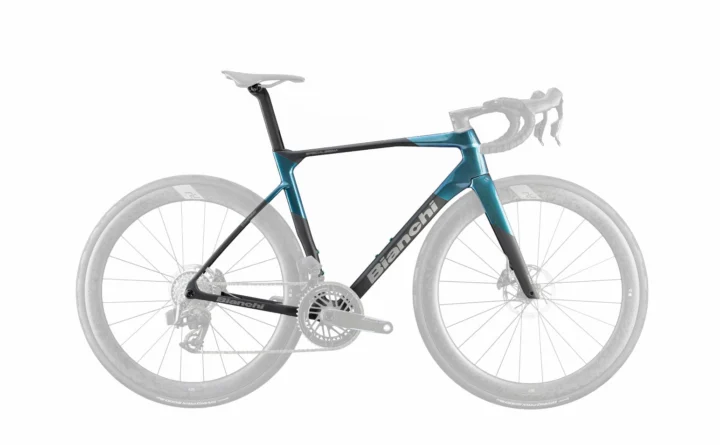

2027 Bianchi Specialissima PRO – Frameset
Original manufacturer specifications including geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Road
- Original MSRP
- $4,914.00
- Sizes
- 47, 50, 53, 55, 57, 59
- Colors
- JU – Ying & Yang: Carbonio UD / Bianco Italia + Logo cromato iridescente + Full Glossy
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 6 preserved details · 3 archived images · original MSRP · preserved geometry
- Archive ID
- 900001055
Frameset
| Frame Construction | Bianchi Specialissima PRO carbon, only electronic groupsets, fully internal cable routing, Flat mount disc |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Bianchi Specialissima carbon, ICR 1.5″ integrated head, Disc brake flat mount 140mm, thru axle 12×100 |
| Fork Material | Carbon Fiber |
Cockpit & Contact Points
| Headset | Acros IS52 Integrated Cable Routing |
|---|---|
| Seatpost | Bianchi Specialissima seatpost Full Carbon Aero length: 280 mm, 0 offset (47 cm); 300 mm, 0 offset (50- |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| Seat tube | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Effective top tube | 514 mm | 524 mm | 535 mm | 550 mm | 560 mm | 575 mm |
| Head tube | 100 mm | 105 mm | 120 mm | 135 mm | 150 mm | 170 mm |
| Head-tube angle | 70.5° | 71.5° | 72° | 72.5° | 73° | 73° |
| Seat-tube angle | 74.5° | 74.5° | 74° | 73.5° | 73.5° | 73° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 412 mm | 412 mm |
| Wheelbase | 982 mm | 983 mm | 984 mm | 988 mm | 996 mm | 1005 mm |
| Bottom-bracket drop | 58 mm | 58 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Reach | 379 mm | 387 mm | 386 mm | 391 mm | 397 mm | 400 mm |
| Stack | 486 mm | 494 mm | 520 mm | 536 mm | 552 mm | 571 mm |
| Fork offset / rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Front center | 579 mm | 581 mm | 582 mm | 588 mm | 593 mm | 603 mm |
| Fork length / axle-to-crown | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
Geometry source: Bianchi first-party coded geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
470 geometry
Archive context: Its bottom-bracket drop of 58 mm sits toward the shallower-drop end. Its stack of 486 mm sits toward the lower end. The head angle of 70.5° sits toward the slacker end.
Compared with 61 distinct road geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.500 geometry
Archive context: Its bottom-bracket drop of 58 mm sits toward the shallower-drop end. Its stack of 494 mm sits toward the lower end. Its reach of 387 mm sits somewhat longer than typical.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.530 geometry
Archive context: Its bottom-bracket drop of 68 mm sits toward the shallower-drop end. Its stack of 520 mm sits toward the lower end. Its wheelbase of 984 mm sits somewhat shorter than typical.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.550 geometry
Archive context: Its wheelbase of 988 mm sits toward the shorter end. Its stack of 536 mm sits toward the lower end. Its bottom-bracket drop of 68 mm sits toward the shallower-drop end.
Compared with 73 distinct road geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.570 geometry
Archive context: Its wheelbase of 996 mm sits toward the shorter end. Its stack of 552 mm sits toward the lower end. Its bottom-bracket drop of 68 mm sits toward the shallower-drop end.
Compared with 59 distinct road geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.590 geometry
Archive context: Its wheelbase of 1005 mm sits toward the shorter end. Its stack of 571 mm sits toward the lower end. Its reach of 400 mm sits toward the shorter end.
Compared with 37 distinct road geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Bianchi Specialissima PRO – Frameset · Road · Published sizes: 47, 50, 53, 55, 57, 59
Frame and fork
Inspect the frame and fork →Archived: Frame: Bianchi Specialissima PRO carbon, only electronic groupsets, fully internal cable routing, Flat mount disc · Fork: Bianchi Specialissima carbon, ICR 1.5″ integrated head, Disc brake flat mount 140mm, thru axle 12×100 · Carbon Fiber
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
