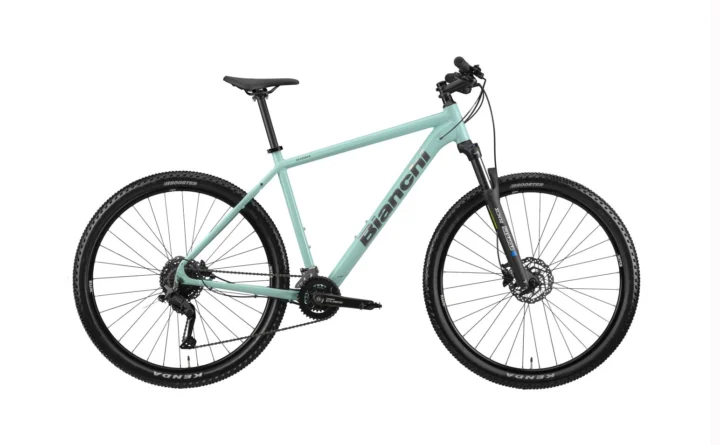

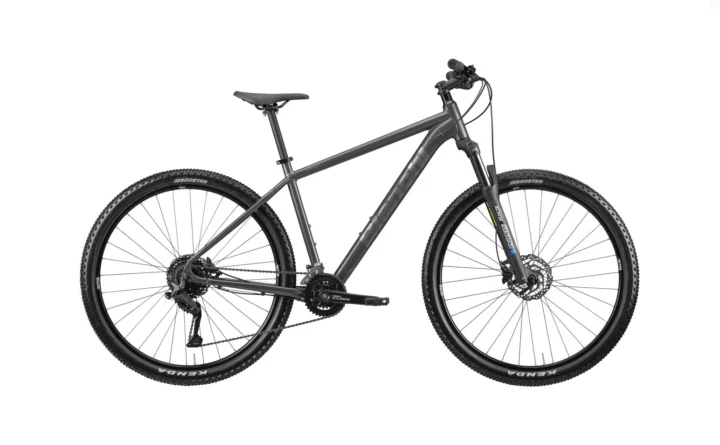

2024 Bianchi Magma 29S CUES

Archived: Frame: Bianchi Magma 29, aluminium, OLD 9×135 QR, post mount sizes 43-48-53 · Fork: Suntour XCM32-NLO 29″, 9×100 QR, 100 mm travel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: Suntour XCM32-NLO 29″, 9×100 QR, 100 mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano CUES SL-U4000, 9sp · Rear derailleur: Shimano CUES RD-U4020, 9sp · Crankset: Shimano FC-U4000, 36x22T · Cassette: Shimano CS-LG300, 9sp, 11-13-15-17-20-23-26-30-36T · Chain: Shimano CN-LG500, 10sp

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano MT-200, 2 pistons, mineral oil; Rotors: Shimano SM-RT10, 160 mm (front&Rear); Levers: Shimano BL-MT200

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 29" · Wheels: Mach1 6KLIXX 29, 622-32, 32 holes · Front tire: Kenda Booster 30 TPI, 29×2,2″ · Rear tire: Kenda Booster 30 TPI, 29×2,2″

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: FSA N.10 for external cable routiung · Handlebar: Velomann MTB479A, Width: 720 mm, Barebore: 31.8 mm, Rise: 15 mm · Stem: Velomann ST92A · Seatpost: Velomann SP-7019, Diameter 27.2 mm, 350 mm · Saddle: Selle Royal SRX

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
