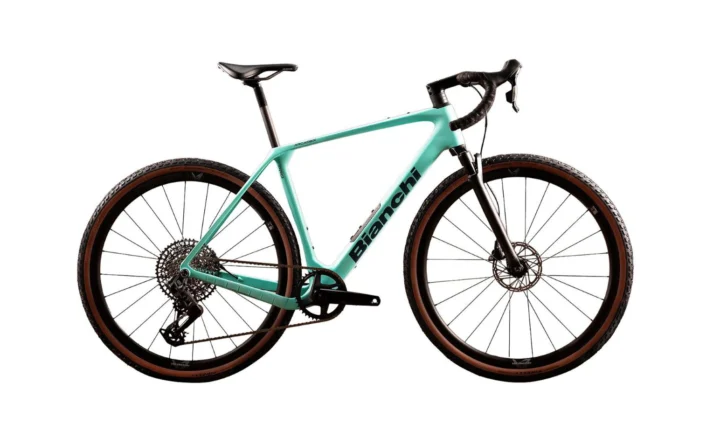

2024 Bianchi Arcadex PRO GRX 820

Archived: 2024 Bianchi Arcadex PRO GRX 820 · Cyclocross/Gravel · Published sizes: XS, S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: · Fork: Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8″” Material: Epoxy – SM Carbon Fiber Composite · Carbon Fiber

• Inspect the complete frame for cracks, dents, distortion, heavy abrasion, suspicious paint differences or evidence of a previous repair.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano GRX 820 ST/BL-RX820 · Rear derailleur: Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T · Crankset: Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61) · Bottom bracket: Shimano SM-BB72-41B, press fit · Cassette: Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline · Chain: Shimano CN-M7100

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano Hydraulic Brake, BR-RX820; Rotors: Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c · Wheels: Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Wigth Channel: 25 mm · Front tire: Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall · Rear tire: Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Handlebar: Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4″” (31.8mm) HandleBar Widths: 400 – SX(47) SM(51), 420 – MD(55) LG(58), 440 -XL(61) · Seatpost: Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61) · Saddle: Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
