Lowest1.20:1
Highest4.17:1
Total range347%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

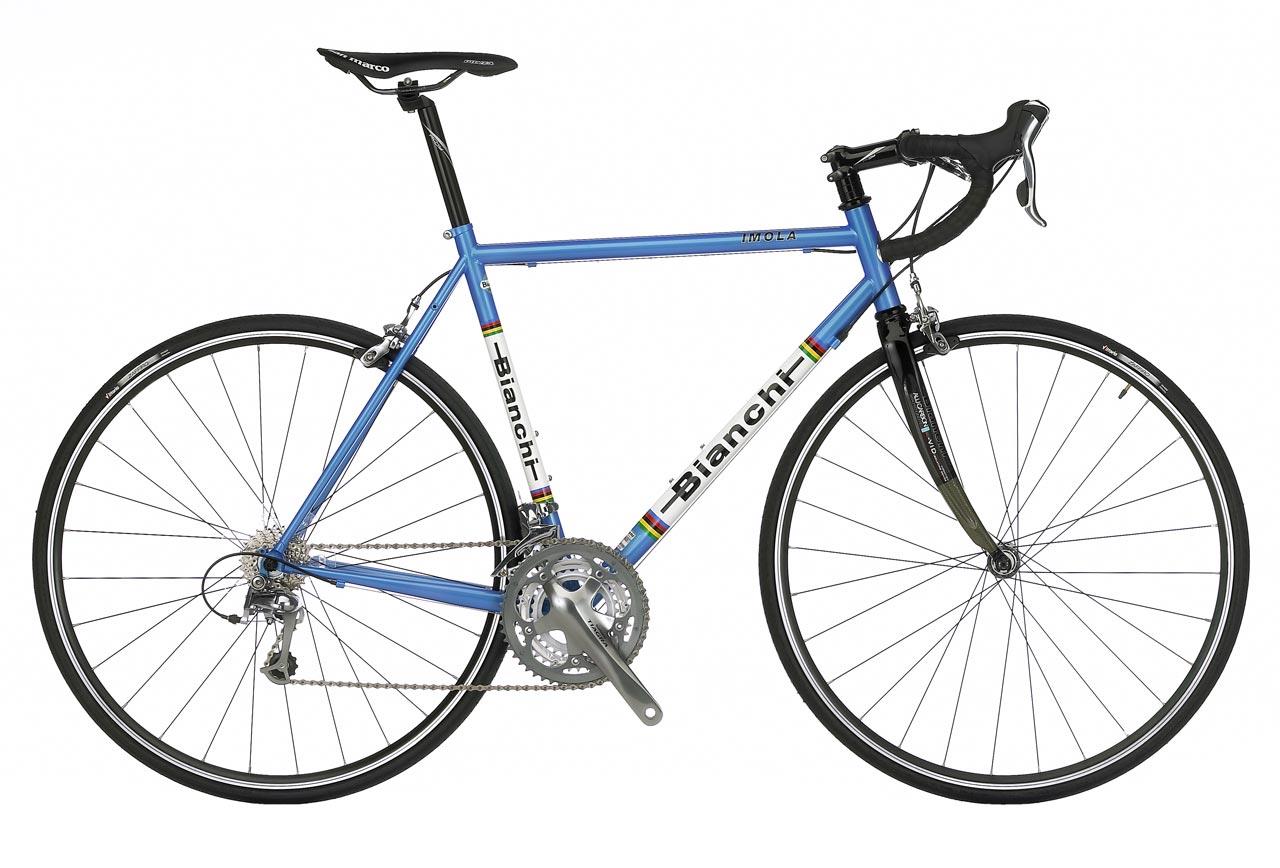

2010 Bianchi Imola
Original specifications: Shimano 105 · 9-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #20212- Model year
- 2010
- Category
- Road
- Original MSRP
- $1,250.00
- Sizes
- 44cm, 49cm, 51cm, 53cm, 55cm, 57cm, 59cm, 61cm, 63cm
- Colors
- LD Iris
- In this record
- 25 specifications · archived image · original MSRP
Model history 9 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- LD Iris
- Frame
- Full CrMo
- Original equipment
- Shimano Tiagra Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildFull CrMo · Shimano Tiagra Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Full CrMo |
| Fork | Bianchi |
| Fork Material | Carbon/Alloy, aero crown |
Drivetrain
| Component Group | Shimano Tiagra Mix |
|---|---|
| Shifters | Shimano Tiagra ST-4500 |
| Front Derailleur | Shimano Tiagra FD-4503BS |
| Rear Derailleur | Shimano 105 RD-5600GS |
| Crankset | Shimano Tiagra FC-4503, 50/39/30 teeth |
| Cassette | Shimano CS-HG50 |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | KMC X-9, 1/2 x 11/128" |
Brakes
| Brakes | Shimano Tiagra BR-4500 brakes, Shimano Tiagra ST-4500 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless VP-A51AE |
|---|---|
| Handlebar | JD-RA37A-00L1 |
| Handlebar Extensions | Not included |
| Stem | JD-ST58A |
| Saddle | San Marco Ponza |
| Seatpost | Bianchi SP-222, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Joytech JY-A141SB, Rear: Joytech JY-F192SB |
|---|---|
| Rims | Jalco DRX-4000, 28-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 23c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Vittoria Zaffiro
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Vittoria Zaffiro on eBaySponsored links
Bianchi SP-222
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (6)Fewer parts
Shimano Tiagra BR-4500 brakes
Shimano Tiagra ST-4500 levers
Shimano Tiagra FC-4503
50/39/30 teeth
Shimano Tiagra FD-4503BS
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Vittoria Zaffiro
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Bianchi · Carbon/Alloy, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Tiagra Mix · Shifters: Shimano Tiagra ST-4500 · Front derailleur: Shimano Tiagra FD-4503BS · Rear derailleur: Shimano 105 RD-5600GS · Crankset: Shimano Tiagra FC-4503, 50/39/30 teeth · Cassette: Shimano CS-HG50 · Rear cogs: 9-speed, 12 - 25 teeth · Chain: KMC X-9, 1/2 x 11/128"
Brakes
Inspect the brakes →Archived: Brakes: Shimano Tiagra BR-4500 brakes, Shimano Tiagra ST-4500 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Jalco DRX-4000, 28-hole · Hubs: Front: Joytech JY-A141SB, Rear: Joytech JY-F192SB · Front tire: 700 x 23c Vittoria Zaffiro
Controls and contact points
Archived: Headset: 1 1/8" threadless VP-A51AE · Handlebar: JD-RA37A-00L1 · Stem: JD-ST58A · Seatpost: Bianchi SP-222, 27.2mm diameter · Saddle: San Marco Ponza
