Lowest1.36:1
Highest4.17:1
Total range306%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

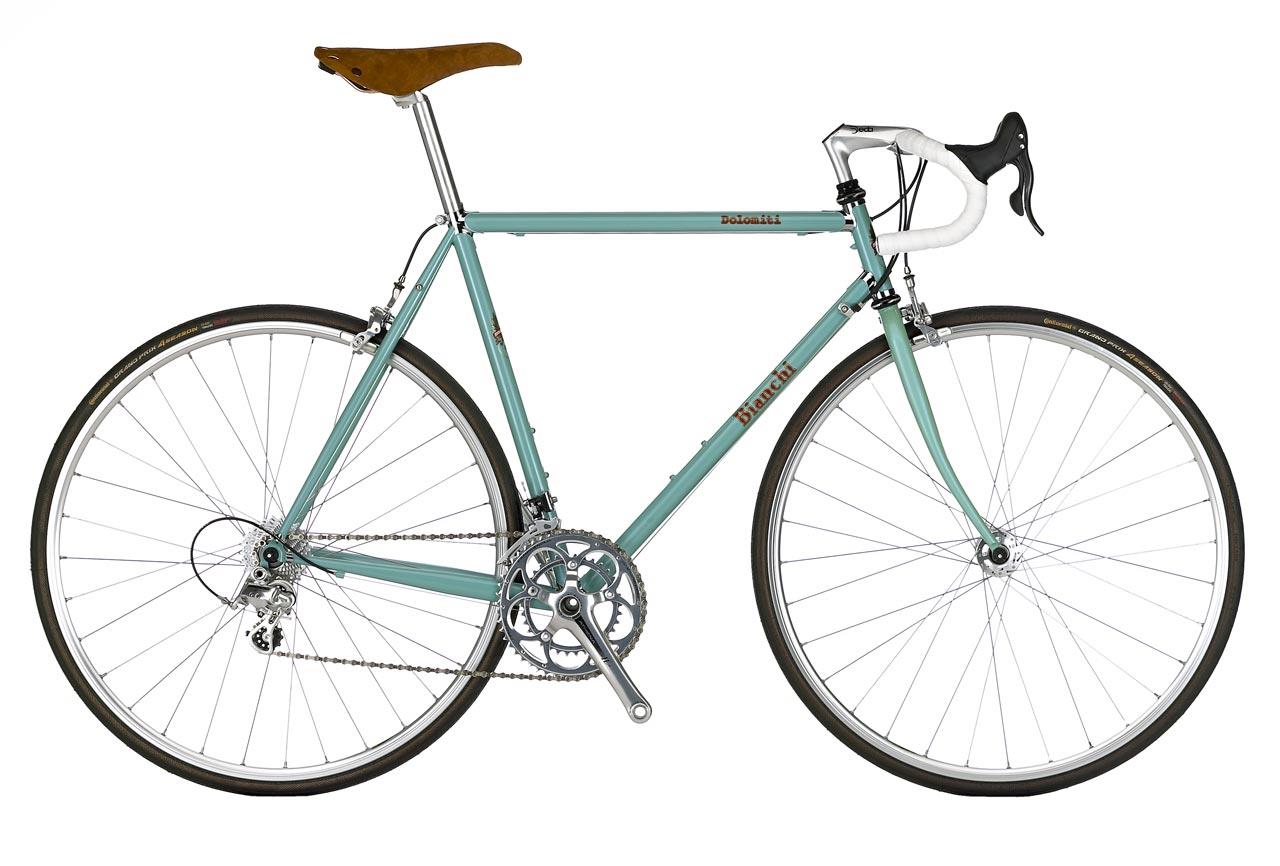

2010 Bianchi Dolomiti
Original specifications: Road Mix drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #20215- Model year
- 2010
- Category
- Road
- Original MSRP
- $5,000.00
- Sizes
- 49cm, 53cm, 56cm, 59cm, 61cm
- Colors
- CK Celeste
- In this record
- 23 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- CK Celeste
- Frame
- Bianchi Lugged Chromoly Steel
- Original equipment
- Road Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildBianchi Lugged Chromoly Steel · Road Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Bianchi Lugged Chromoly Steel |
| Fork | Bianchi |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Campagnolo Athena |
| Front Derailleur | Campagnolo Athena |
| Rear Derailleur | Campagnolo Athena |
| Crankset | Campagnolo Athena Ultra-Torque Compact, 50/34 teeth |
| Cassette | Campagnolo Chorus |
| Rear Cogs | 11-speed, 12 - 25 teeth |
| Chain | Campagnolo Chorus |
Brakes
| Brakes | Campagnolo Athena brakes, Campagnolo Athena levers |
|---|
Cockpit & Contact Points
| Headset | FSA Duron 1 |
|---|---|
| Handlebar | Dedaelementi 215 |
| Handlebar Extensions | Not included |
| Stem | Dedaelementi Murex |
| Saddle | San Marco Regal |
| Seatpost | RC SP-222 alloy, 27.2mm diameter |
Wheels & Tires
| Hubs | Ambrosio Wide Flange |
|---|---|
| Rims | Ambrosio Elan Record, 32-hole |
| Front Tire | 700 x 23c Vittoria Rubino Slick |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Vittoria Rubino Slick
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Vittoria Rubino Slick on eBaySponsored links
RC SP-222 alloy
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Campagnolo Athena Ultra-Torque Compact
50/34 teeth
More parts (1)Fewer parts
FSA Duron 1
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Vittoria Rubino Slick
- Drivetrain
- 11-speed
- Seatpost diameter
- 27.2 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Bianchi · Chromoly, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Road Mix · Shifters: Campagnolo Athena · Front derailleur: Campagnolo Athena · Rear derailleur: Campagnolo Athena · Crankset: Campagnolo Athena Ultra-Torque Compact, 50/34 teeth · Cassette: Campagnolo Chorus · Rear cogs: 11-speed, 12 - 25 teeth · Chain: Campagnolo Chorus
Brakes
Inspect the brakes →Archived: Brakes: Campagnolo Athena brakes, Campagnolo Athena levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Ambrosio Elan Record, 32-hole · Hubs: Ambrosio Wide Flange · Front tire: 700 x 23c Vittoria Rubino Slick
Controls and contact points
Archived: Headset: FSA Duron 1 · Handlebar: Dedaelementi 215 · Stem: Dedaelementi Murex · Seatpost: RC SP-222 alloy, 27.2mm diameter · Saddle: San Marco Regal
