Lowest1.06:1
Highest4.55:1
Total range428%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×32; rear size isn’t listed.
Velopedia Bicycle Archive

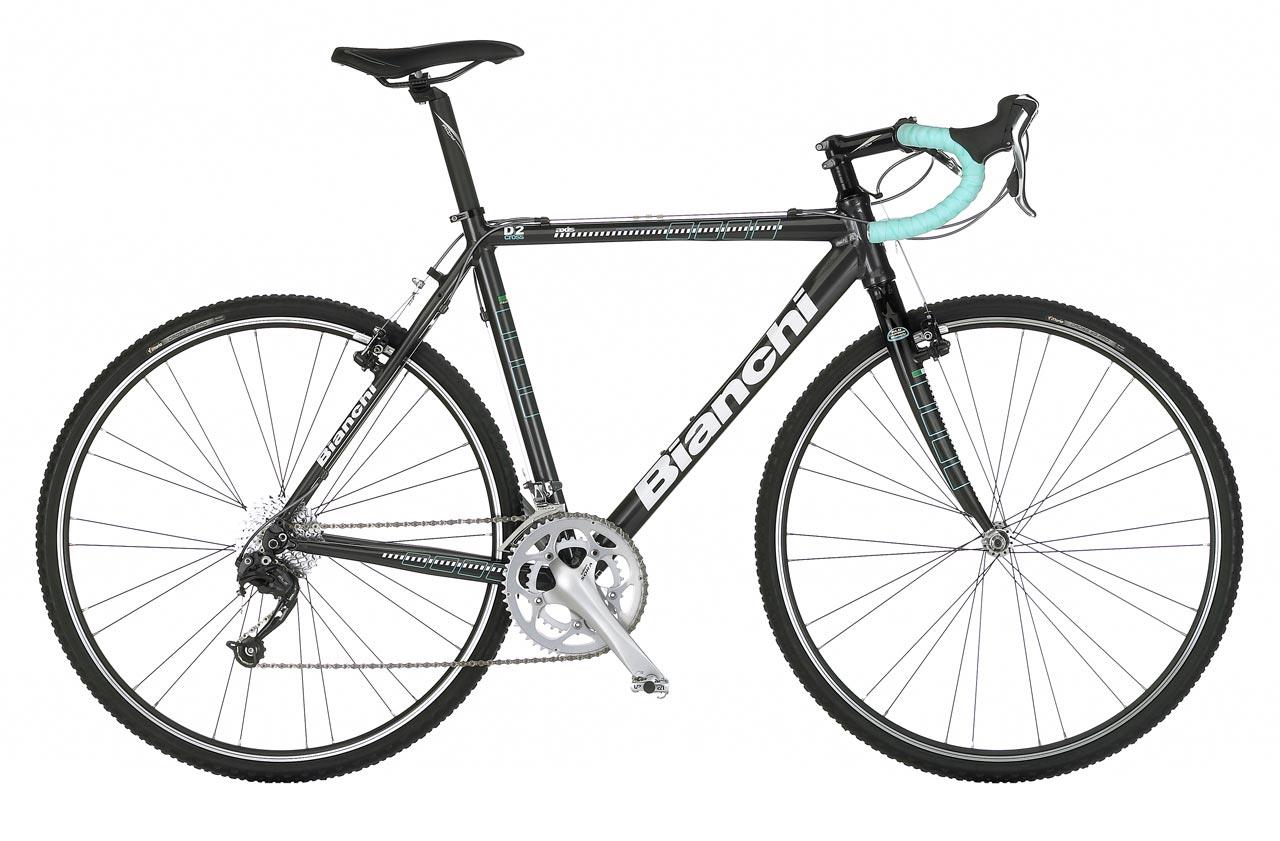

2010 Bianchi Cross Axis
Original specifications: Shimano SLX · 9-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #20243- Model year
- 2010
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,300.00
- Sizes
- 49cm, 52cm, 55cm, 58cm, 61cm
- Colors
- 7E Dark Grey
- In this record
- 24 specifications · archived image · original MSRP
Original buildAluminum · Cyclocross Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | Bianchi FC7 |
| Fork Material | Carbon/Alloy, aero crown |
Drivetrain
| Component Group | Cyclocross Mix |
|---|---|
| Shifters | Shimano Tiagra |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano SLX |
| Crankset | Shimano Sora Compact, 50/34 teeth |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC X9 |
| Pedals | VP-M31 |
Brakes
| Brakes | RC 992AG brakes, Shimano Tiagra/RL-721 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Tange Seiki ZS22IL |
|---|---|
| Handlebar | RC JD-RA37A |
| Handlebar Extensions | Not included |
| Stem | RC ST-58A |
| Saddle | Active FM-5207 |
| Seatpost | RC SP-222 alloy, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Shimano Tiagra HB-4500, Rear: Shimano Tiagra FH-4500 |
|---|---|
| Rims | Jalco DRX 2000, 32-hole |
| Front Tire | 700 x 32c Vittoria Cross XG |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
SRAM PG-950
Retailer offers
SRAM PG-950 Cassette 9 Speed, 11-32T
Model match
SRAM PG-950 on eBaySponsored links
700 x 32c Vittoria Cross XG
Retailer offers
Goodyear Eagle Tubeless Tire Black, 700x32
700x32c
Replacement option
Other replacement options (1)
Challenge Strada Pro Tubeless Tire Tan, 700x32
700x32c
Replacement option
Vittoria Cross XG on eBaySponsored links
RC SP-222 alloy
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
More parts (5)Fewer parts
Shimano Sora Compact
50/34 teeth
Shimano Tiagra
Shimano SLX
Shimano Tiagra
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 32c Vittoria Cross XG
- Drivetrain
- 9-speed
- Seatpost diameter
- 31.6 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Bianchi FC7 · Carbon/Alloy, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Cyclocross Mix · Shifters: Shimano Tiagra · Front derailleur: Shimano Tiagra · Rear derailleur: Shimano SLX · Crankset: Shimano Sora Compact, 50/34 teeth · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 11 - 32 teeth · Chain: KMC X9
Brakes
Inspect the brakes →Archived: Brakes: RC 992AG brakes, Shimano Tiagra/RL-721 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Jalco DRX 2000, 32-hole · Hubs: Front: Shimano Tiagra HB-4500, Rear: Shimano Tiagra FH-4500 · Front tire: 700 x 32c Vittoria Cross XG
Controls and contact points
Archived: Headset: 1 1/8" threadless Tange Seiki ZS22IL · Handlebar: RC JD-RA37A · Stem: RC ST-58A · Seatpost: RC SP-222 alloy, 31.6mm diameter · Saddle: Active FM-5207 · Pedals: VP-M31
