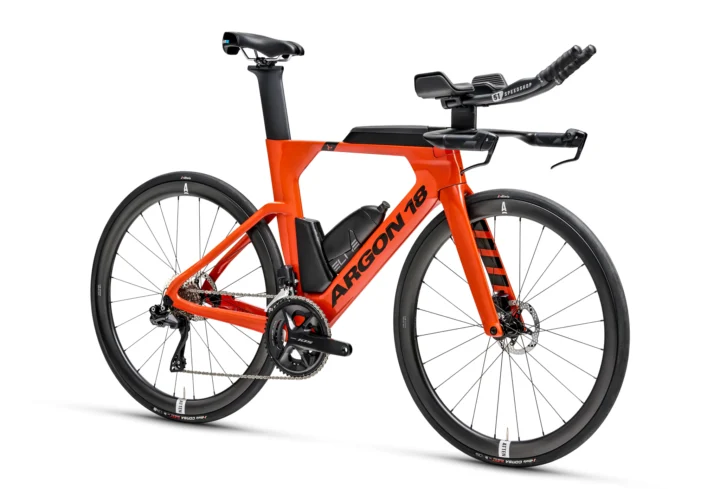

2025 Argon 18 E117 Shimano 105

Original specifications: Shimano 105 drivetrain · 700c wheels · geometry for 5 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900002375
Model year
2025
Category
Road
Original MSRP
$4,399.00
Sizes
XS, S, M, L, XL
Colors
Black stealth, Flaming red
Geometry
5 manufacturer sizes
In this record
20 specifications · 3 archived images · original MSRP · geometry
Original buildShimano 105 · 700c

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Published colors

Black stealthFlaming red

Frameset

Frame ConstructionE117
ForkE117

Drivetrain

Component GroupShimano 105
ShiftersMicroshift TT/Tri bar end shifters
Front DerailleurShimano 105 R7100
Rear DerailleurShimano 105 R7100
CranksetShimano 105 FC-R7100 52/36
Bottom BracketShimano BB-RS500-PB
CassetteShimano 105 CS-R7100 11-34
ChainShimano 105 CN-M7100

Brakes

BrakesArgon 18 Integrated Brake System; Rotors: TRP TR140-25 / F:140mm R:140mm

Cockpit & Contact Points

HeadsetE117
HandlebarArgon 18 carbon basebar
StemProfile Design 1/Seventeen Stem -17°
SaddlePrologo Dimension-Tri 143
SeatpostE-117T Disc

Wheels & Tires

WheelsDT Swiss E1800 SPLINE DB 32mm
Front TireVittoria Rubino Pro IV 28-622 TLR
Rear TireVittoria Rubino Pro IV 28-622 TLR
Wheel Size700c

Geometry

5 sizes · 11 measurements

Frame measurements by size.

All geometry measurements5 sizes · 11 measurements
MeasurementXSSMLXL
Seat tube455 mm500 mm516 mm542 mm568 mm
Effective top tube492 mm504 mm517 mm527 mm545 mm
Head tube49 mm60 mm77 mm104 mm131 mm
Head-tube angle72°72°72°72°72°
Seat-tube angle78°78°78°78°78°
Chainstay / rear center413 mm413 mm413 mm413 mm413 mm
Wheelbase976 mm989 mm1004 mm1017 mm1038 mm
Bottom-bracket drop70 mm70 mm70 mm70 mm70 mm
Standover height729 mm767 mm782 mm808 mm833 mm
Fork offset / rake45 mm45 mm45 mm45 mm45 mm
Fork length / axle-to-crown375 mm375 mm375 mm375 mm375 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes52/36T · 11–34T
Lowest1.06:1 Highest4.73:1 Total range446%
Estimated speed At 90 RPM Lowest gear7.6 mph Highest gear33.8 mph

Rear tire: 700C×28 · 28-622 ETRTO.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano 105 CN-M7100
Cassette · Original
Shimano 105 CS-R7100 11-34
Front tire · Original
Vittoria Rubino Pro IV 28-622 TLR
More parts (6)Fewer parts
Saddle · Original
Prologo Dimension-Tri 143
Bottom bracket · Original
Shimano BB-RS500-PB
Crankset · Original
Shimano 105 FC-R7100 52/36
Front derailleur · Original
Shimano 105 R7100
Rear derailleur · Original
Shimano 105 R7100
Wheels · Original
DT Swiss E1800 SPLINE DB 32mm

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Vittoria Rubino Pro IV 28-622 TLR
Rear tire
Vittoria Rubino Pro IV 28-622 TLR
Drivetrain
Shimano 105
Bottom bracket / shell
Shimano BB-RS500-PB
Equipment inspection checks 11 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: E117 · Fork: E117

Archived: Group: Shimano 105 · Shifters: Microshift TT/Tri bar end shifters · Front derailleur: Shimano 105 R7100 · Rear derailleur: Shimano 105 R7100 · Crankset: Shimano 105 FC-R7100 52/36 · Bottom bracket: Shimano BB-RS500-PB · Cassette: Shimano 105 CS-R7100 11-34 · Chain: Shimano 105 CN-M7100

Archived: Brakes: Argon 18 Integrated Brake System; Rotors: TRP TR140-25 / F:140mm R:140mm

Archived: Wheel size: 700c · Wheels: DT Swiss E1800 SPLINE DB 32mm · Front tire: Vittoria Rubino Pro IV 28-622 TLR · Rear tire: Vittoria Rubino Pro IV 28-622 TLR

Controls and contact points

Archived: Headset: E117 · Handlebar: Argon 18 carbon basebar · Stem: Profile Design 1/Seventeen Stem -17° · Seatpost: E-117T Disc · Saddle: Prologo Dimension-Tri 143
