2015 All City THUNDERDOME Frameset
Original manufacturer specifications.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2015
- Category
- Track
- Sizes
- 46, 49, 52, 55, 58, 61cm
- Colors
- Silver
- Record coverage
- 11 preserved details · 5 archived images
- Archive ID
- 1408968
Frameset

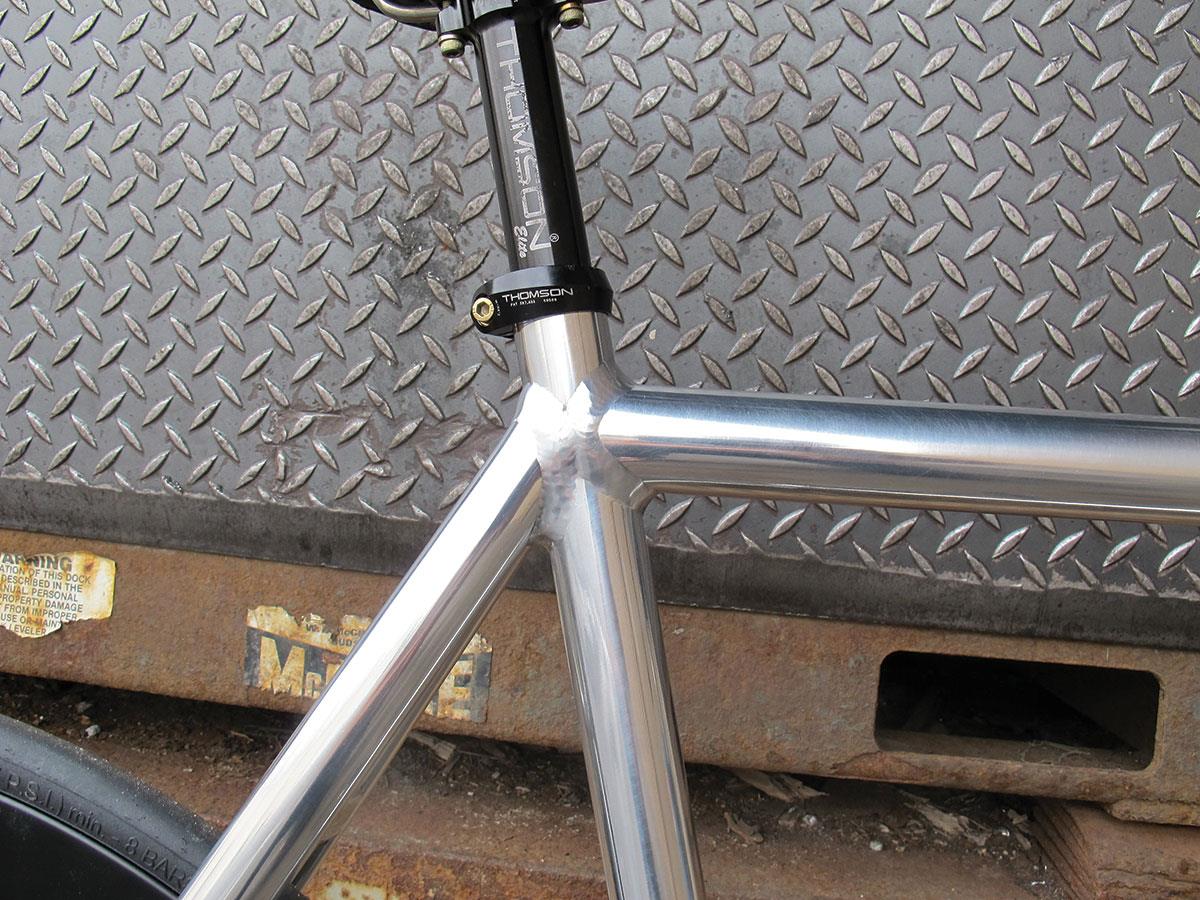

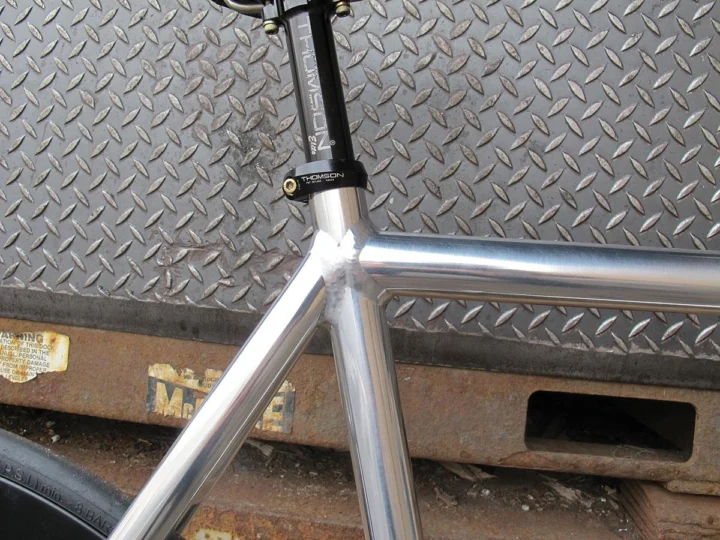

| Frame Material | 7000 Series Aluminum |
|---|---|
| Fork | Carbon blades, straight alloy steertube |
Drivetrain

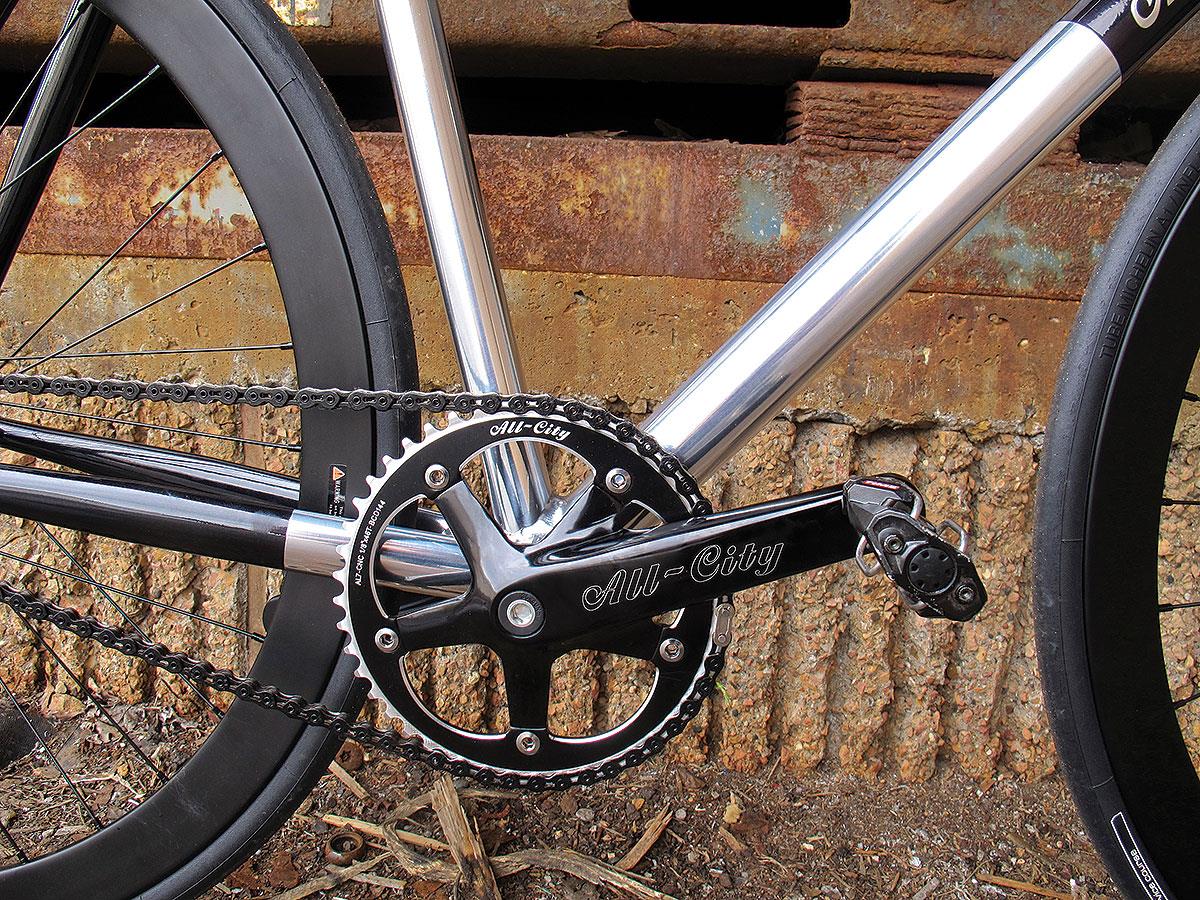

| Crankset | 57 tooth max chainring clearance |
|---|---|
| BB Shell Width | 68mm English |
Brakes
| Brakes | Front only, short reach road caliper 39-49mm |
|---|
Cockpit & Contact Points
| Headset | 1-1/8" threadless, EC34 upper & lower, Crown race 30.0 |
|---|---|
| Seatpost | 27.2mm |
Wheels & Tires
| Front Tire | 700x25 tire clearance |
|---|
Parts & serviceability
Find replacement parts
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2015 All City THUNDERDOME Frameset · Track · Published sizes: 46, 49, 52, 55, 58, 61cm
Frame and fork
Inspect the frame and fork →Archived: Frame: 7000 Series Aluminum · Fork: Carbon blades, straight alloy steertube
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
