Velopedia Bicycle Archive
2026 Trek Slash+ 9.7
Original specifications: SRAM Eagle 70 T-Type, 12-speed drivetrain · M - 21.58 kg / 47.58 lbs (with TLR sealant, no tubes) published weight · geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
At a glance
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $7,999.99
- Sizes
- S, M, L, XL
- Colors
- Gloss Chameleon Green/Matte Dark Web
- Weight
- M - 21.58 kg / 47.58 lbs (with TLR sealant, no tubes)
- Geometry
- 4 manufacturer sizes
- In this record
- 18 specifications · 6 archived images · original MSRP · geometry
- Archive ID
- 900000782
Original buildCarbon fiber · SRAM Eagle 70 T-Type, 12-speed
Frameset
| Frame Construction | OCLV Mountain Carbon, removable battery, high main pivot, idler pulley, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, upper chain guide mount, 55mm chainline, ABP, UDH, 148x12mm thru axle, 170mm travel |
|---|---|
| Frame Material | Carbon fiber |
| Fork | Fox Rhythm 38, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 170mm travel |
| Rear Shock | Fox Performance Float X, 2-position damper, 230mm x 65mm |
Drivetrain
| Component Group | SRAM Eagle 70 T-Type, 12-speed |
|---|---|
| Shifters | SRAM Eagle 70, 12 speed |
| Rear Derailleur | SRAM Eagle 70, T-Type |
| Crankset | SRAM EAGLE 70, 160mm length |
| Cassette | SRAM Eagle XS-1270, T-Type,10-52, 12 speed |
Brakes
| Brakes | SRAM DB 8 4-piston hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | 1-1/8'' threadless, sealed cartridge bearings |
|---|---|
| Handlebar | Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
| Stem | Bontrager Elite, 35mm, 0 degree, 35mm length |
| Saddle | Bontrager Verse P3, chromoly rails |
| Seatpost | S: Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length / M: Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length / L, XL: Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length |
Wheels & Tires
| Wheels | (F) S: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' / M, L, XL: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' / (R) Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle, 27.5'' |
|---|---|
| Front Tire | S, M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.5'' / M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.5'' |
| Rear Tire | S, M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.5'' / M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.5'' |
Geometry
Frame measurements by size.
Published frame view
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 16 measurements
| Measurement | 15.5" (S) | 17.5" (M) | 19.5" (L) | 21.5" (XL) |
|---|---|---|---|---|
| Seat tube | 390 mm | 400 mm | 435 mm | 470 mm |
| Effective top tube | 561 mm | 588 mm | 625 mm | 669 mm |
| Head tube | 110 mm | 110 mm | 120 mm | 140 mm |
| Head-tube angle | 63.5° | 63.4° | 63.4° | 63.4° |
| Seat-tube angle | 77.6° | 77.5° | 77.2° | 76.7° |
| Actual seat-tube angle | 74° | 73.9° | 73.9° | 73.9° |
| Chainstay / rear center | 434 mm | 434 mm | 434 mm | 439 mm |
| Wheelbase | 1205 mm | 1233 mm | 1267 mm | 1317 mm |
| Bottom-bracket drop | 10 mm | 27 mm | 27 mm | 27 mm |
| Bottom-bracket height | 352 mm | 352 mm | 352 mm | 352 mm |
| Reach | 430 mm | 449 mm | 479 mm | 519 mm |
| Stack | 597 mm | 631 mm | 639 mm | 658 mm |
| Standover height | 771 mm | 776 mm | 770 mm | 769 mm |
| Fork offset / rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 132 mm | 142 mm | 142 mm | 142 mm |
| Wheel size | 27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
Parts & serviceability
Find replacement parts

More parts (4)

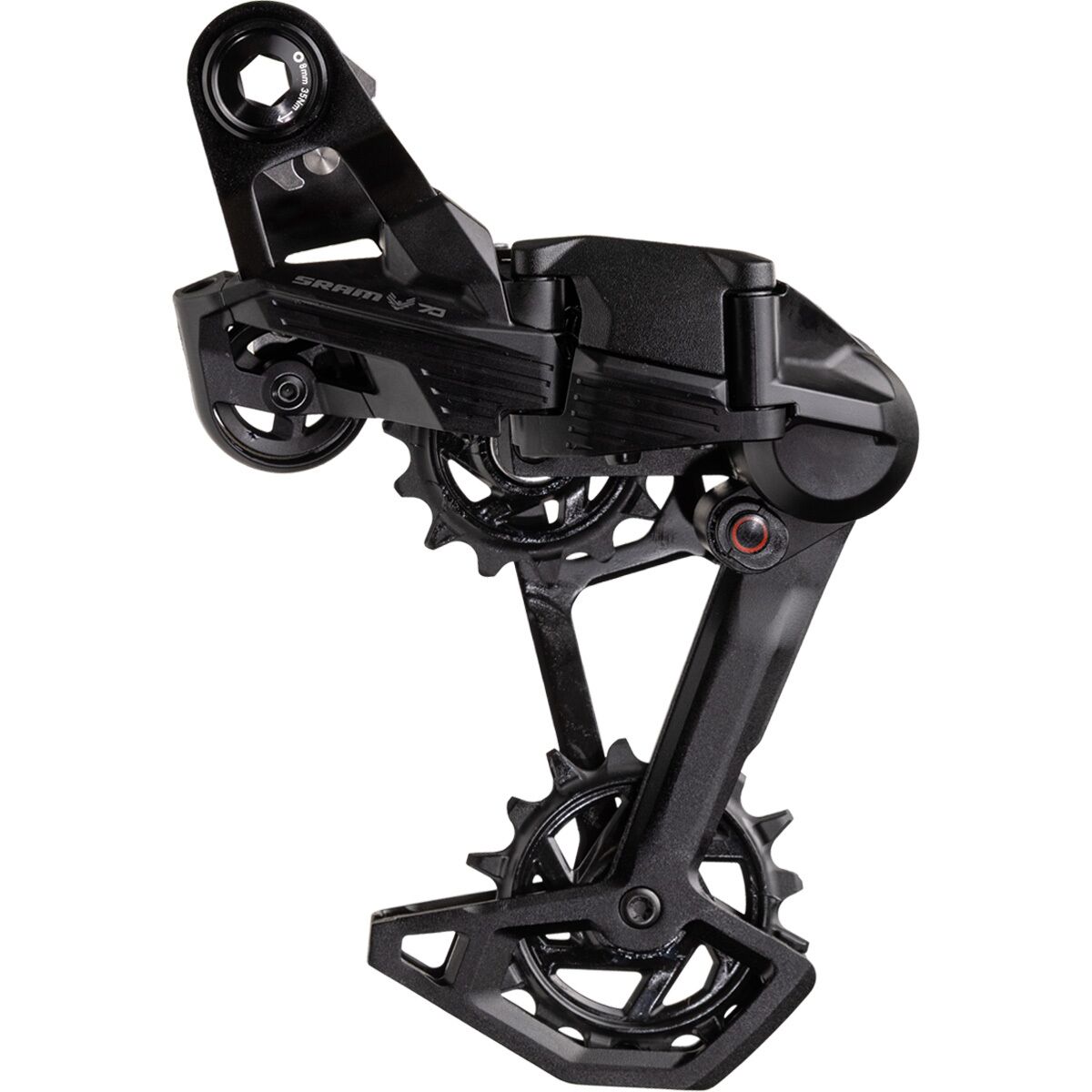

SRAM Eagle 70 T-Type 12-Speed Mechanical Rear Derailleur One Color, Max 52t
Max 52t
Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Trek Slash+ 9.7 · Electric-assist · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon fiber · Fork: Fox Rhythm 38, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 170mm travel
Suspension
Evaluate the suspension →Archived: Fork: Fox Rhythm 38, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 170mm travel · Rear shock: Fox Performance Float X, 2-position damper, 230mm x 65mm
Drivetrain
Check drivetrain wear →Archived: Group: SRAM Eagle 70 T-Type, 12-speed · Shifters: SRAM Eagle 70, 12 speed · Rear derailleur: SRAM Eagle 70, T-Type · Crankset: SRAM EAGLE 70, 160mm length · Cassette: SRAM Eagle XS-1270, T-Type,10-52, 12 speed
Brakes
Inspect the brakes →Archived: Brakes: SRAM DB 8 4-piston hydraulic disc
Controls and contact points
Archived: Headset: 1-1/8'' threadless, sealed cartridge bearings · Handlebar: Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width · Stem: Bontrager Elite, 35mm, 0 degree, 35mm length · Saddle: Bontrager Verse P3, chromoly rails
E-bike system
Check the battery and electronics →Archived: Trek Slash+ 9.7 · electric-assist identification
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

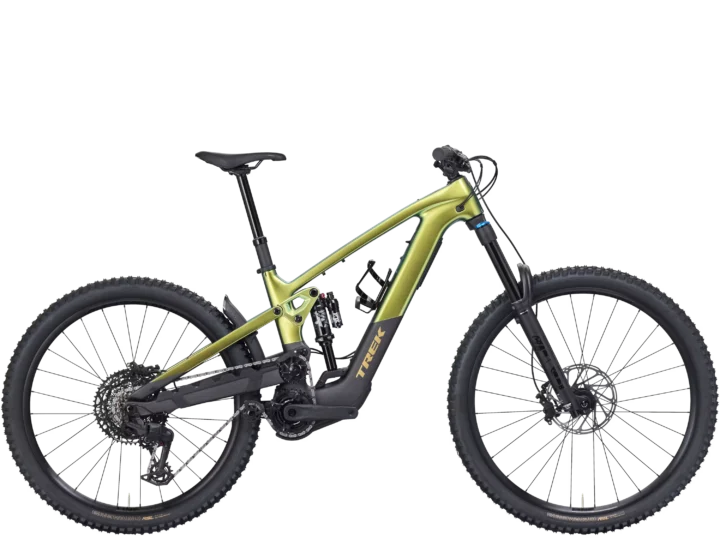

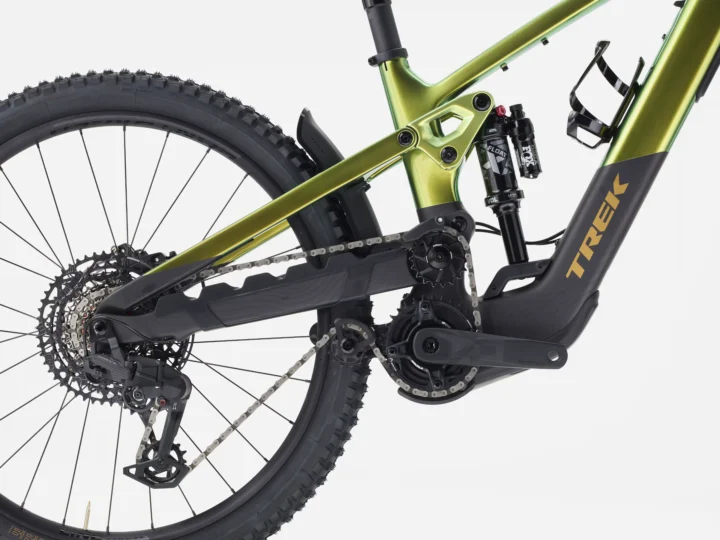

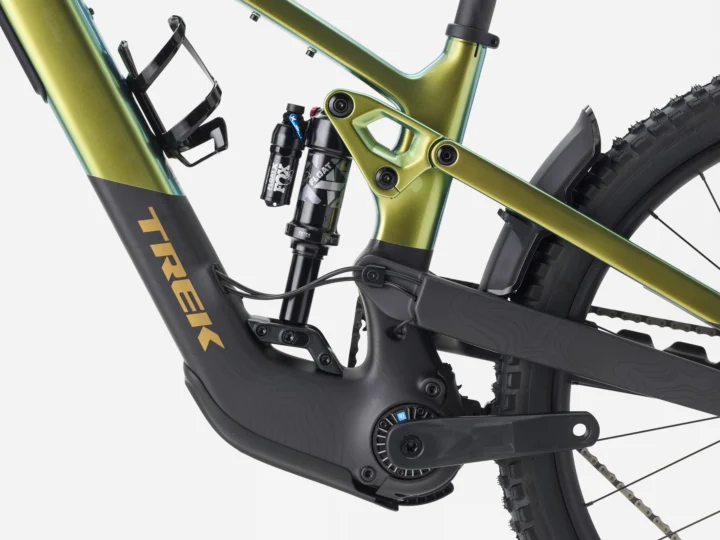

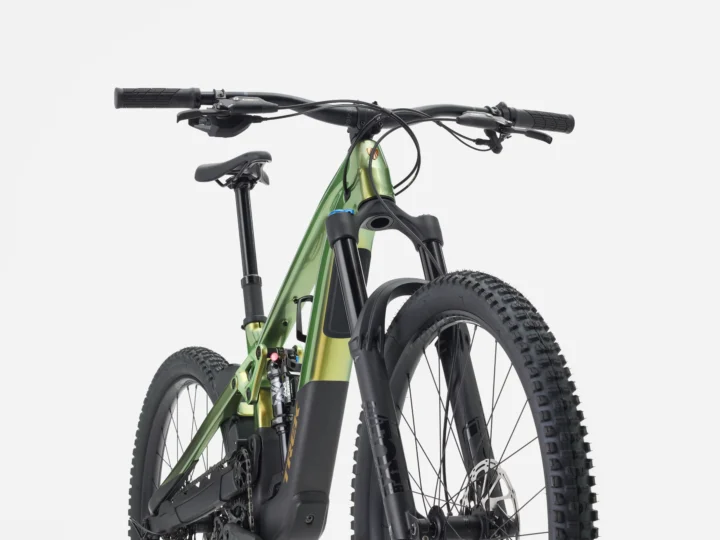

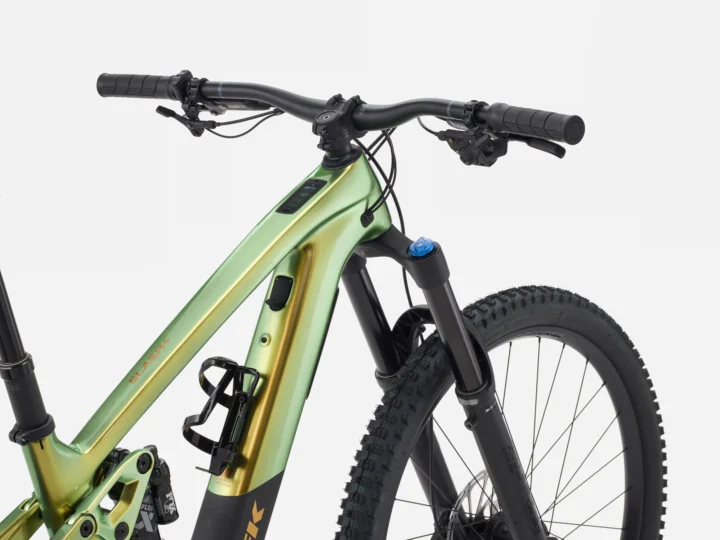

Gallery6 images
Checking current listings…
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
