2025 Trek Rail+ 9.9 X0 AXS T-Type Gen 5

Electric-assist bicycle from the Velopedia specification archive.

Share owner experience

Original MSRP: $9,999.93
Sizes: S; M; L; XL
Colors: Pennyflake
Weight: M - 23.98 kg / 52.87 lbs (with TLR sealant, no tubes)
Geometry: 8 manufacturer sizes
Archive ID: 900000780

Learn more about Trek →

Current market

Snapshot not yet available

Protected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.

Move, scroll, tap or type to start the protected update.

Have you owned this bike?Help preserve its real-world history by sharing your owner experience.

Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.

Display name Required Email address Required · private Ownership Required When or how long you owned it Required Frame size Required Primary type of riding Required Rider height Optional

Overall owner experience Required · at least 120 characters

Fit and sizing observations Optional Long-term strengths Optional Problems or recurring maintenance Optional Parts replaced or upgraded Optional What a used buyer should inspect Optional Would you own one again? Optional

After submitting, use the verification link sent to your email. Nothing appears publicly until Velopedia approves it.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

Frameset

Frame Construction	OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel
Frame Material	Carbon fiber
Fork	Rockshox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel

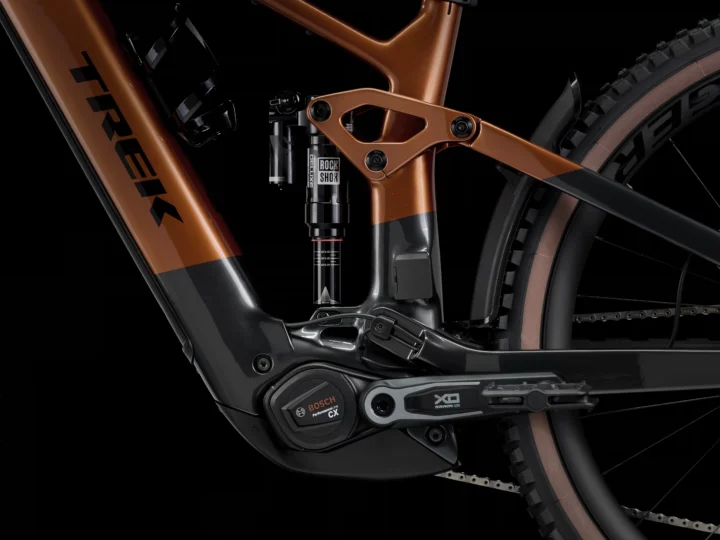

Rear Shock	RockShox Super Deluxe Ultimate RC2T, 205x65mm

Drivetrain

Component Group	SRAM X0 Eagle AXS
Shifters	SRAM AXS pod

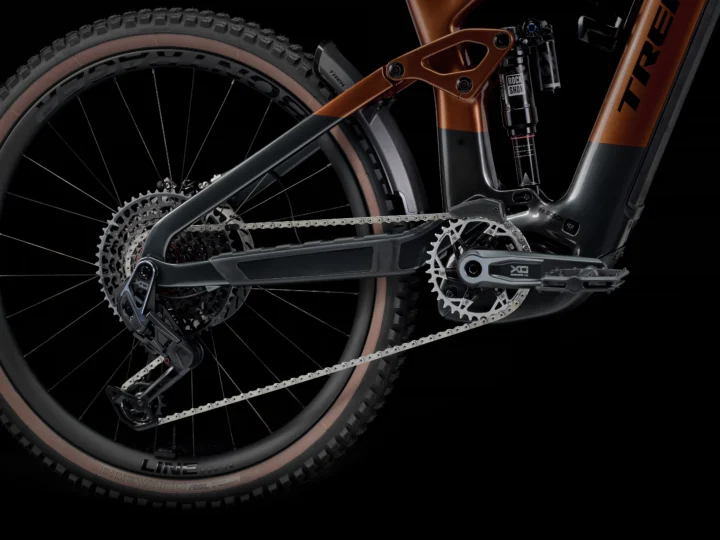

Rear Derailleur	SRAM X0 Eagle AXS, T-Type
Crankset	SRAM X0 Eagle, 160mm length
Cassette	SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Chain	SRAM X0 Eagle, T-Type, 12 speed
Pedals	Nylon platform

Brakes

Brakes	SRAM Maven Silver 4-piston hydraulic disc

Cockpit & Contact Points

Headset	1-1/8'' threadless, sealed cartridge bearings
Handlebar	Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Stem	Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	S: RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length / M, L, XL: RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length

Wheels & Tires

Wheels	(F) S: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' / M, L, XL: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' / (R) Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5''
Front Tire	S, M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50'' / M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50''
Rear Tire	S, M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50'' / M, L, XL: Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50''

Size-specific frame data

Geometry

8 sizes · 17 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	15.5" (S) · High	15.5" (S) · Low	17.5" (M) · High	17.5" (M) · Low	19.5" (L) · High	19.5" (L) · Low	21.5" (XL) · High	21.5" (XL) · Low
Seat tube	380 mm	380 mm	410 mm	410 mm	435 mm	435 mm	470 mm	470 mm
Effective top tube	562 mm	563 mm	591 mm	592 mm	638 mm	639 mm	669 mm	670 mm
Head tube	100 mm	100 mm	100 mm	100 mm	120 mm	120 mm	145 mm	145 mm
Head-tube angle	65°	64.5°	65°	64.5°	65°	64.5°	64.9°	64.5°
Seat-tube angle	77.9°	77.4°	77.7°	77.2°	77.5°	77°	77.4°	76.9°
Actual seat-tube angle	75.3°	74.8°	75.3°	74.8°	75.2°	74.8°	75.2°	74.8°
Chainstay / rear center	446 mm	448 mm	446 mm	448 mm	446 mm	448 mm	446 mm	448 mm
Wheelbase	1201 mm	1202 mm	1229 mm	1230 mm	1277 mm	1278 mm	1313 mm	1314 mm
Bottom-bracket drop	12 mm	18 mm	18 mm	24 mm	17 mm	24 mm	17 mm	24 mm
Bottom-bracket height	345 mm	339 mm	345 mm	339 mm	345 mm	339 mm	345 mm	339 mm
Reach	435 mm	430 mm	455 mm	450 mm	495 mm	490 mm	520 mm	515 mm
Stack	594 mm	598 mm	627 mm	631 mm	645 mm	649 mm	668 mm	672 mm
Standover height	763 mm	758 mm	775 mm	769 mm	775 mm	769 mm	798 mm	779 mm
Fork offset / rake	43 mm	43 mm	43 mm	43 mm	43 mm	43 mm	43 mm	43 mm
Front center	754 mm	754 mm	783 mm	783 mm	831 mm	831 mm	867 mm	867 mm
Trail	119 mm	122 mm	127 mm	131 mm	127 mm	131 mm	127 mm	131 mm
Wheel size	27.5"	27.5"	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"

Geometry source: Trek first-party OCC sizing data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
