Velopedia Bicycle Archive

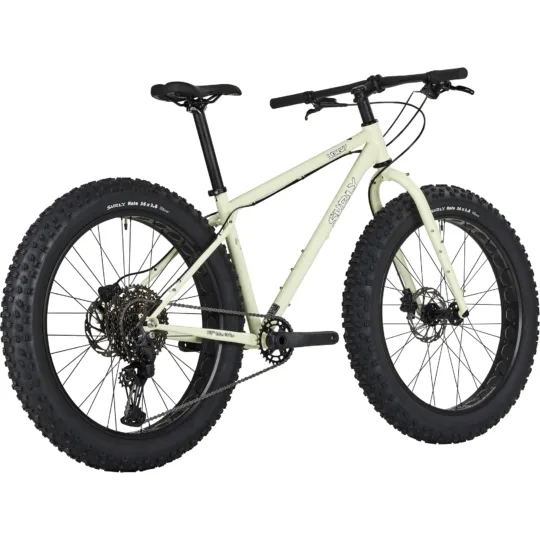

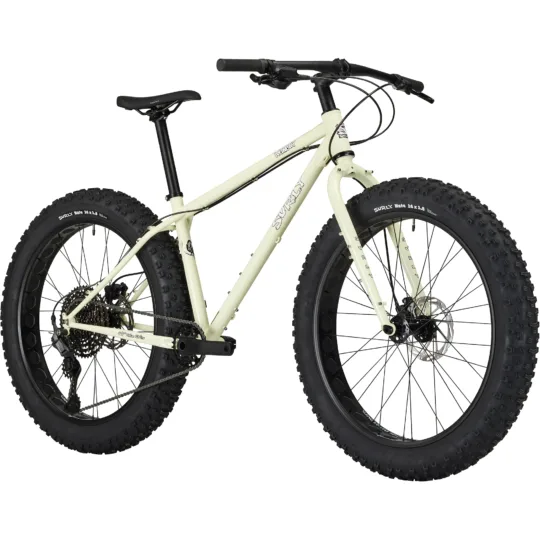

Surly Wednesday - Key Lime Sneeze

Mountain bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $1,849.00
Sizes: X-Small; Small; Medium; Large; X-Large
Colors: Key Lime Sneeze
Weight: 34 lb 7oz for Medium
Geometry: 5 manufacturer sizes
Archive ID: 900000572
Catalog verified: August 14, 2026

Current market

0 close matches

Observed used market No listingsNo close used matches in the latest snapshot.

New asking No listingsNo close matches in this condition.

View market details

Velopedia analysis

What the specifications mean

Derived from the archived manufacturer record

The calculated 455% cassette spread is a clearer measure of gearing breadth than the component-group name by itself. The nominal 26-inch label is not enough for replacement ordering because several incompatible bead-seat diameters have used that name. Tubeless-ready means the rims and tires are designed to support a tubeless setup; it does not confirm that the bike is currently set up without tubes. That still depends on the rim tape, valves, sealant and tire condition.

Gearing 455% cassette range Calculated from the published 11–50-tooth sprocket span.

Wheel standard Nominal 26 inch Confirm the ISO bead-seat diameter because several incompatible standards have used this name.

Tire setup Tubeless-ready The rims and tires may support tubeless use, but the bike may still be running tubes.

Frame inspection Steel Paint damage and moisture entry matter because corrosion can start externally or inside the frame.

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.
DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 11-speed system.
Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.
BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.
Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.

This interpretation explains relationships in the published data. Confirm exact standards and dimensions before ordering parts or performing service.

Frameset

Frame Construction	Surly Wednesday, 100% Surly 4130 Chromoly steel. 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Frame Material	Steel
Fork	Surly Wednesday, 100% Surly 4130 Chromoly steel. 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Material	Steel

Drivetrain

Shifters	Shimano Cues U6000
Front Derailleur	N/A
Rear Derailleur	Shimano Cues U6000 GS
Crankset	Samox, 30T
Bottom Bracket	Samox BSA
Cassette	Shimano Cues LG400, 11-50t, 11spd
Chain	KMC Cues eGlide Anti-Rust EPT

Brakes

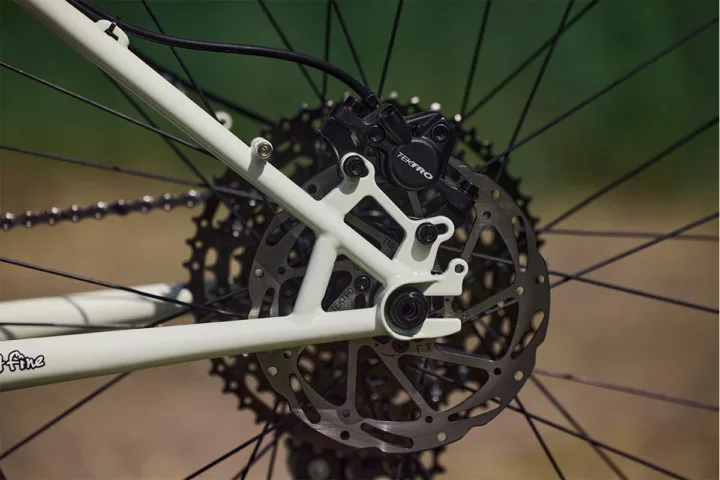

Brakes	Brake Calipers: Tektro HD-M275/276, 2 piston; Brake Levers: Tektro HD-M275/276; Rotors: Tektro 160/160, 6-bolt

Cockpit & Contact Points

Headset	FSA Orbit ITA
Stem	Promax, 31.8mm
Saddle	WTB Volt Medium
Seatpost	Promax, 30.9mm, 0 offset

Wheels & Tires

Hubs	(F) Novatec 15 x 150mm, 32h, 6-bolt / (R) Novatec 12 x 177mm, 32h, 6-bolt
Rims	Surly My Other Brother Darryl
Spokes	14G Black
Front Tire	Surly Nate 26 x 3.8", 60tpi, tubeless ready
Rear Tire	Surly Nate 26 x 3.8", 60tpi, tubeless ready
Wheel Size	26"

Size-specific frame data

Geometry

5 sizes · 16 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	X-Small	Small	Medium	Large	X-Large
Seat tube	316 mm	366 mm	416 mm	466 mm	516 mm
Effective top tube	570 mm	590 mm	610 mm	630 mm	650 mm
Head tube	95 mm	100 mm	110 mm	120 mm	130 mm
Head-tube angle	69°	69°	69°	69°	69°
Seat-tube angle	73.5°	73.5°	73.5°	73.5°	73.5°
Chainstay / rear center	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1081 mm	1101 mm	1122 mm	1143 mm	1164 mm
Bottom-bracket drop	55 mm	55 mm	55 mm	55 mm	55 mm
Reach	400 mm	420 mm	436 mm	453 mm	471 mm
Stack	573 mm	578 mm	587 mm	597 mm	606 mm
Standover height	711 mm	737 mm	774 mm	807 mm	841 mm
Fork offset / rake	47 mm	47 mm	47 mm	47 mm	47 mm
Fork length / axle-to-crown	468 mm	468 mm	468 mm	468 mm	468 mm
Crank length	165 mm	165 mm	170 mm	170 mm	170 mm
Stem length	60 mm	60 mm	70 mm	70 mm	80 mm
Handlebar width	700 mm	700 mm	750 mm	750 mm	750 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
