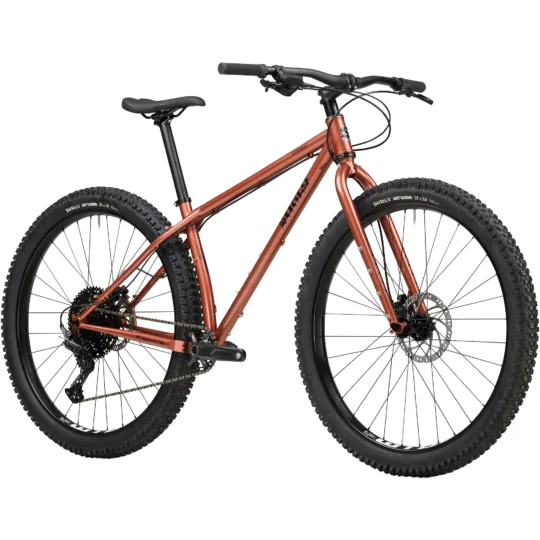

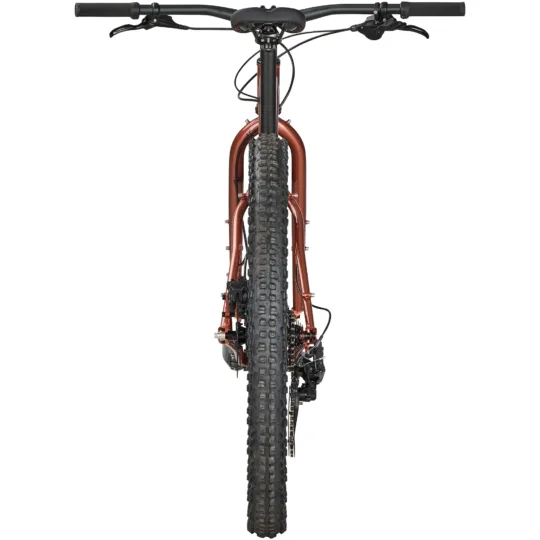

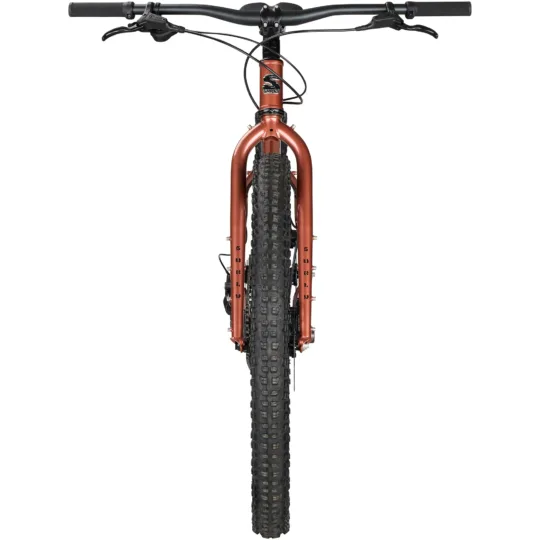

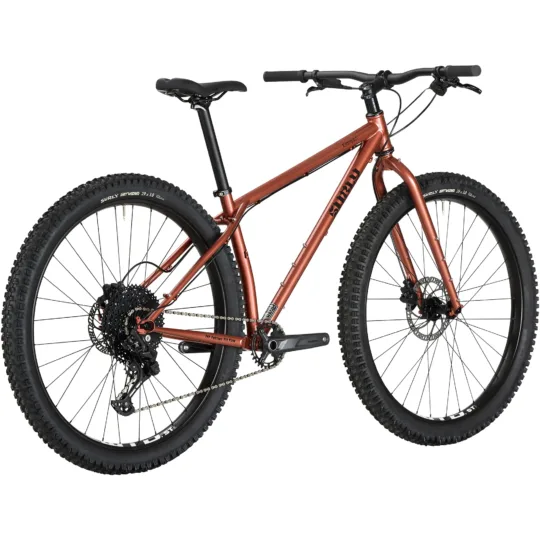

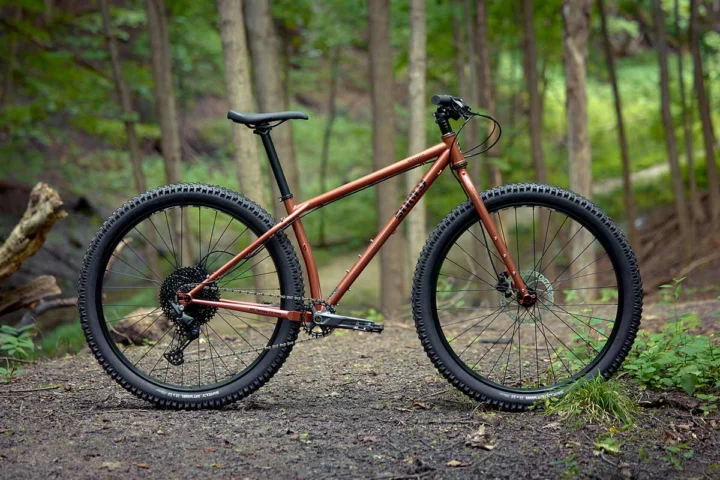

Surly Krampus Rigid - Chester Copperpot
Mountain bicycle from the Velopedia specification archive.
- Model year
- Not published by manufacturer
- Original MSRP
- $1,999.00
- Sizes
- S, M, L, XL
- Colors
- Chester Copperpot
- Weight
- 32 lb. 13 oz. for Medium
- Geometry
- 4 manufacturer sizes · Ride analysis
- Archive ID
- 900000887
- Catalog verified
- August 19, 2026
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The 464% cassette range describes the available gearing more clearly than the component-group name alone. The rims and tires are tubeless-ready, but that label does not confirm the bike is currently set up without tubes; tape, valves, sealant and tire condition still matter. On the steel frame, paint damage and moisture entry deserve attention because corrosion can begin at scratches, vent holes or internal surfaces.
Gearing
464% cassette range
Calculated from the published 11–51-tooth sprocket span.
Tire setup
Tubeless-ready
The rims and tires may support tubeless use, but the bike may still be running tubes.
Frame material
Steel
Paint damage and moisture entry matter because corrosion can start externally or inside the frame.
Wheel standard
29 in · 622 mm
Rim width and frame or fork clearance remain important beyond nominal diameter.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: Surly Krampus Rigid - Chester Copperpot · Mountain · Published sizes: S, M, L, XL
Frame and fork

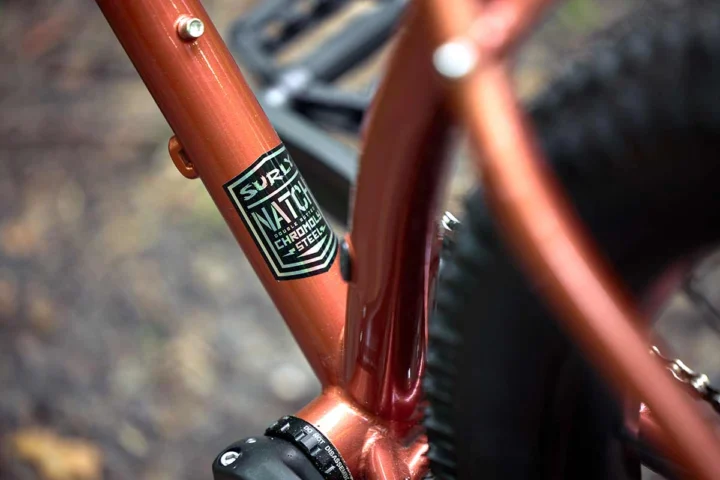

Inspect the frame and fork →Archived: Frame: Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated · Fork: Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated · Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano M6100 Deore · Rear derailleur: Shimano M6100 Deore SGS · Crankset: Shimano MT511, 30T · Bottom bracket: Shimano MT501, BSA · Cassette: SunRace CSMZ800, 11-51t, 12-spd · Chain: KMC X12 Anti-Rust
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Tektro HD-M275; Brake Levers: Tektro HD-M275; Rotors: Tektro 180/160, 6-Bolt
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" · Rims: WTB ST i40 TCS 2.0 · Hubs: (F) Novatec 15x110mm, 32h, 6-bolt / (R) Novatec 12x148mm, 32h, 6-bolt · Front tire: Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready · Rear tire: Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready
Controls and contact points
Archived: Headset: Cane Creek · Handlebar: Salsa Rustler 31.8 · Stem: ProMax 31.8mm · Seatpost: Promax 30.9mm, 400mm · Saddle: WTB Volt
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated |
|---|---|
| Frame Material | Steel |
| Fork | Surly Krampus - 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated |
| Fork Material | Steel |
Drivetrain
| Shifters | Shimano M6100 Deore |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | Shimano M6100 Deore SGS |
| Crankset | Shimano MT511, 30T |
| Bottom Bracket | Shimano MT501, BSA |
| Cassette | SunRace CSMZ800, 11-51t, 12-spd |
| Chain | KMC X12 Anti-Rust |
Brakes
| Brakes | Brake Calipers: Tektro HD-M275; Brake Levers: Tektro HD-M275; Rotors: Tektro 180/160, 6-Bolt |
|---|
Cockpit & Contact Points
| Headset | Cane Creek |
|---|---|
| Handlebar | Salsa Rustler 31.8 |
| Stem | ProMax 31.8mm |
| Saddle | WTB Volt |
| Seatpost | Promax 30.9mm, 400mm |
Wheels & Tires
| Hubs | (F) Novatec 15x110mm, 32h, 6-bolt / (R) Novatec 12x148mm, 32h, 6-bolt |
|---|---|
| Rims | WTB ST i40 TCS 2.0 |
| Spokes | 14G Black |
| Front Tire | Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready |
| Rear Tire | Surly Dirt Wizard 29 x 3", 60tpi, Tubeless Ready |
| Wheel Size | 29" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat tube | 368 mm | 419 mm | 470 mm | 521 mm |
| Effective top tube | 585 mm | 610 mm | 635 mm | 660 mm |
| Head tube | 90 mm | 100 mm | 110 mm | 120 mm |
| Head-tube angle | 69° | 69° | 69° | 69° |
| Seat-tube angle | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1087 mm | 1113 mm | 1138 mm | 1164 mm |
| Bottom-bracket drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Reach | 404 mm | 426 mm | 448 mm | 470 mm |
| Stack | 593 mm | 602 mm | 612 mm | 621 mm |
| Standover height | 770 mm | 797 mm | 825 mm | 853 mm |
| Fork offset / rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Fork length / axle-to-crown | 483 mm | 483 mm | 483 mm | 483 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 70 mm | 70 mm | 70 mm | 80 mm |
| Handlebar width | 750 mm | 800 mm | 800 mm | 800 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
Small geometry
Riding position
The 593 mm stack is tall relative to the 404 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. The 73° effective seat angle is comparatively relaxed for a modern mountain bike, placing the seated position farther behind the bottom bracket than a steep climbing-oriented layout.
Handling tendencies
A 69° head angle combined with a 1087 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Medium geometry
Riding position
The 602 mm stack is tall relative to the 426 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. The 73° effective seat angle is comparatively relaxed for a modern mountain bike, placing the seated position farther behind the bottom bracket than a steep climbing-oriented layout.
Handling tendencies
A 69° head angle combined with a 1113 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Large geometry
Riding position
A 448 mm reach paired with 612 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. The 73° effective seat angle is comparatively relaxed for a modern mountain bike, placing the seated position farther behind the bottom bracket than a steep climbing-oriented layout.
Handling tendencies
A 69° head angle combined with a 1138 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
X-Large geometry
Riding position
A 470 mm reach paired with 621 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. The 73° effective seat angle is comparatively relaxed for a modern mountain bike, placing the seated position farther behind the bottom bracket than a steep climbing-oriented layout.
Handling tendencies
A 69° head angle combined with a 1164 mm wheelbase points to quicker-steering and more responsive steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Across the size range
From Small to X-Large, reach grows by 66 mm and stack by 28 mm, showing how the frame becomes both longer and taller through the published size range. The rear center stays essentially constant at about 435 mm across sizes, so most of the wheelbase growth happens in the front half of the bike rather than by lengthening the rear triangle.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
