2027 Specialized S-Works Crux 5
Original manufacturer specifications including 7.1 kg (15 lb, 10.4 oz) published weight, geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Gravel & Cyclocross
- Original MSRP
- $13,999.99
- Sizes
- 49, 52, 54, 56, 58, 61
- Colors
- Fjord Silver
- Weight
- 7.1 kg (15 lb, 10.4 oz)
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 18 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900001038
Frameset
| Frame Construction | S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | SRAM RED AXS E1, hydraulic disc |
|---|---|
| Rear Derailleur | SRAM RED AXS XPLR E1, 13-speed |
| Crankset | SRAM RED XPLR E1, Quarq power meter, 40t |
| Bottom Bracket | Ceramic Speed BB Alpha, BSA DUB |
| Cassette | SRAM RED XPLR E1, 13-speed, 10-46t |
| Chain | SRAM RED E1 |
Brakes
| Brakes | (F) SRAM RED E1, hydraulic disc / (R) SRAM RED E1, hydraulic disc |
|---|
Cockpit & Contact Points
| Handlebar | Roval Terra Cockpit, Integrated Bar/Stem |
|---|---|
| Saddle | S-Works Power with Mirror |
| Seatpost | S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp |
Wheels & Tires
| Wheels | (F) Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces / (R) Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces |
|---|---|
| Front Tire | Pathfinder 700x45, Tubeless Ready |
| Rear Tire | Pathfinder 700x45, Tubeless Ready |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Seat tube | 445 mm | 456 mm | 473 mm | 497 mm | 515 mm | 545 mm |
| Effective top tube | 512 mm | 534 mm | 543 mm | 566 mm | 583 mm | 603 mm |
| Head tube | 95 mm | 110 mm | 125 mm | 142 mm | 163 mm | 188 mm |
| Head-tube angle | 70.5° | 70.75° | 71° | 71.5° | 71.5° | 71.5° |
| Seat-tube angle | 75.5° | 74.5° | 74.5° | 74° | 74° | 74° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1008 mm | 1016 mm | 1026 mm | 1039 mm | 1057 mm | 1078 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Bottom-bracket height | 278 mm | 278 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Reach | 375 mm | 382 mm | 388 mm | 400 mm | 412 mm | 425 mm |
| Stack | 530 mm | 547 mm | 560 mm | 578 mm | 598 mm | 621 mm |
| Standover height | 753 mm | 766 mm | 781 mm | 803 mm | 823 mm | 849 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Front center | 594 mm | 604 mm | 613 mm | 626 mm | 644 mm | 665 mm |
| Trail | 72 mm | 71 mm | 69 mm | 66 mm | 66 mm | 66 mm |
| Fork length / axle-to-crown | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm |
| Stem length | 75 mm | 90 mm | 90 mm | 100 mm | 100 mm | 100 mm |
| Handlebar width | 380 mm | 380 mm | 400 mm | 400 mm | 420 mm | 420 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
49 geometry
Archive context: The seat angle of 75.5° sits toward the steeper end. Its stack of 530 mm sits toward the lower end. Its wheelbase of 1008 mm sits toward the shorter end.
Compared with 71 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 49 geometry 52 geometry
Archive context: Its stack of 547 mm sits toward the lower end. The seat angle of 74.5° sits toward the steeper end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end.
Compared with 84 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: The seat angle of 74.5° sits toward the steeper end. Its stack of 560 mm sits toward the lower end. The chainstay of 425 mm sits somewhat shorter than typical.
Compared with 84 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: Its stack of 578 mm sits toward the lower end. The seat angle of 74° sits toward the steeper end. Its wheelbase of 1039 mm sits somewhat shorter than typical.
Compared with 60 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: Its stack of 598 mm sits toward the lower end. The seat angle of 74° sits toward the steeper end. Its wheelbase of 1057 mm sits somewhat shorter than typical.
Compared with 65 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 61 geometry
Archive context: Its reach of 425 mm sits toward the longer end. The seat angle of 74° sits toward the steeper end. Its stack of 621 mm sits toward the lower end.
Compared with 19 distinct cyclocross/gravel geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 61 geometry Parts & serviceability
Find replacement parts
SRAM RED E1
Interpreted as SRAM RED · 13-speed Named component · published drivetrain speed — verify exact version
SRAM RED XPLR E1, 13-speed, 10-46t
Interpreted as SRAM RED · 13-speed Component family — verify exact version
SRAM RED XPLR E1, Quarq power meter, 40t
Component family — verify exact version
More qualified parts (2)
SRAM RED AXS XPLR E1, 13-speed
Interpreted as SRAM RED · 13-speed · electronic Component family — verify exact version
SRAM RED AXS E1, hydraulic disc
Interpreted as SRAM RED · 13-speed · electronic Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Specialized S-Works Crux 5 · Cyclocross/Gravel · Published sizes: 49, 52, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout · Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM RED AXS E1, hydraulic disc · Rear derailleur: SRAM RED AXS XPLR E1, 13-speed · Crankset: SRAM RED XPLR E1, Quarq power meter, 40t · Bottom bracket: Ceramic Speed BB Alpha, BSA DUB · Cassette: SRAM RED XPLR E1, 13-speed, 10-46t · Chain: SRAM RED E1
Brakes
Inspect the brakes →Archived: Brakes: (F) SRAM RED E1, hydraulic disc / (R) SRAM RED E1, hydraulic disc
Wheels and tires
Check wheels and tires →Archived: Front tire: Pathfinder 700x45, Tubeless Ready · Rear tire: Pathfinder 700x45, Tubeless Ready
Controls and contact points
Archived: Handlebar: Roval Terra Cockpit, Integrated Bar/Stem · Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp · Saddle: S-Works Power with Mirror
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

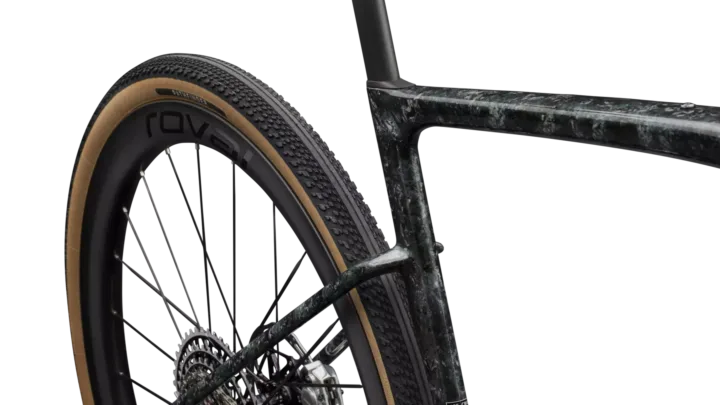

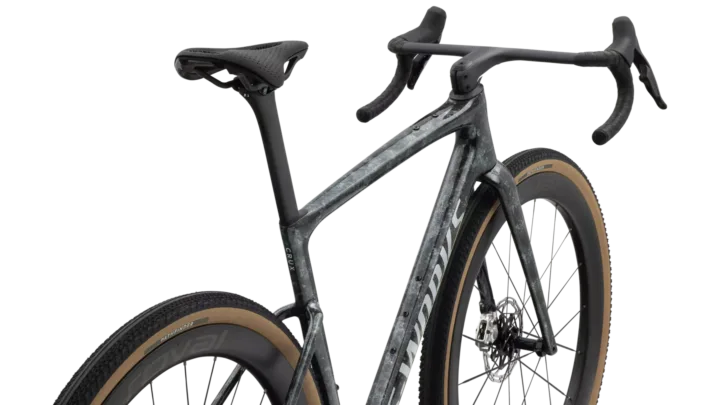

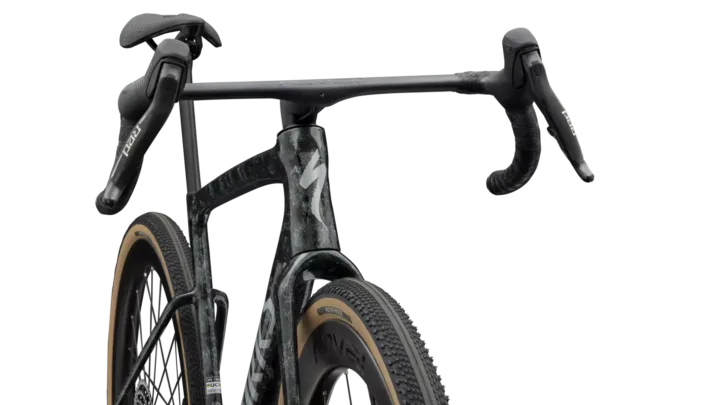

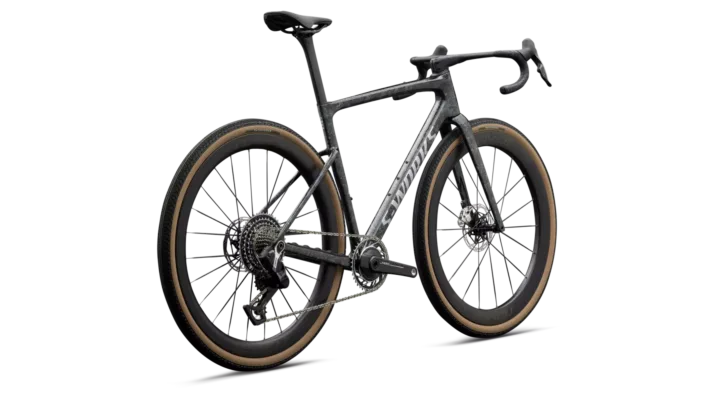

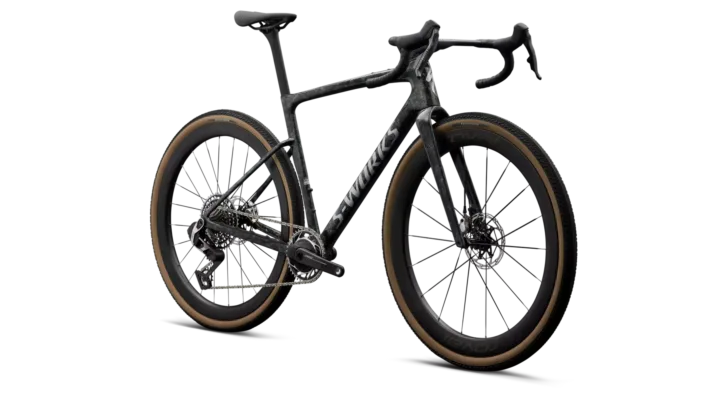

Gallery
