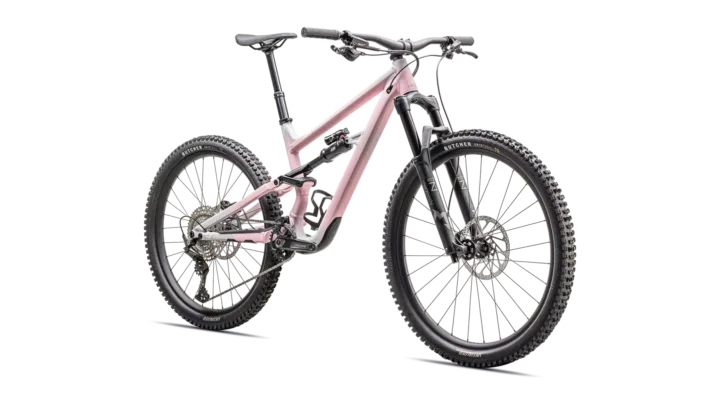

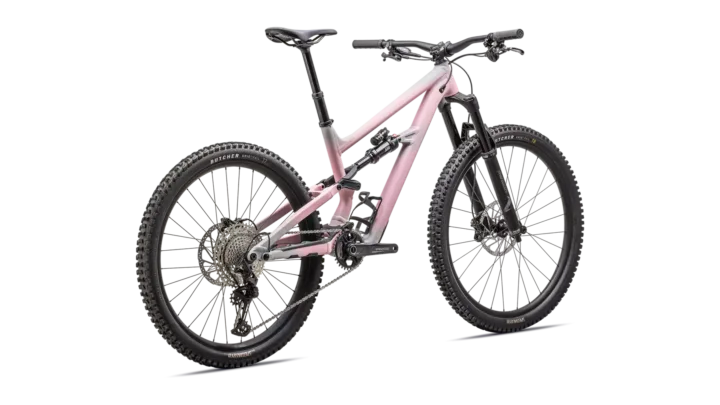

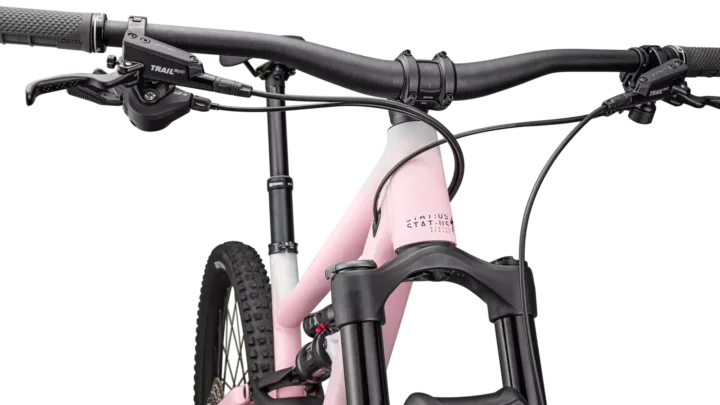

2023 Specialized STATUS 2 140 - Satin Cool Grey / Desert Rose / Black
Mountain bicycle from the Velopedia specification archive.
- Original MSRP
- $2,499.99
- Sizes
- S1, S2, S3, S4, S5
- Colors
- Satin Cool Grey / Desert Rose / Black, Satin Aluminum / Obsidian
- Weight
- 15.29 kg (33 lb, 11.3 oz)
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900001009
Recently checked market
0 close matches
Observed used market
No listingsNo close used matches in the latest snapshot.
New asking
No listingsNo close matches in this condition.
View market details Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Suspension at both ends means fork and shock setup should be considered together; mismatched sag or rebound can leave the front and rear reacting very differently. The mixed-wheel layout uses different front and rear diameters, so tires, tubes, rims and spare wheels are not interchangeable end to end. The 510% cassette range describes the available gearing more clearly than the component-group name alone.
Suspension setup
Front + rear
Fork and shock pressure, sag and rebound should be balanced and recorded independently.
Wheel system
Mixed 29 / 27.5
Front and rear tires, tubes, rims and spare wheels use different diameters.
Gearing
510% cassette range
Calculated from the published 10–51-tooth sprocket span.
Brake service
Hydraulic disc
Pad and rotor condition plus the correct bleed fluid are the primary service checks.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2023 Specialized STATUS 2 140 - Satin Cool Grey / Desert Rose / Black · Mountain · Published sizes: S1, S2, S3, S4, S5
Frame and fork
Inspect the frame and fork →Archived: Frame: M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel · Fork: Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel · Rear shock: Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Deore, M6100, I-Spec EV, 12 speed · Rear derailleur: Shimano Deore, M6100, 12pd, Shadow Plus · Crankset: Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm · Cassette: Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t · Chain: Shimano Deore M6100, 12spd
Brakes
Inspect the brakes →Archived: Brakes: (F) TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm / (R) TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Wheels and tires
Check wheels and tires →Archived: Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready · Hubs: (F) Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h / (R) Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h · Front tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" · Rear tire: Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Controls and contact points
Archived: Handlebar: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width · Stem: Alloy Trail Stem, 35mm bar bore · Seatpost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm · Saddle: Bridge Comp, Hollow Cr-mo rails, 143mm
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel |
|---|---|
| Frame Material | Aluminum |
| Fork | Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel |
| Rear Shock | Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm |
Drivetrain
| Shifters | Shimano Deore, M6100, I-Spec EV, 12 speed |
|---|---|
| Rear Derailleur | Shimano Deore, M6100, 12pd, Shadow Plus |
| Crankset | Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm |
| Cassette | Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
| Chain | Shimano Deore M6100, 12spd |
Brakes
| Brakes | (F) TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm / (R) TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |
|---|
Cockpit & Contact Points
| Handlebar | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width |
|---|---|
| Stem | Alloy Trail Stem, 35mm bar bore |
| Saddle | Bridge Comp, Hollow Cr-mo rails, 143mm |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm |
Wheels & Tires
| Hubs | (F) Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h / (R) Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
|---|---|
| Rims | Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3" |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S1 | S2 | S3 | S4 | S5 |
|---|---|---|---|---|---|
| Seat tube | 390 mm | 400 mm | 420 mm | 440 mm | 465 mm |
| Effective top tube | 549 mm | 590 mm | 630 mm | 671 mm | 711 mm |
| Head tube | 100 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Head-tube angle | 64° | 64° | 64° | 64° | 64° |
| Seat-tube angle | 77° | 77° | 77° | 77° | 77° |
| Chainstay / rear center | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm |
| Wheelbase | 1168 mm | 1195 mm | 1225 mm | 1259 mm | 1288 mm |
| Bottom-bracket drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Bottom-bracket height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Reach | 415 mm | 440 mm | 465 mm | 490 mm | 515 mm |
| Stack | 605 mm | 609 mm | 618 mm | 627 mm | 636 mm |
| Standover height | 735 mm | 735 mm | 739 mm | 743 mm | 747 mm |
| Fork offset / rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front center | 741 mm | 768 mm | 798 mm | 827 mm | 857 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm | 134 mm |
| Fork length / axle-to-crown | 551 mm | 551 mm | 551 mm | 551 mm | 551 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Handlebar width | 780 mm | 800 mm | 800 mm | 800 mm | 800 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
S1 geometry
Riding position
The 605 mm stack is tall relative to the 415 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64° head angle combined with a 1168 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 427 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Archive context
The head angle of 64° sits toward the slacker end. Its stack of 605 mm sits somewhat taller than typical. Its wheelbase of 1168 mm sits somewhat longer than typical.
S2 geometry
Riding position
A 440 mm reach paired with 609 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64° head angle combined with a 1195 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 427 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Archive context
Its trail of 134 mm sits toward the higher-trail end. The chainstay of 427 mm sits toward the shorter rear-center end. Its reach of 440 mm sits somewhat longer than typical.
S3 geometry
Riding position
A 465 mm reach paired with 618 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64° head angle combined with a 1225 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes. A 427 mm rear center is compact, which tends to make rear-wheel weight shifts and tight direction changes easier than a long-rear-center layout.
Archive context
Its reach of 465 mm sits toward the longer end. The chainstay of 427 mm sits toward the shorter rear-center end. Its trail of 134 mm sits toward the higher-trail end.
S4 geometry
Riding position
With 490 mm of reach and 627 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64° head angle combined with a 1259 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 490 mm sits toward the longer end. Its trail of 134 mm sits toward the higher-trail end. The seat angle of 77° sits somewhat steeper than typical.
S5 geometry
Riding position
With 515 mm of reach and 636 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit. Its 77° effective seat angle places the seated rider relatively forward, a layout that generally helps keep body weight centered on steep climbs.
Handling tendencies
A 64° head angle combined with a 1288 mm wheelbase points to strongly stability-oriented steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 515 mm sits toward the longer end. Its trail of 134 mm sits toward the higher-trail end. The chainstay of 432 mm sits somewhat shorter than typical.
Across the size range
From S1 to S5, reach grows by 100 mm and stack by 31 mm, showing how the frame becomes both longer and taller through the published size range. Chainstay length grows from 427 to 432 mm across the range. That size-specific rear-center strategy helps the larger frames grow at both ends instead of adding all of their length ahead of the bottom bracket.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
