Velopedia Bicycle Archive

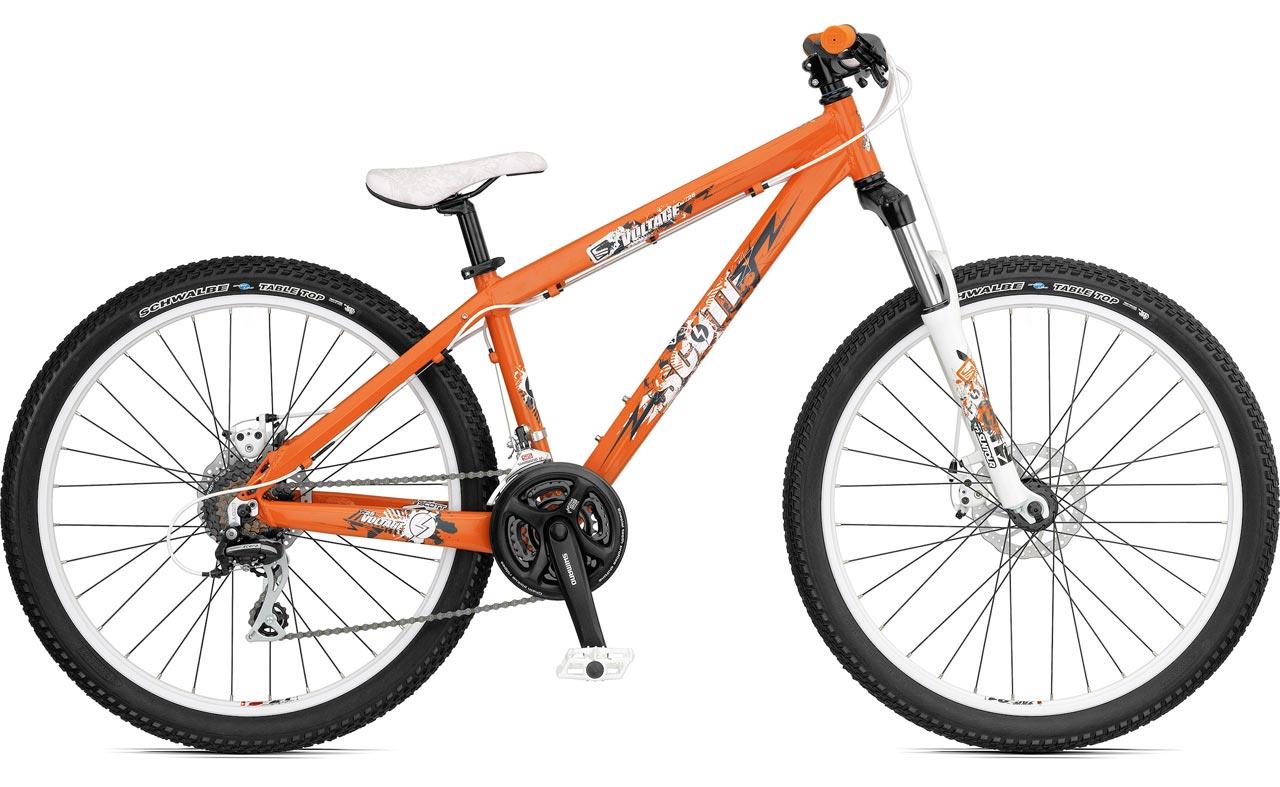

2010 Scott Voltage YZ 25
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $549.99
- Sizes
- XS, S, M, L, XL
- Colors
- Orange/White
- Weight
- 31.5
- Archive ID
- 20401
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Hydroformed Aluminum |
| Fork | Suntour XCM, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano ST-EF50 EZ-Fire Plus |
| Front Derailleur | Shimano FD-TY10, clamp on 31.8mm |
| Rear Derailleur | Shimano Acera RD-M360 |
| Crankset | Shimano FC-M191, 24/34/42 teeth |
| Bottom Bracket | Shimano UN-26, 123mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano CS-HG30 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z7 |
| Pedals | Xerama SP-102 |
Brakes
| Brakes | Tektro Aquila Mechanical Disc w/ 6" Rotor brakes, Shimano ST-EF50 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ritchey LB Plus |
|---|---|
| Handlebar | Promax OS- 3188 alloy 640mm wide/ 30mm rise |
| Handlebar Extensions | Not included |
| Stem | Scott Voltage forged BMX type 10-degree |
| Saddle | Scott Voltage DJ |
| Seatpost | Scott SP-102, BMX, 26.8mm diameter |
Wheels & Tires
| Hubs | Front: Formula DC-19, Rear: Formula DC-22 |
|---|---|
| Rims | Alesa Rigida ZaC 21, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 26 x 2.25" Schwalbe Table Top Sport |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
