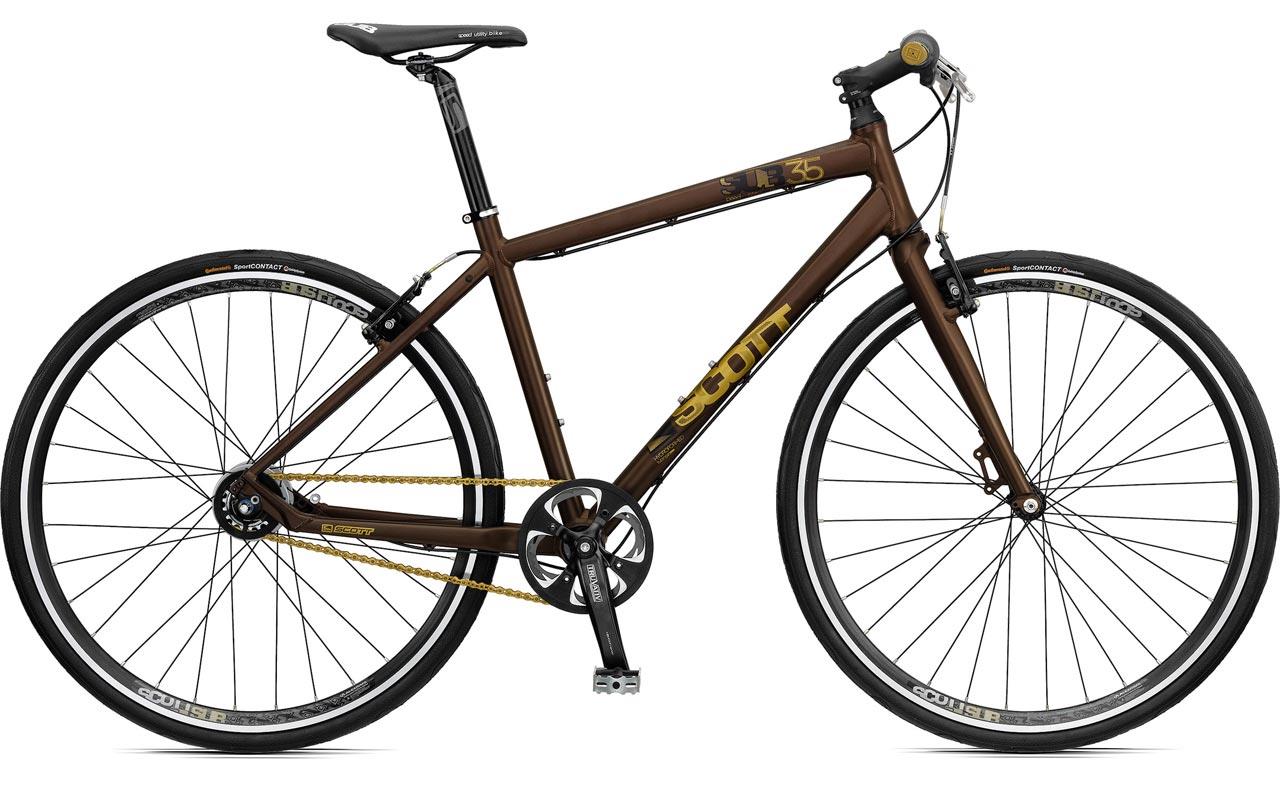

2010 Scott SUB 35 Nexus
City/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $729.99
- Sizes
- XS,S,M,L,XL
- Colors
- Brown
- Weight
- 25.77
- Archive ID
- 20310
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Scott hydroformed alloy w Evo D/O |
|---|
| Fork | Straight Blade |
|---|
| Fork Material | Alloy, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Commuter Mix |
|---|
| Shifters | Shimano Nexus Revo Shifter |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | TruVativ ISO Flow, 42 teeth |
|---|
| Bottom Bracket | Shimano UN-26, 113mm spindle |
|---|
| BB Shell Width | 68mm |
|---|
| Cassette | Shimano CS-S500 |
|---|
| Rear Cogs | 1-speed, 20 teeth |
|---|
| Chain | Shimano HG53 |
|---|
| Pedals | Wellgo 127 S |
|---|
Brakes
| Brakes | Tektro SCB-36A V-Brakes brakes, Shimano SL 65 Nexus levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated Ritchey Comp Logic Zero |
|---|
| Handlebar | Scott OS, 580mm 9-degree |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Scott Comp JD ST 66 OS |
|---|
| Saddle | Scott SUB SCT 19 |
|---|
| Seatpost | Scott Comp HL-209, 31.6mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Scott SCO 31, Rear: Shimano Nexus internal 8-speed |
|---|
| Rims | Front: Alex SUB, Rear: Aluex SUB, 32-hole |
|---|
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
|---|
| Front Tire | 700 x 32c Continental Sport Contact |
|---|
| Wheel Size | 700c wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
