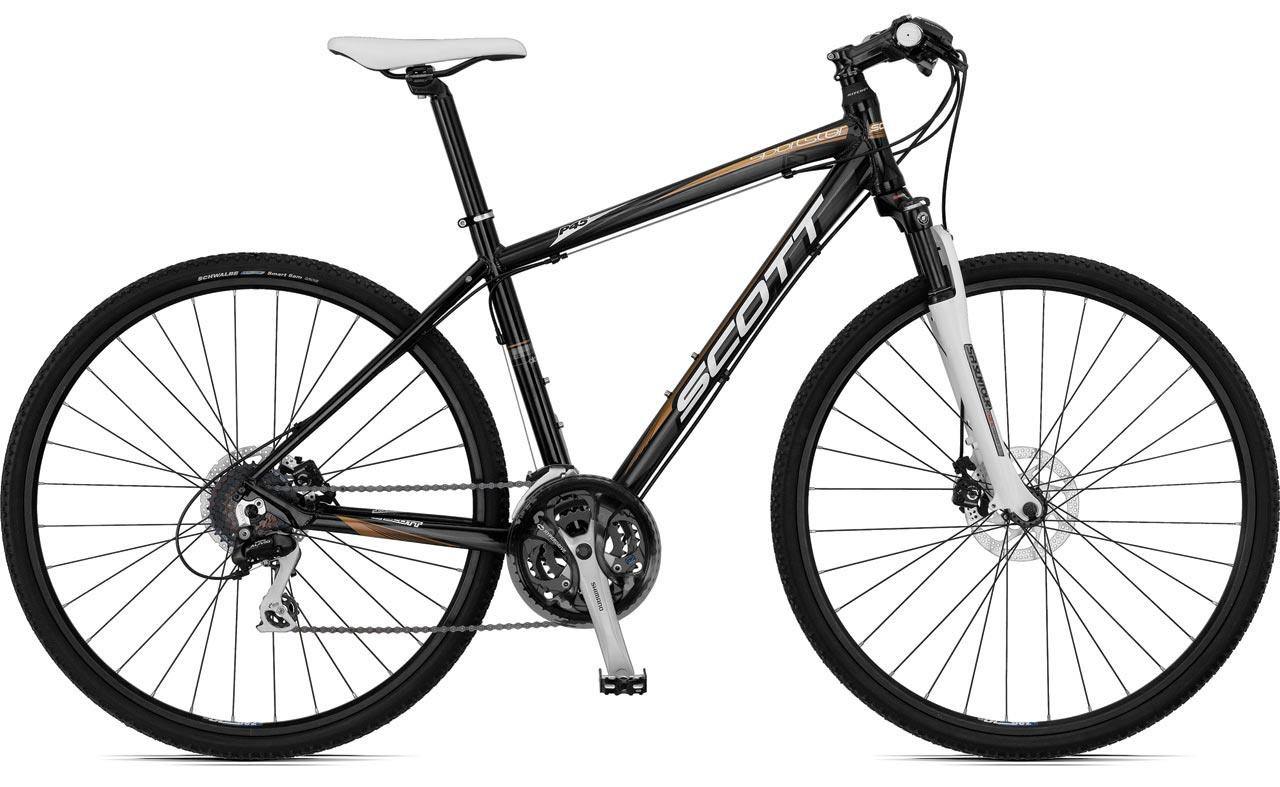

2010 Scott Sportster P45
City/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $649.99
- Sizes
- S,M,L,XL,XXL
- Colors
- Black/Gold/White
- Archive ID
- 20285
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | 6061 Alloy |
|---|
| Fork | Suntour NEX 4610 V2 HLO, 63mm travel |
|---|
| Fork Material | Single |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Commuter Mix |
|---|
| Shifters | Shimano ST-EF60 |
|---|
| Front Derailleur | Shimano Acera M360, clamp on 34.9mm |
|---|
| Rear Derailleur | Shimano Alivio RD-M410 |
|---|
| Crankset | Shimano FC-M631, 26/36/48 teeth |
|---|
| Bottom Bracket | Shimano BBUN26 |
|---|
| Cassette | Shimano HG30 |
|---|
| Rear Cogs | 8-speed, 11 - 32 teeth |
|---|
| Chain | KMC Z7 |
|---|
| Pedals | Xerama SP 931-A |
|---|
Brakes
| Brakes | Shimano BR-M416 Mechanical disc brakes, Shimano ST-EF60 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated Ritchey OE Logic Zero |
|---|
| Handlebar | Scott OS 580mm, 9° bend/Solution: 610mm, 15° bend |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Scott |
|---|
| Saddle | Scott Sportster |
|---|
| Seatpost | Scott, 31.6mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Formula CL-51, Rear: Shimano FH-RM 65 |
|---|
| Rims | Rigida ZAC 19 SL, 32-hole |
|---|
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
|---|
| Front Tire | 700 x 35c Schwable Smart Sam |
|---|
| Wheel Size | 700c wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
