Velopedia Bicycle Archive

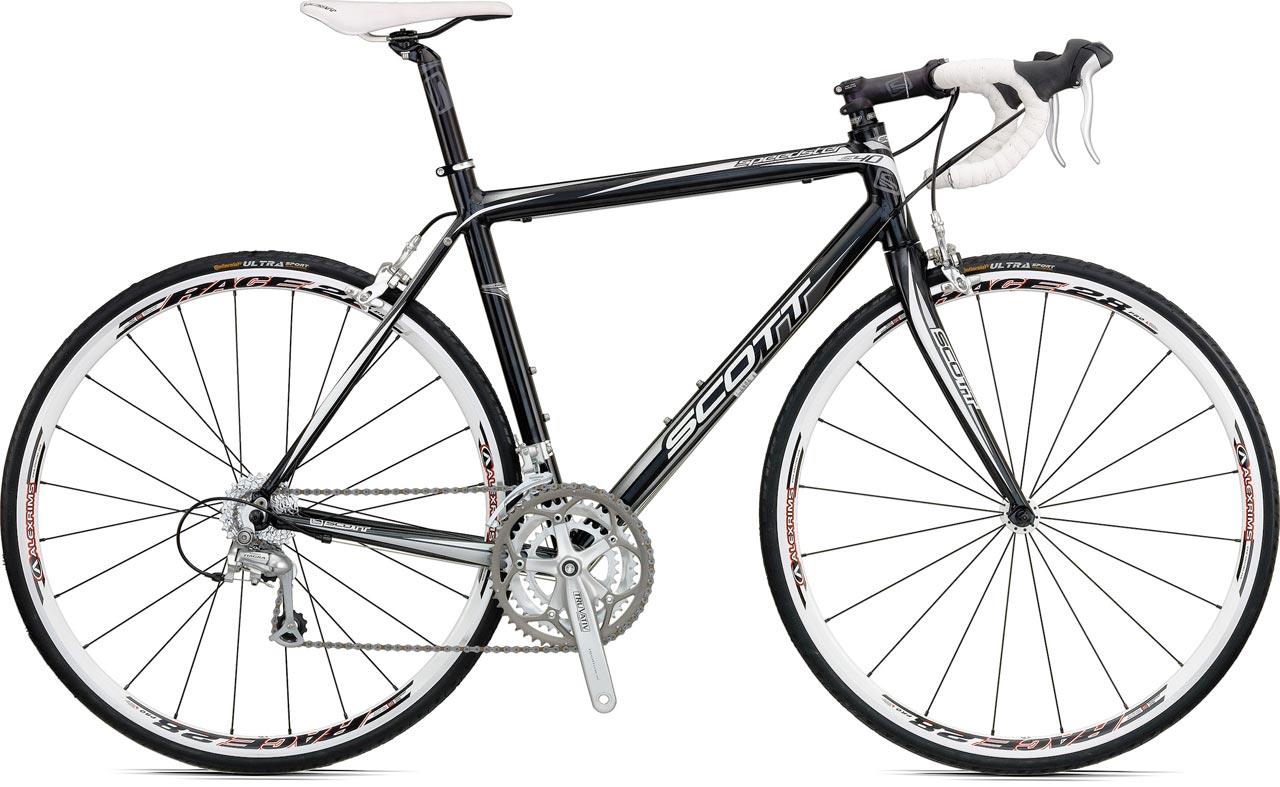

2010 Scott Speedster S40 CD
Road/sport bicycle from the Velopedia specification archive.
- Original MSRP
- $799.99
- Sizes
- XXS/47, XS/49, S/52, M/54, L/56, XL/58, XXL/61
- Colors
- Black
- Weight
- 20.48
- Archive ID
- 20426
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 Hydroformed Alloy |
| Fork | Scott Speedster |
| Fork Material | Carbon/Alloy Steerer |
| Rear Shock | N/A |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano Sora ST-3400 Dual Control STI |
| Front Derailleur | Shimano FD-2300, braze-on |
| Rear Derailleur | Shimano Tiagra RD-4500 |
| Crankset | Truvativ ISO Flow C 2.1, 34/50 teeth |
| Bottom Bracket | TruVativ 07BB, 108mm spindle |
| BB Shell Width | 68mm |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 26 teeth |
| Chain | Shimano CN-HG53 |
| Pedals | Not included |
Brakes
| Brakes | Scott Pro SCBR-520 brakes, Shimano Sora levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Steel Cup |
|---|---|
| Handlebar | Scott Road Drop Anatomic |
| Handlebar Extensions | Not included |
| Stem | Scott Road Team OS |
| Saddle | Scott Road Team |
| Seatpost | Scott Alloy, 31.6mm diameter |
Wheels & Tires
| Hubs | Scott Comp |
|---|---|
| Rims | Alex Race 28, 20-hole/24-hole |
| Spokes | 14ga. (2.0mm) straight gauge |
| Front Tire | 700 x 23c Continental Ultra Sport |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
