Velopedia Bicycle Archive

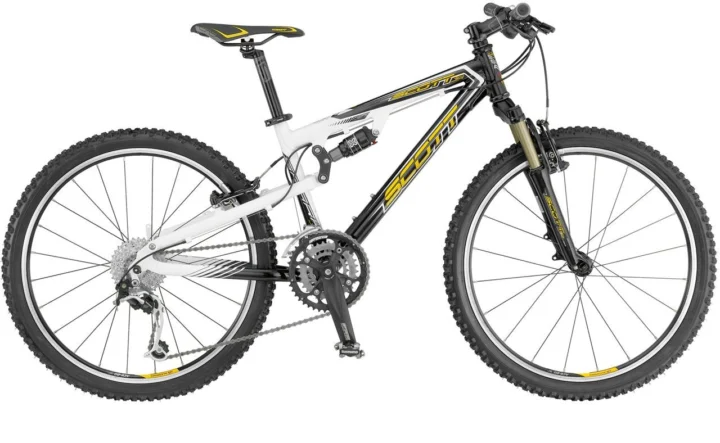

2010 Scott Spark RC JR
Juvenile mountain bike, suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,099.99
- Sizes
- 24"
- Colors
- Black/White/Yellow
- Weight
- 24.82
- Archive ID
- 20453
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Hydroformed Aluminum |
| Fork | Spinner Grind 2, 65mm travel |
| Fork Material | Single |
| Rear Shock | X Fusion air, 75mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore SL-M530 rapid fire plus 2 |
| Front Derailleur | Shimano Deore, clamp on |
| Rear Derailleur | Shimano XT RD-M772 Shadow |
| Crankset | FSA Alpha Drive 170mm, 22/32/44 teeth |
| Bottom Bracket | FSA BB 8420-AL PD |
| Cassette | Shimano XT |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Uniglide |
| Pedals | Shimano PD-M520 |
Brakes
| Brakes | Scott Pro brakes, Scott Kids Pro levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Scott VP |
|---|---|
| Handlebar | Scott RC 560mm |
| Handlebar Extensions | Not included |
| Stem | Scott RC 6-degree / 90mm |
| Saddle | Scott RC Cro-mo |
| Seatpost | Scott Comp, 26.8mm diameter |
Wheels & Tires
| Hubs | Scott RC |
|---|---|
| Rims | Alex SCE-20, 20-hole/24-hole |
| Spokes | Stainless steel, 15ga. (1.8mm) straight gauge |
| Front Tire | 24 x 1.95" CST-C-1023 66tpi Kevlar Bead |
| Wheel Size | 24" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
